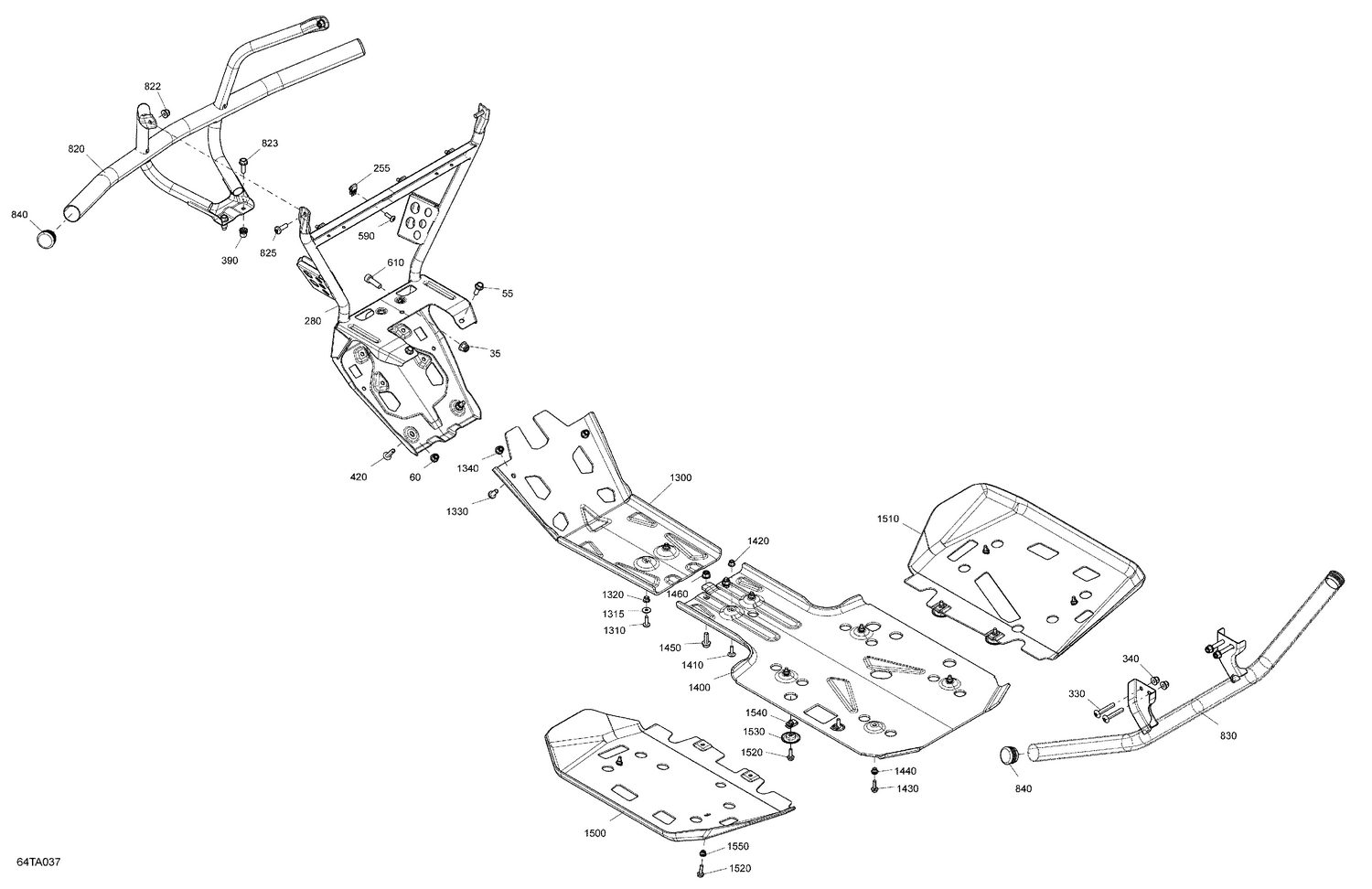

07- Body - Skid Plate - Mossy Oak Edition
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 233201434 | Hex. Flange Elastic Nut M10 |
| 55 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 255 | 250100198 | Panel Nut M6 X 1.0 |
| 280 | 705017337 | Front Frame This part replaces 705009256. |
| 330 | 250000761 | Torx Truss Screw M8 X 50 |
| 340 | 233281464 | Elastic Flange Nut M8 |
| 390 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 610 | 205003044 | Socket Screw M10 x 30 |
| 820 | 715001910 | Front Bumper kit |
| 822 | 233281464 | Elastic Flange Nut M8 |
| 823 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 825 | 250000898 | Pan Torx Screw M8 X 25 |
| 830 | 715001911 | Rear Bumper kit |
| 840 | 705202455 | Cap |
| 1300 | 705205019 | Front Skid Plate |
| 1310 | 250000712 | Torx Screw M6 X 20 |
| 1315 | 234062670 | Stainless Steel Flat Washer |
| 1320 | 233261434 | Flange Elastic Nut M6 |
| 1330 | 236282054 | Hex. Screw M8 X 20 |
| 1340 | 233281434 | Hex. Flange Elastic Nut M8 |
| 1400 | 705204031 | Central Skid Plate |
| 1410 | 207762044 | Carriage Bolt M6 X 20 |
| 1420 | 233261434 | Flange Elastic Nut M6 |
| 1430 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1440 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1450 | 207682534 | Hex. Flange Screw M8 X 25 |
| 1460 | 233281434 | Hex. Flange Elastic Nut M8 |
| 1500 | 705010659 | LH Skid Plate |
| 1510 | 705010660 | RH Skid Plate |
| 1520 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1530 | 705007171 | Cup |
| 1540 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
