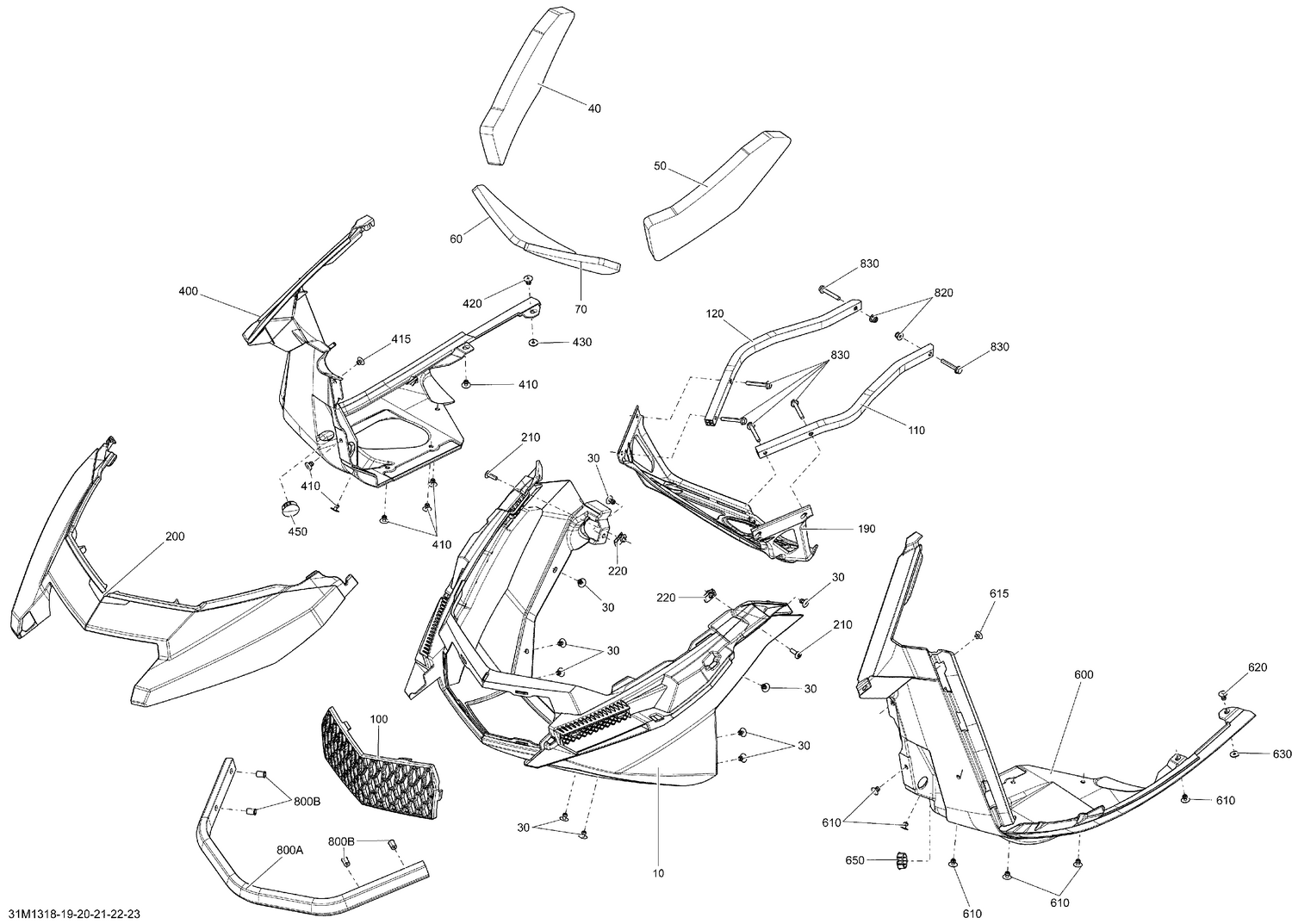

09- Bottom Pan
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502006873 | Deep Black Front Bottom Pan |
| 30 | 293150104 | Pop Rivet 3/16" |
| 40 | 502007217 | RH UPPER HULL FOAM - Call your local BRP dealership |
| 50 | 502007219 | LH UPPER HULL FOAM - Call your local BRP dealership |
| 60 | 502007220 | RH MIDDLE HULL FOAM - Call your local BRP dealership |
| 70 | 502007223 | LH MIDDLE HULL FOAM - Call your local BRP dealership |
| 100 | 502006887 | Botton Pan Grille |
| 110 | 502007357 | LH Support This part replaces 502006925. |
| 120 | 502006926 | RH Support |
| 190 | 502006938 | Bracket |
| 200 | 502006898 | Black Bottom Pan Cap |
| 210 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 220 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 400 | 502006877 | RH BOTTOM PAN - Call your local BRP dealership |
| 410 | 293150104 | Pop Rivet 3/16" |
| 415 | 293150103 | Pop Rivet 3/16" |
| 420 | 293150104 | Pop Rivet 3/16" |
| 430 | 517124300 | Washer |
| 450 | 414916600 | Black, Nylon Cap |
| 600 | 502006937 | LH BOTTOM PAN - Call your local BRP dealership |
| 610 | 293150104 | Pop Rivet 3/16" |
| 615 | 293150103 | Pop Rivet 3/16" |
| 620 | 293150104 | Pop Rivet 3/16" |
| 630 | 517124300 | Washer |
| 650 | 414916600 | Black, Nylon Cap |
| 800B | 293450275 | Insert This part replaces 415107300. |
| 820 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
