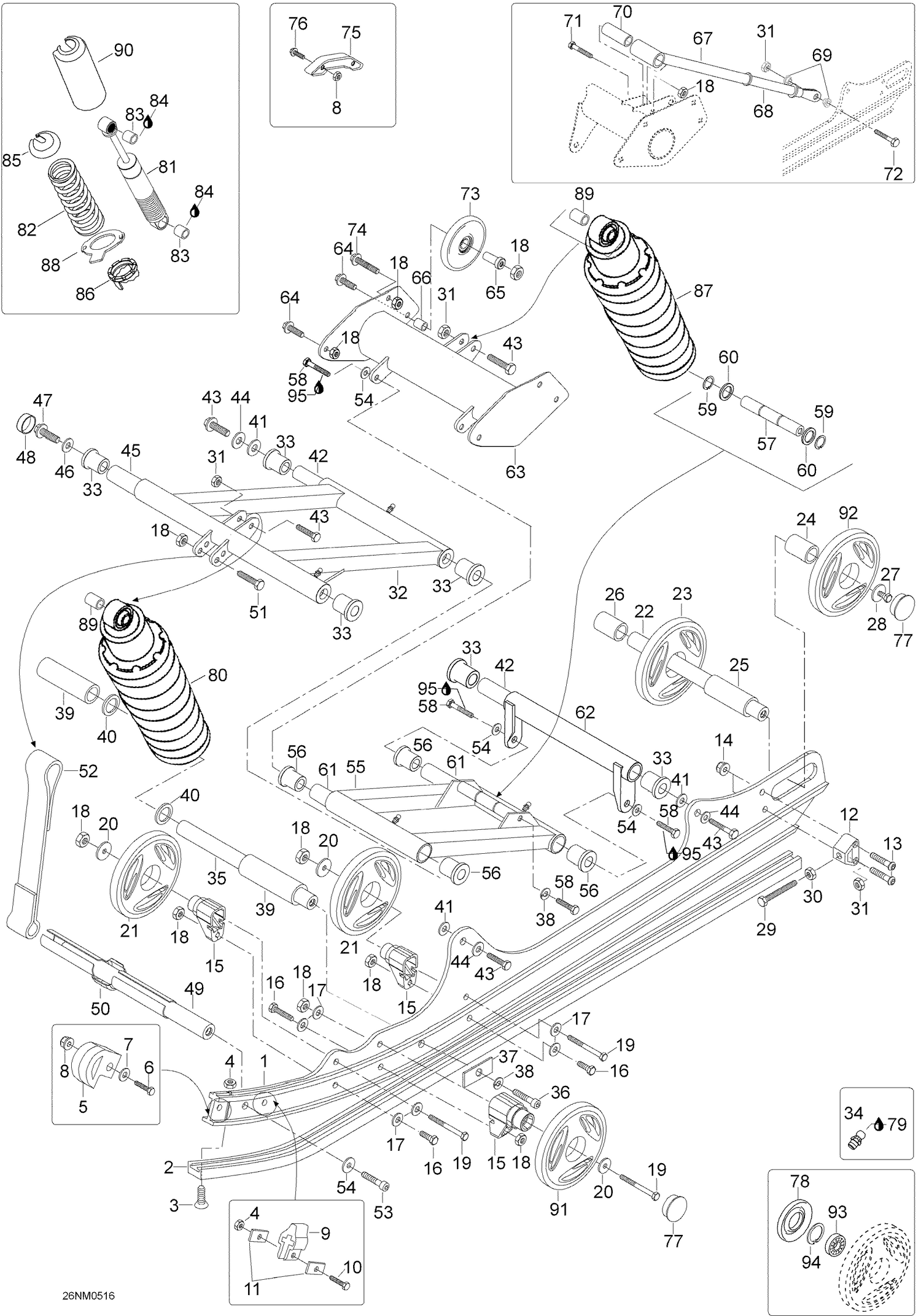

08- Rear Suspension

08- Rear Suspension

Parts (93)

RefPart NumberDescription
1 5246388 Runner
2 605355362 Slider shoe This part replaces 5347724.
3 40059 Socket head screw M6 x 60
4 33010 Lock Nut M6 (1=10Pcs)
5 605348954 Runner Protector
6 40031 He. screw M6 x 25
7 20003 Washer A6,4
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Hex. screw M6 x 30
11 548470 Washer
12 5341633 Tensioner
13 40392 Socket head screw M8 x 45
14 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
15 605450182 SUPPORT - Call your local BRP dealership
16 40037 Hex. screw M8 x 25
17 234081410 Flat Washer 8 mm This part replaces 20104.
18 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
19 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
20 503183100 Washer
21 503191029 Wheel 135
22 5341511 Rear shaft
23 503189478 Thin Wheel 165
24 5441512 Sleeve
25 5441513 Sleeve
26 5444099 Sleeve
27 40050 Hex. screw M10 x 35
28 503183300 Washer
29 40239 Screw M10 x 100
30 232006414 Hex. Nut M10 This part replaces 33004.
31 33012 Nut elastic M10
32 5145588 Welded front arm
33 31024 Cushion
34 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
35 5347633 Shaft, shock
36 40134 Screw Socket HD.DIN 912 This part replaces 40536.
37 5447940 Support plate
38 20068 Lock washer D10
39 5346649 Sleeve - Call your local BRP dealership
40 31013 Shim Ring
41 20116 Washer
42 5346900 Shaft
43 40016 Hex. screw M10 x 45
44 512056700 Lock Washer
45 5346135 Shaft
46 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
47 40243 Hex. screw M12 x 60
48 5448025 Cap
49 5343471 Shaft
50 605349381 Retainer for stopper strap - Call your local BRP dealership
51 207084544 Hex. Screw M8 X 45 This part replaces 40008.
52 605449385 Stopper strap
53 40134 Screw Socket HD.DIN 912
54 20105 Washer, hardened M10
55 605349313 Rear Arm Weld Light
56 31027 Cushion
57 605451897 REARSHOCK SHAFT - Call your local BRP dealership
58 40014 Hex. screw M10 x 40
59 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
60 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
61 5346865 SHAFT - Call your local BRP dealership
62 5345535 Pivot arm
63 605249274 Upper arm
64 40058 Locking screw M8 x 20
65 5447945 Sleeve
66 5447946 Sleeve
67 5347851 Pipe
69 5447853 SLIDE BEARING - Call your local BRP dealership
70 5447848 Bearing sleeve - Call your local BRP dealership
71 40011 Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership
72 40042 Hex. screw M10 x 35
73 46027 Idler Wheel - Call your local BRP dealership
74 40150 Locking screw M8 x 90
75 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
76 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
77 570063600 Wheel Cap
78 572089000 LABYRINTH SEAL - Call your local BRP dealership
79 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
81 23160 Shock ass'y, rear arm
82 25058 Spring, front arm
82 25060 SPRING REAR - Call your local BRP dealership
83 31094 Cushion
84 320006 Loctite 641
85 230076 Spring stopper
86 230078 Adjusting Cam
87 605348906 Shock ass'y, rear arm
88 605348748 ARM ADJUSTING ASS'Y - Call your local BRP dealership
89 5446652 Bushing
90 5346754 Shock protector
91 503190797 Wheel 135
92 503190856 Wheel 165 mm
93 293350115 Ball Bearing This part replaces 503190795.
94 371901700 CIRCLIP - Call your local BRP dealership
