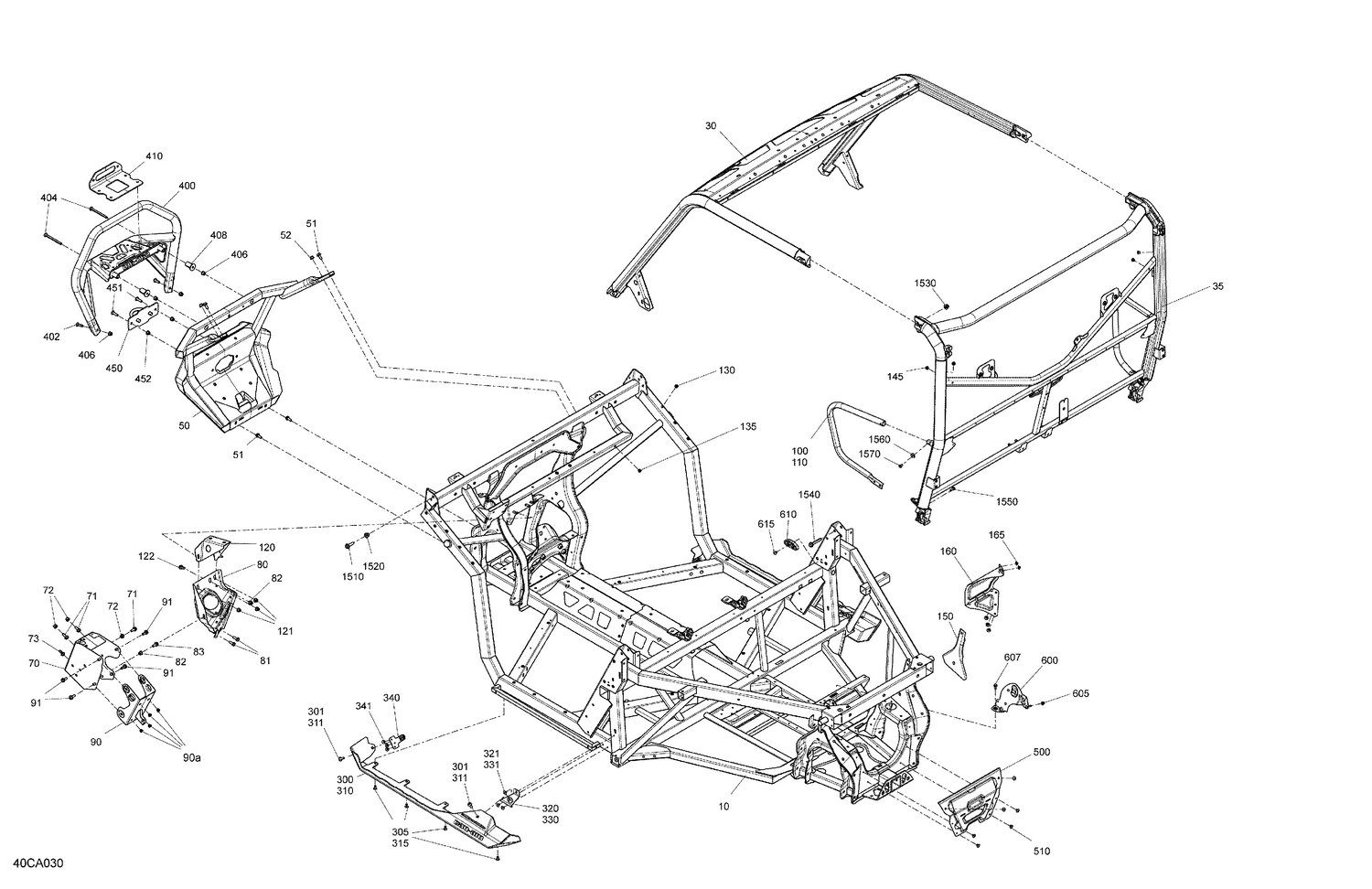

06- Frame - System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715009069 | Deep Black, Chassis Kit This part replaces 715007463. |
| 50 | 705207588 | Deep Black, Front Bumper |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 | 233281416 | Hex. Elastic Flange Nut M8 |
| 70 | 705209388 | Module Support |
| 71 | 207682044 | Hex. Flange Screw M8 X 20 |
| 72 | 233281416 | Hex. Elastic Flange Nut M8 |
| 73 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 | 705208741 | Power Steering Support |
| 81 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 | 233281416 | Hex. Elastic Flange Nut M8 |
| 83 | 207682044 | Hex. Flange Screw M8 X 20 |
| 90a | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 91 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 120 | 705208742 | Support |
| 121 | 233281416 | Hex. Elastic Flange Nut M8 |
| 122 | 207682044 | Hex. Flange Screw M8 X 20 |
| 130 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 135 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 145 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 150 | 705014849 | Heat Shield |
| 160 | 707002717 | Heat Shield |
| 165 | 293150103 | Pop Rivet 3/16" |
| 301 | 250000874 | Torx Truss M8 X 25 |
| 305 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 311 | 250000874 | Torx Truss M8 X 25 |
| 315 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 320 | 705206342 | LH Rock Slider Support |
| 321 | 293150104 | Pop Rivet 3/16" |
| 330 | 705206343 | RH Rock Slider Support |
| 331 | 293150104 | Pop Rivet 3/16" |
| 340 | 705208661 | Front Guard Support |
| 341 | 293150104 | Pop Rivet 3/16" |
| 402 | 250000886 | Torx Screw M8 X 30 |
| 404 | 250001106 | Torx Truss M/S M8 x X 100 |
| 406 | 233281416 | Hex. Elastic Flange Nut M8 |
| 408 | 705207754 | Spacer |
| 410 | 705211620 | Deep Black, Winch Support This part replaces 705206371. |
| 450 | 705211623 | Can-Am Red, Front Tow Hook This part replaces 705208723. |
| 451 | 250000886 | Torx Screw M8 X 30 |
| 452 | 233281416 | Hex. Elastic Flange Nut M8 |
| 500 | 705207753 | Rear Chassis Reinforcement |
| 510 | 293150104 | Pop Rivet 3/16" |
| 600 | 710007522 | Voltage Regulator Support |
| 605 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 607 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 610 | 705208203 | Spacer |
| 615 | 293150104 | Pop Rivet 3/16" |
| 1510 | 250000855 | Hex. Flange Screw M10 X 35 |
| 1520 | 233201436 | Hex. Flange Elastic Nut M10 |
| 1530 | 233201466 | Flange Elastic Nut M10 |
| 1540 | 207606046 | Hex. Flange Screw M10 X 6 |
| 1550 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1560 | 705202223 | Offset Washer |
