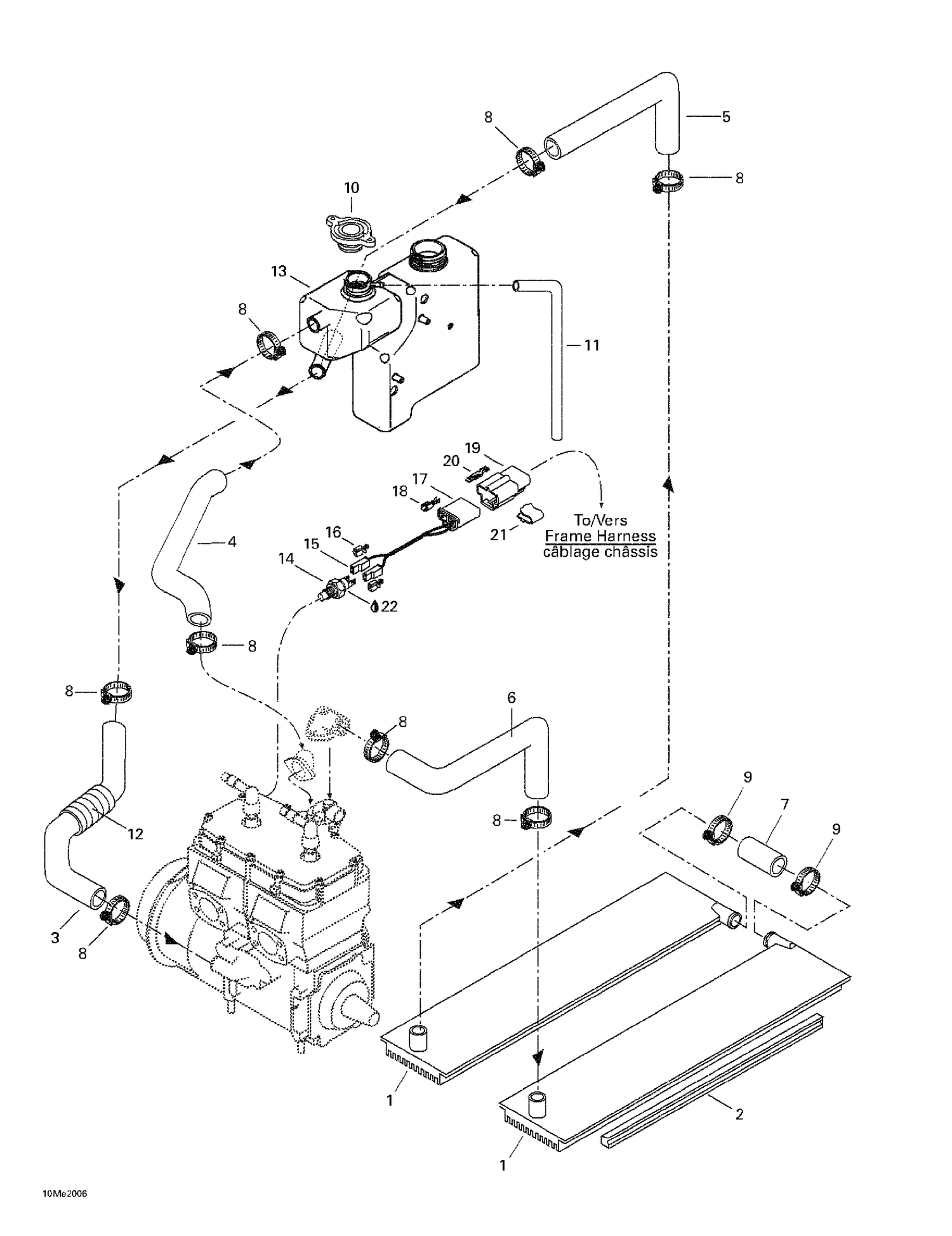

01- Cooling System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518321906 | RH Radiator |
| 2 | 415012300 | RADIATOR PROTECTOR - Call your local BRP dealership |
| 3 | 415010400 | Engine Inlet Hose |
| 4 | 414972900 | Engine Outlet Hose |
| 5 | 414973000 | Radiator Outlet Hose |
| 6 | 415028000 | Radiator Inlet Hose |
| 7 | 414795800 | Radiator Hose |
| 8 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 9 | 408803400 | Clamp Tridon |
| 10 | 509000187 | Pressure Cap This part replaces 414684700. |
| 11 | 219704410 | Polyurethane Hose 10000Mm Long |
| 12 | 219704413 | Was 415084700 Protective Shield |
| 13 | 519000014 | Coolant Tank |
| 14 | 512047000 | Temperature Sensor |
| 15 | 409010400 | Female Terminal Housing, 1 Circuit |
| 16 | 409010100 | Female Terminal |
| 17 | 409008500 | Female Terminal Housing (3 circuits) |
| 18 | 561503200 | Female Terminal PACKARD |
| 19 | 409008600 | Male Terminal Housing (3 circuits) |
| 20 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 21 | 409205600 | CLIP - Call your local BRP dealership |
| 518321907 | LH | Radiator 518321907 |
| 518321907 | Radiateur | GA 518321907 |
