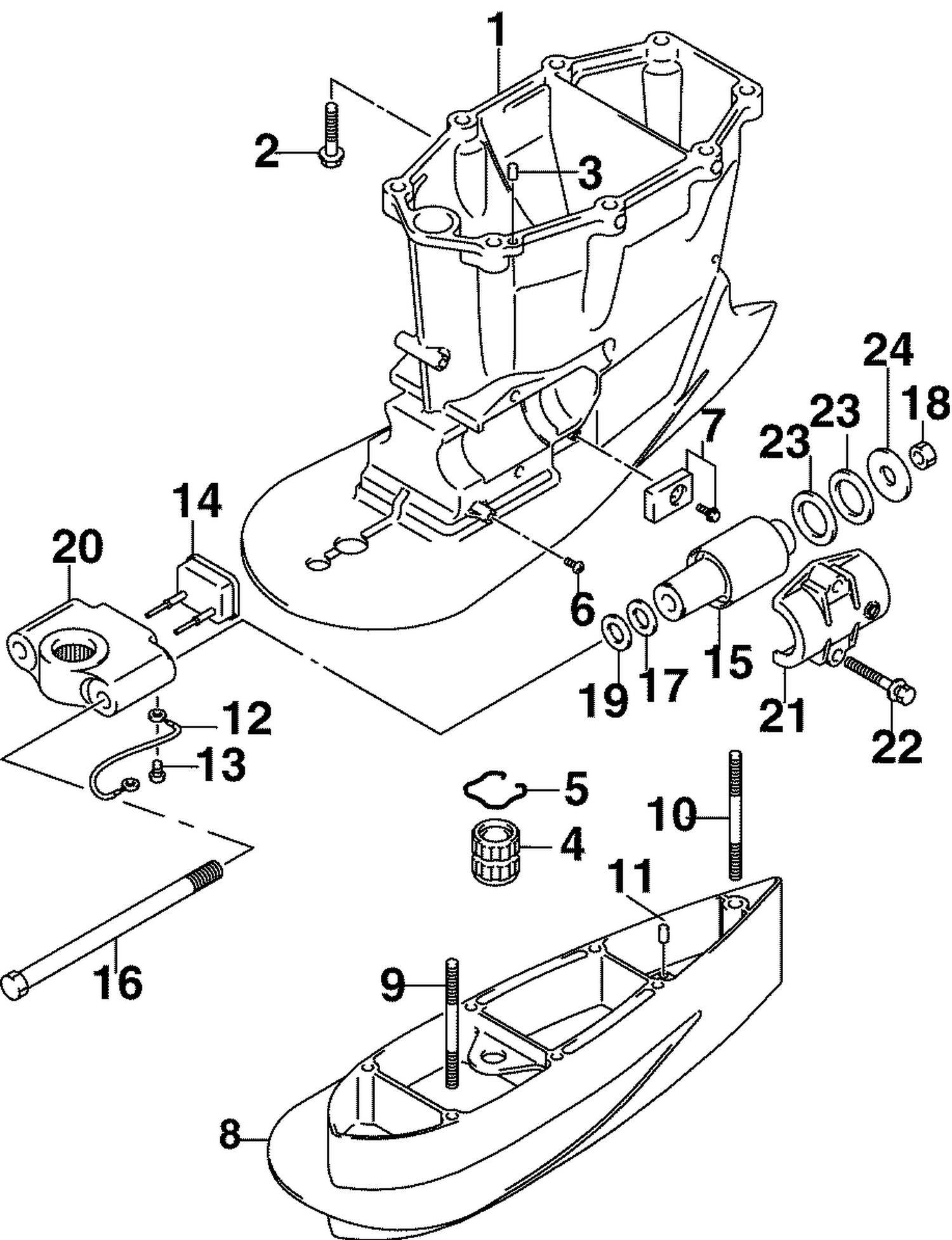

EXHAUST HOUSING
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5034787 | BOLT |
| 3 | 5030511 | PIN |
| 4 | 5035458 | BUSHING, DRIVE SHAFT |
| 5 | 5035337 | RING, DRIVE SHAFT BUSHING SNAP |
| 6 | 5030409 | SCREW |
| 12 | 5033836 | LEAD (L:165mm) |
| 13 | 5030409 | SCREW |
| 14 | 5035145 | MOUNT, LOWER THRUST |
| 15 | 5035146 | MOUNT, LOWER |
| 16 | 5034778 | BOLT, LOWER MOUNT |
| 17 | 5034797 | WASHER, LOWER MOUNT |
| 18 | 5034792 | NUT, LOWER MOUNT BOLT |
| 19 | 5034797 | WASHER, LOWER MOUNT |
| 20 | 5035147 | BRACKET, LOWER MOUNT |
| 21 | 5035148 | COVER, LOWER MOUNT |
| 22 | 5034784 | BOLT, ENG SET NO,2 (L:50mm) |
| 23 | 5035449 | DAMPER, REV STOP LOWER |
