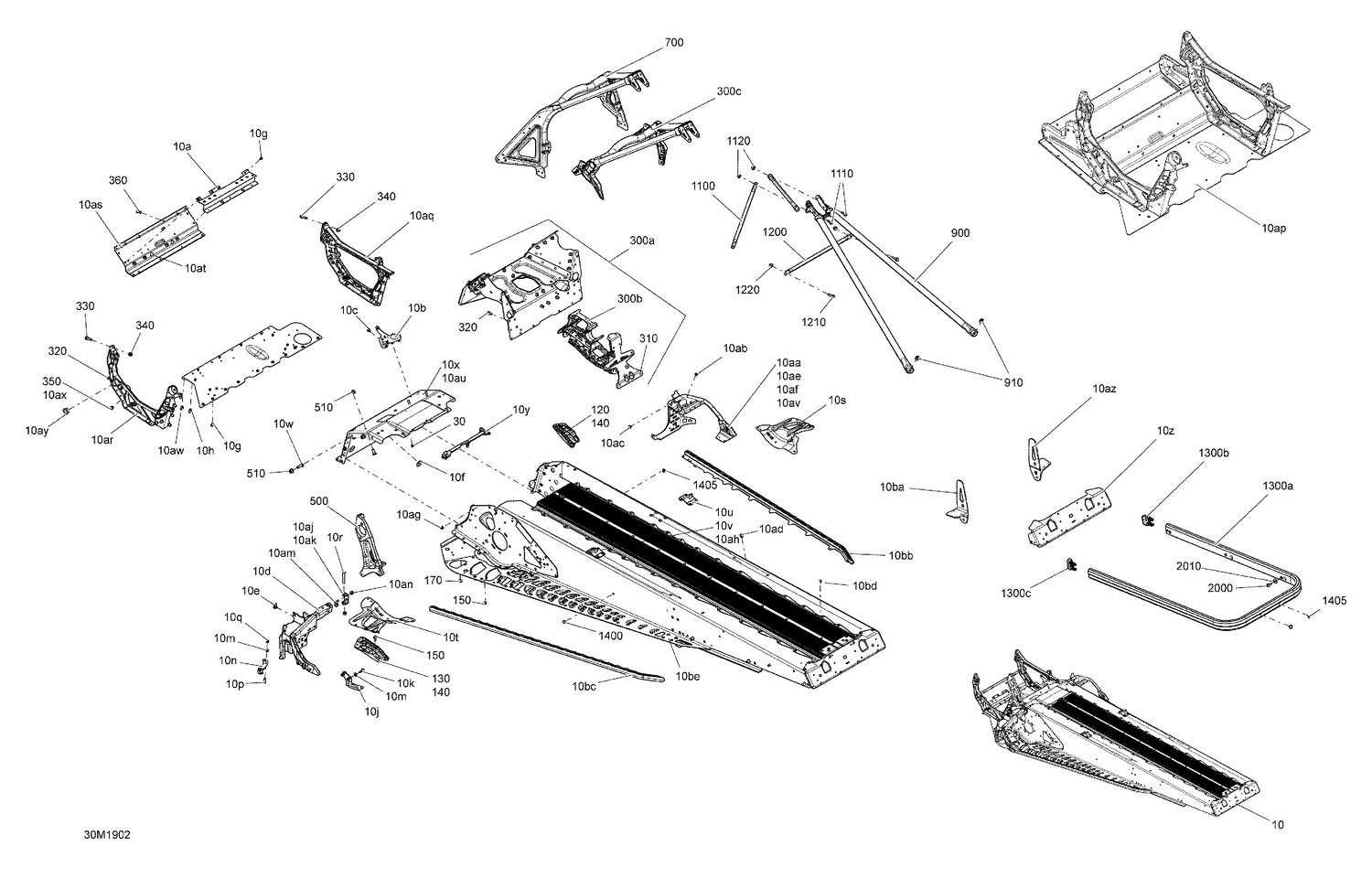

| Ref | Part Number | Description |
|---|
| 10a |
518326120 |
ENGINE SUPPORT - Call your local BRP dealership |
| 10aa |
518328938 |
RH Stirup |
| 10ab |
390909200 |
Avex Rivet |
| 10ac |
293730042 |
Full Moon Dart 5 mm |
| 10ad |
293150203 |
Rivet Avibulb 3/16 |
| 10ae |
390909100 |
Avex Rivet |
| 10af |
293150144 |
Stavex Rivet |
| 10ag |
293150146 |
Henrob Rivet |
| 10ah |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10aj |
518326961 |
U-Attach |
| 10ak |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10am |
250000534 |
Tork Screw M6 X 16 |
| 10an |
233061414 |
Hex. Flange Nut M6 |
| 10ap |
518326926 |
Module E Tundra |
| 10aq |
518326795 |
RH Member |
| 10ar |
518325558 |
LH Member |
| 10as |
518325818 |
Front Member |
| 10at |
250300038 |
Clinch Stud |
| 10au |
250300027 |
Clinch Stud M6 X 20 |
| 10av |
293150144 |
Stavex Rivet |
| 10aw |
293150120 |
Hemlock Rivet 6.5 mm |
| 10ax |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10ay |
293150191 |
Monobolt Rivet, 4.8 mm |
| 10az |
518325949 |
RH Front Member |
| 10b |
518325559 |
RH Engine Support |
| 10ba |
518325950 |
LH Front Member |
| 10bb |
518325951 |
Front Bottom Plate |
| 10bc |
390909100 |
Avex Rivet |
| 10bd |
293150182 |
Monobolt Rivet 6.4 |
| 10be |
390909200 |
Avex Rivet |
| 10bk |
293150144 |
Stavex Rivet |
| 10c |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10d |
518326820 |
LH Stirup |
| 10e |
250000958 |
Panel Nut M5 X 0.8 |
| 10f |
293730052 |
Black, Plug |
| 10g |
293150203 |
Rivet Avibulb 3/16 |
| 10h |
293150191 |
Monobolt Rivet, 4.8 mm |
| 10j |
518326960 |
Support |
| 10k |
250000536 |
Tork Screw M6 X 18 |
| 10m |
250200039 |
Flat Washer |
| 10n |
518326986 |
Attach |
| 10p |
250300027 |
Clinch Stud M6 X 20 |
| 10q |
232561414 |
Elastic Stop Nut M6 |
| 10r |
250000535 |
Torx Screw M8 X 55 |
| 10s |
518324874 |
RH Reinforcement |
| 10t |
518324875 |
LH Reinforcement |
| 10u |
518325973 |
RH Rear Base |
| 10v |
518325974 |
LH Rear Base |
| 10w |
250300038 |
Clinch Stud |
| 10x |
250300027 |
Clinch Stud M6 X 20 |
| 10y |
518326656 |
Seal |
| 10z |
518327105 |
Rear Cap |
| 30 |
390402400 |
Pop Rivet 3/16" |
| 120 |
518325782 |
RH Deflector, Black Polypropylene |
| 130 |
518325783 |
LH Deflector, Black Polypropylene |
| 140 |
293150104 |
Pop Rivet 3/16" |
| 150 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 170 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 500 |
518328346 |
Pulley Support |
| 510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 700 |
518326557 |
Front Member, S Module |
| 730 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 740 |
224061201 |
Flat Washer |
| 750 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 760 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 770 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 780 |
390402200 |
Pop Rivet 3/16" |
| 900 |
518326559 |
Rear Member |
| 910 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1100 |
518325114 |
Upper Lateral Column Support |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1200 |
518325115 |
Center Column Support |
| 1210 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1220 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1300b |
520000711 |
Full Moon RH Cap |
| 1300c |
520000712 |
Full Moon LH Cap |
| 1400 |
293730041 |
Full Moon Dart 8 mm |
| 1405 |
293730059 |
Full Moon Dart 10 mm |
