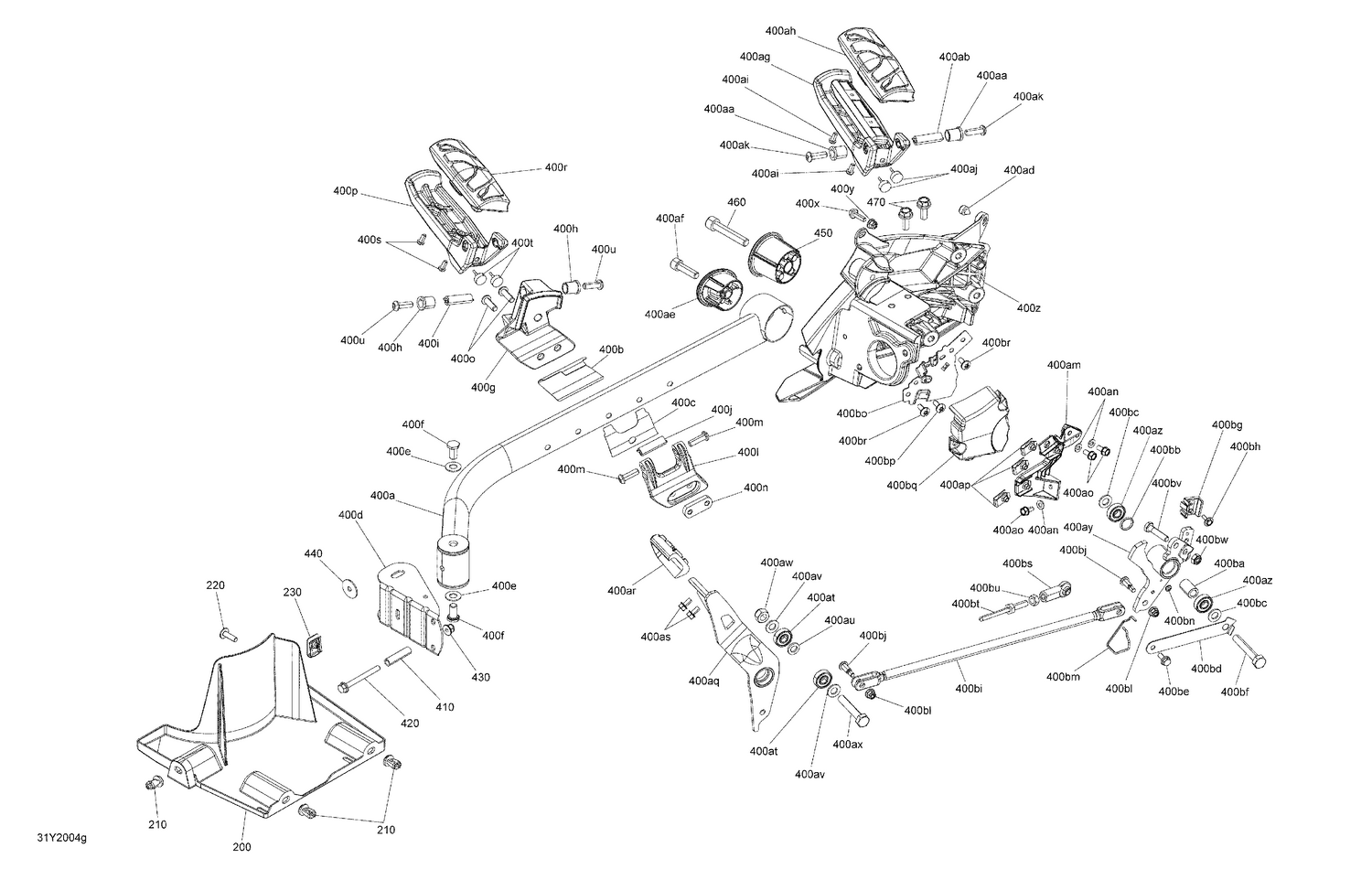

| Ref | Part Number | Description |
|---|
| 200 |
705007786 |
RH Front Skid Plate |
| 210 |
293150230 |
Tuflok Plastic Rivet |
| 220 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 230 |
250100208 |
Panel Nut M6 X 1.0 |
| 400a |
705008954 |
Carbon Black, RH Footrest Support |
| 400aa |
705008166 |
Spacer Bushing |
| 400ab |
705013628 |
Pivot Pin |
| 400ad |
293830005 |
Rubber Bumper |
| 400ae |
705010203 |
Pivot Cap |
| 400af |
244003560 |
SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership |
| 400ag |
705008160 |
Carbon Black, RH Footpeg |
| 400ah |
705011281 |
Footpeg Rubber Pad |
| 400ai |
250000099 |
Allen Plastite Screw #12 |
| 400aj |
708000759 |
Rubber Stopper |
| 400ak |
250000830 |
Socket Head Screw M8 X 25 |
| 400am |
705008962 |
RH Fairing Support |
| 400an |
234061670 |
Black, Flat Washer 6 mm |
| 400ao |
210261250 |
Hex. Flange Screw M6 X 12 |
| 400ap |
250100198 |
Panel Nut M6 X 1.0 |
| 400aq |
705601419 |
Brake Pedal |
| 400ar |
705004933 |
Rubber Pad |
| 400as |
210261250 |
Hex. Flange Screw M6 X 12 |
| 400at |
705600458 |
Bearing |
| 400au |
503192496 |
Washer |
| 400av |
503183800 |
Washer |
| 400aw |
233601466 |
Elastic Locking Nut M10 |
| 400ax |
207006056 |
Hex. Cap Screw M10 X 60 |
| 400ay |
705601308 |
Master Cylinder Rocker |
| 400az |
705600458 |
Bearing |
| 400b |
705014177 |
RH Outer Protective Film |
| 400ba |
705600541 |
Bushing |
| 400bb |
293300191 |
O-Ring |
| 400bc |
503183800 |
Washer |
| 400bd |
705601229 |
Locking Tab |
| 400be |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 400bf |
207206534 |
Hex. Screw M10 X 65, Scotch Grip |
| 400bg |
705601375 |
Brake Master Cylinder Stopper |
| 400bh |
250000725 |
Screw M4 X 16 |
| 400bi |
219400628 |
Brake Linkage Kit (410.7 mm) |
| 400bj |
250000714 |
Flange Screw M6 X 26 |
| 400bl |
233261466 |
Hex. Flange Elastic Nut M6 |
| 400bm |
705601350 |
Quick-Attach Bracket |
| 400bn |
250100178 |
Push Nut |
| 400bo |
705601342 |
Light Switch Bracket |
| 400bp |
250000717 |
Torx Head Screw M6 X 16 |
| 400bq |
705601343 |
Switch Deflector |
| 400br |
250000717 |
Torx Head Screw M6 X 16 |
| 400bs |
705601506 |
Rod End - Call your local BRP dealership This part replaces 705601340. |
| 400bt |
705600468 |
Piston Rod |
| 400bu |
232081414 |
Hex. Nut M8 |
| 400bv |
207283544 |
Hexagonal Head Cap Screw M8 X 35 |
| 400bw |
232581414 |
Hex. Elastic Stop Nut M8 |
| 400c |
705014175 |
RH Inner Protective Film |
| 400d |
705008950 |
Tube Support |
| 400e |
506152582 |
Washer |
| 400f |
250000719 |
Hex. Cap Screw Full Thread M10 X 20 |
| 400g |
705008158 |
RH Slider Outside |
| 400g |
705009463 |
Carbon Black, RH Slider Outside |
| 400h |
705008166 |
Spacer Bushing |
| 400i |
705013628 |
Pivot Pin |
| 400j |
705013628 |
Pivot Pin |
| 400l |
705013120 |
Black, RH Slider Clamp |
| 400m |
250000830 |
Socket Head Screw M8 X 25 |
| 400n |
705008553 |
Back Plate |
| 400o |
250000830 |
Socket Head Screw M8 X 25 |
| 400p |
705008160 |
Carbon Black, RH Footpeg |
| 400r |
705011281 |
Footpeg Rubber Pad |
| 400s |
250000099 |
Allen Plastite Screw #12 |
| 400t |
708000759 |
Rubber Stopper |
| 400u |
250000830 |
Socket Head Screw M8 X 25 |
| 400x |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 400y |
233261466 |
Hex. Flange Elastic Nut M6 |
| 400z |
705009402 |
Carbon Black, RH Rear Footrest Support |
| 410 |
705018575 |
Spacer This part replaces 705008219. |
| 420 |
250000778 |
Hex. Flange Screw M6 X 60 |
| 430 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 440 |
250200029 |
Washer M6 |
| 450 |
705010202 |
Pivot Cap |
| 460 |
205505560 |
Socket Head Screw |
