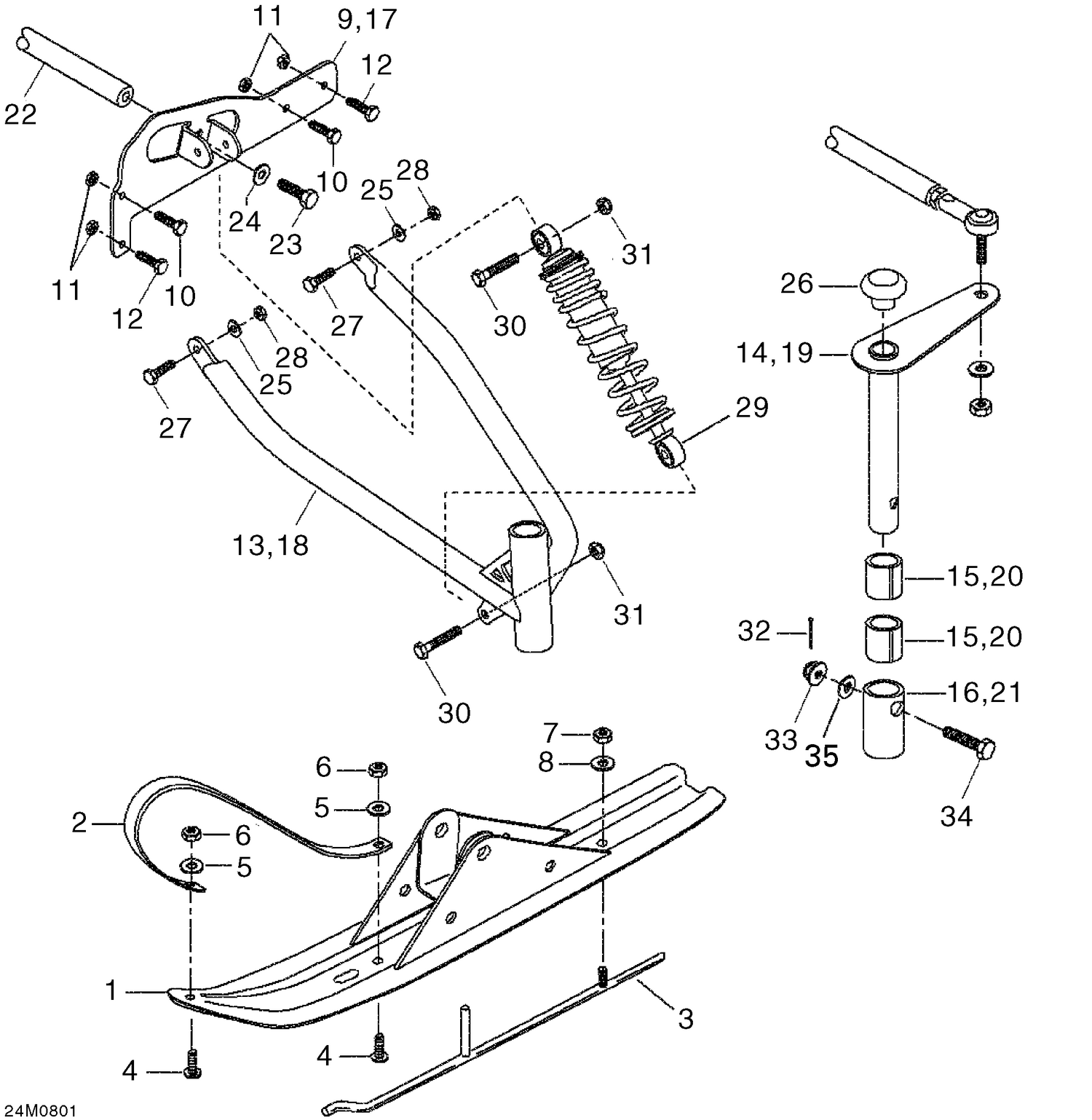

| Ref | Part Number | Description |
|---|
| 2 |
572099500 |
HANDLE - Call your local BRP dealership |
| 3 |
505068400 |
Runner |
| 4 |
208562560 |
Phillips Screw M6 X 25 |
| 5 |
234061410 |
Flat Washer 6 mm |
| 6 |
232561414 |
Elastic Stop Nut M6 |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
234081410 |
Flat Washer 8 mm |
| 9 |
505071188 |
LH Upper Bracket |
| 10 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 12 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 13 |
505071155 |
RH Arm |
| 14 |
505071157 |
SKI LEG PAINT - Call your local BRP dealership |
| 15 |
415087300 |
CUSHION - Call your local BRP dealership |
| 16 |
505070457 |
SPACER - Call your local BRP dealership |
| 17 |
505071189 |
RH Upper Bracket |
| 18 |
505071159 |
LH ARM - Call your local BRP dealership |
| 19 |
505071157 |
SKI LEG PAINT - Call your local BRP dealership |
| 20 |
415087300 |
CUSHION - Call your local BRP dealership |
| 21 |
505070457 |
SPACER - Call your local BRP dealership |
| 22 |
505071192 |
CROSS MEMBER - Call your local BRP dealership |
| 23 |
207182044 |
Hex. Screw M8 X 20 |
| 24 |
234180411 |
WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership |
| 25 |
505071254 |
CUSHION - Call your local BRP dealership |
| 26 |
572079100 |
CAP - Call your local BRP dealership |
| 27 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 28 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 29 |
A51400145000 |
FRONT CUSHION - Call your local BRP dealership |
| 30 |
207004544 |
Hex. Screw M10 X 45 |
| 31 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 32 |
371801000 |
COTTER PIN - Call your local BRP dealership |
| 33 |
232201414 |
NUT-HEX.CASTLE DIN.935 - Call your local BRP dealership |
| 34 |
505070178 |
BOLT M10 X 60 - Call your local BRP dealership |
