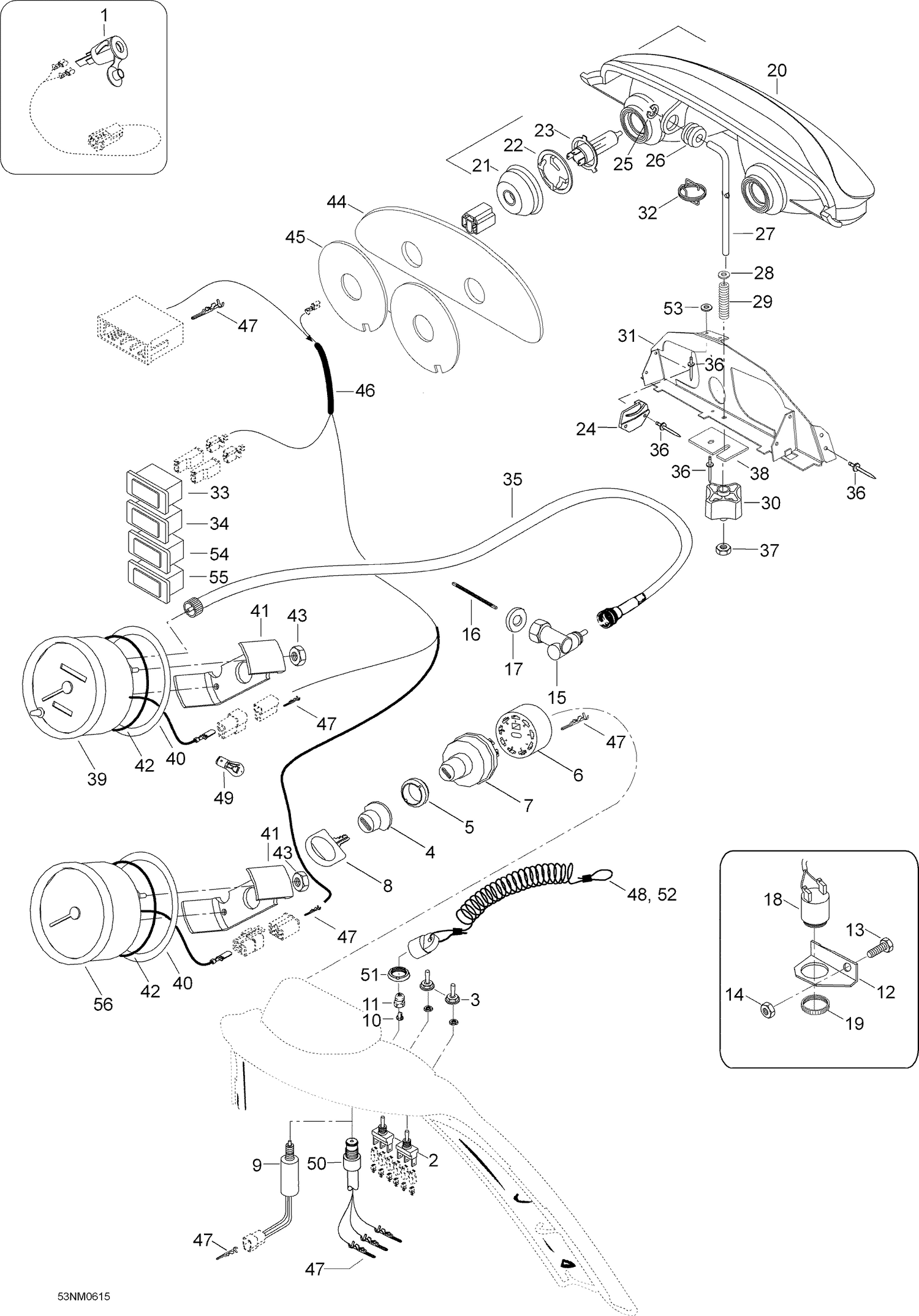

| Ref | Part Number | Description |
|---|
| 1 |
710001248 |
DC Outlet This part replaces M42026. |
| 2 |
410107300 |
Switch (Heating Grip) |
| 3 |
515175281 |
Switch Cover |
| 4 |
570013700 |
Switch Boot |
| 5 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 6 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 7 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113602. |
| 8 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
M549459 |
Support |
| 13 |
207161644 |
Hex. Screw M6 X 16 |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 15 |
35021 |
Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021. |
| 16 |
45009 |
Tige Vitesse *Branch-Key This part replaces M45009. |
| 17 |
M5444186 |
Washer |
| 18 |
414792102 |
Back-Up Alarm |
| 19 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 21 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 22 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 23 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 24 |
517289300 |
RH Support |
| 24 |
517289400 |
LH Support |
| 25 |
732610072 |
Push Nut |
| 26 |
415100800 |
Grommet - Call your local BRP dealership |
| 27 |
M5448100 |
ADJUSTER ROD - Call your local BRP dealership |
| 28 |
234061410 |
Flat Washer 6 mm |
| 29 |
415100600 |
SPRING - Call your local BRP dealership |
| 30 |
515175548 |
Handle - Call your local BRP dealership |
| 31 |
M5248092 |
Support |
| 32 |
M5445737 |
Spring |
| 33 |
515175726 |
PILOT LAMP, HEADLAMP - Call your local BRP dealership |
| 34 |
515175728 |
PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership |
| 35 |
5344162 |
Speedometer Cable This part replaces M5344162. |
| 36 |
36005 |
Rivet This part replaces M36005. |
| 37 |
232561414 |
Elastic Stop Nut M6 |
| 38 |
M5448320 |
Washer 6mm |
| 39 |
605152889 |
Speedometer Kmh/mph |
| 40 |
517258500 |
Washer |
| 41 |
414806500 |
Case Holder |
| 42 |
414807100 |
O-Ring |
| 43 |
M33062 |
NUT M5 - Call your local BRP dealership |
| 44 |
M5247817 |
Foam |
| 45 |
M5447818 |
Plastic Plate |
| 46 |
XXX |
Not Available As Spare Parts |
| 47 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 48 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 49 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
