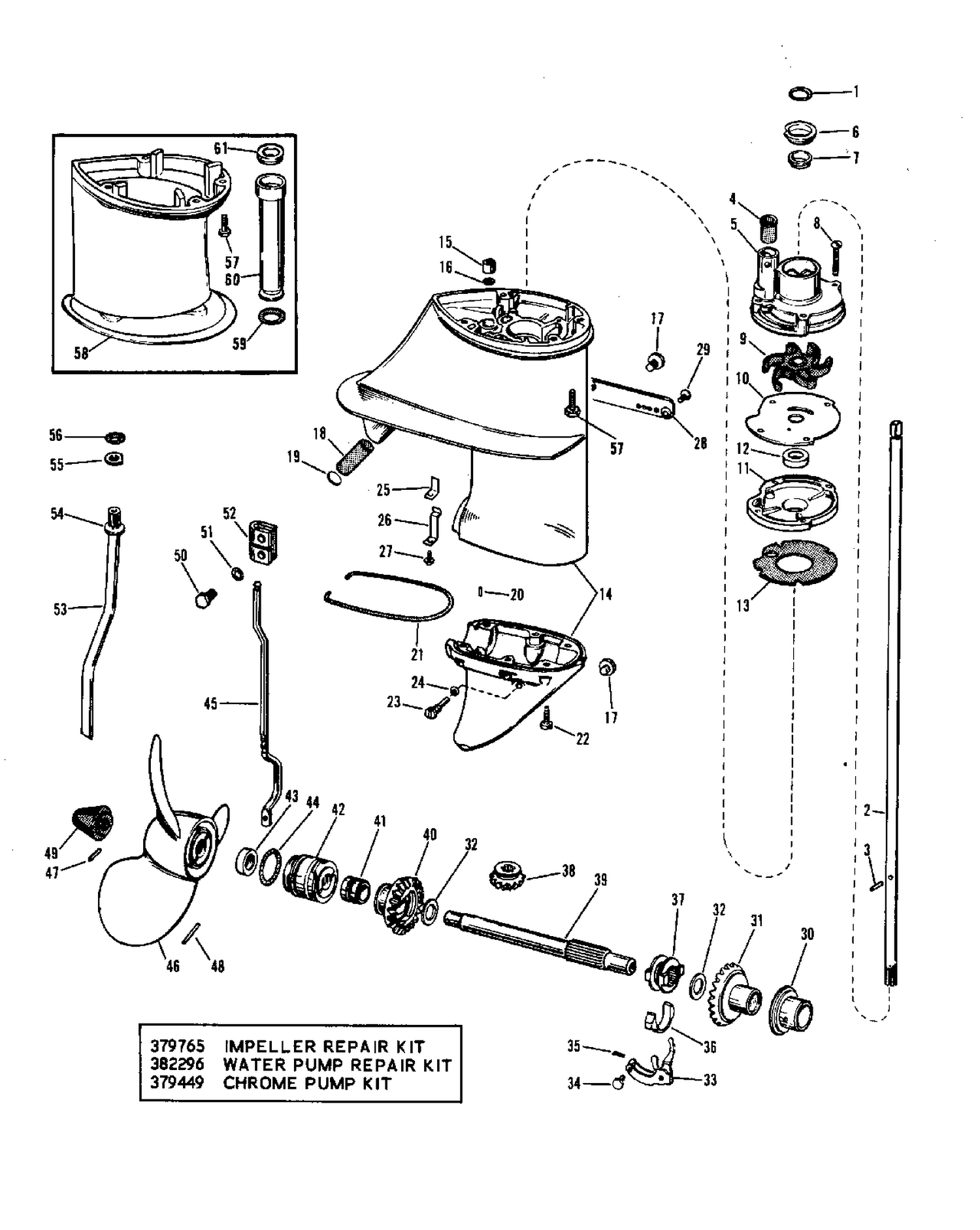

| Ref | Part Number | Description |
|---|
| 2 |
0309639 |
DRIVESHAFT, Standard |
| 2 |
0309640 |
DRIVESHAFT, Long |
| 3 |
0300771 |
PIN, Impeller |
| 5 |
0310000 |
HOUSING, Impeller |
| 6 |
0309607 |
SEAL, Impeller housing |
| 7 |
0309583 |
WASHER, Seal |
| 8 |
0303395 |
SCREW |
| 9 |
0377178 |
IMPELLER, Water pump |
| 10 |
0305303 |
PLATE, Impeller house |
| 11 |
0382292 |
BEARING HOUSING ASSY |
| 13 |
0303339 |
GASKET, Bearcase to bearing housing |
| 14 |
0382573 |
GEAR CASE ASSY.,Upper and lower |
| 16 |
0301877 |
O RING SHIFT ROD |
| 20 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 21 |
SEAL, |
Gearcase |
| 24 |
0307853 |
O RING |
| 25 |
0303700 |
SPRING, Detent backup |
| 26 |
0303466 |
DENTENT, Spring |
| 27 |
0306478 |
SCREW |
| 28 |
0304579 |
COVER, By-pass, upper |
| 29 |
0303679 |
SCREW |
| 30 |
0303380 |
BEARING, Front |
| 31 |
0378179 |
GEAR & BUSHING Front |
| 33 |
0303340 |
LEVER, Shifter |
| 36 |
0303381 |
CRADDLE,Shifter |
| 37 |
0377458 |
SHIFTER, Clutch dog |
| 38 |
0307752 |
GEAR, Pinion |
| 39 |
0305261 |
SHAFT, Propeller |
| 40 |
0307754 |
GEAR, Reversing |
| 41 |
0303998 |
BUSHING, Reverse gear |
| 42 |
0382291 |
GEAR CASE HEAD & BEARING |
| 45 |
0309582 |
SHIFT ROD, Lower |
| 45 |
0309628 |
SHIFT ROD, Lower long |
| 46 |
0383315 |
PROPELLER, 8-1/8 x 8 |
| 47 |
0305296 |
COTTER PIN |
| 48 |
0307949 |
DRIVE PIN, Propeller |
| 49 |
0305394 |
NUT |
| 53 |
0379157 |
WATER TUBE ASSY., Std |
| 53 |
0379158 |
WATER TUBE, Long |
| 54 |
0309645 |
PUSH NUT, Water tube |
| 55 |
0309613 |
WASHER, Water tube |
| 56 |
0309704 |
O RING.Gearcase to cylinder |
| 57 |
0310063 |
SCREW, Gearcase to housing This part replaces 0312282. |
| 58 |
0324828 |
EXTENSION, Gearcase This part replaces 0310110. |
| 60 |
0310111 |
SPACER, Exh. hsg. to imp. hsg. 5 INCH LONGER PARTS |
| 61 |
0310112 |
SEAL, Spacer |
| 0304081 |
0304081 |
CONNECTOR 5 " EXTENSION KIT |
| 0311150 |
0311150 |
EXTENSION, Water tube |
| 0380022 |
0380022 |
EXTENSION KIT ASSEMBLY |
| 0382575 |
0382575 |
GEAR CASE ASSEMBLY,Less driveshaft & pump |
