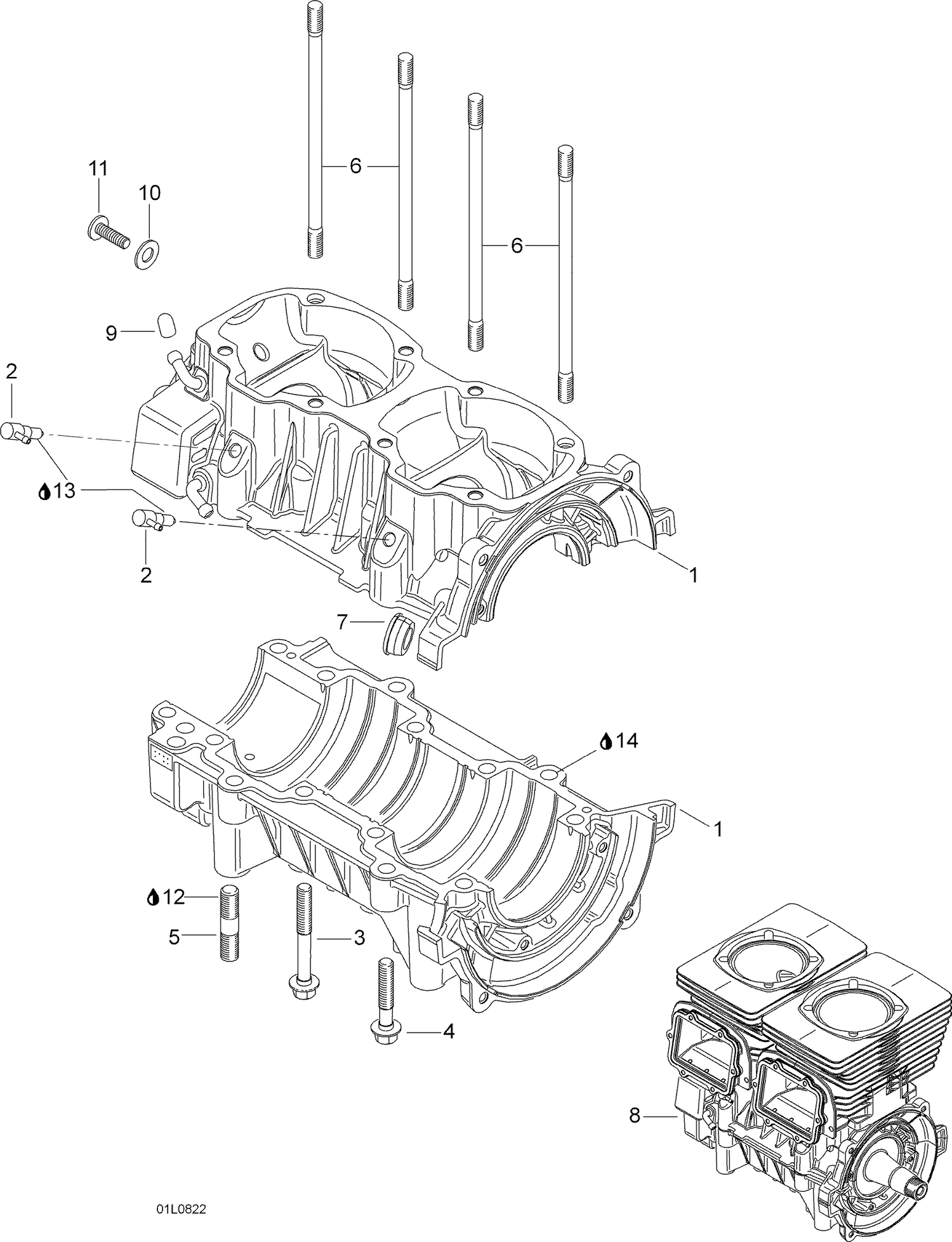

| Ref | Part Number | Description |
|---|
| 2 |
420956511 |
Check Valve This part replaces 420956510. |
| 3 |
420640959 |
Collar Hex Screw M8 X 68.5 This part replaces 420640951. |
| 4 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 5 |
420641834 |
STUD M10 X 29 - Call your local BRP dealership |
| 6 |
420840556 |
Stud |
| 7 |
420860962 |
Cable grommet |
| 8 |
300055206 |
Short block engine |
| 9 |
420960772 |
CAP - Call your local BRP dealership |
| 10 |
420250315 |
Flat Washer 8.4 Mm This part replaces 420250311. |
| 11 |
420640897 |
Flat Head Screw This part replaces 420640896. |
| 12 |
293800060 |
Loctite 243, 10ml |
| 13 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
