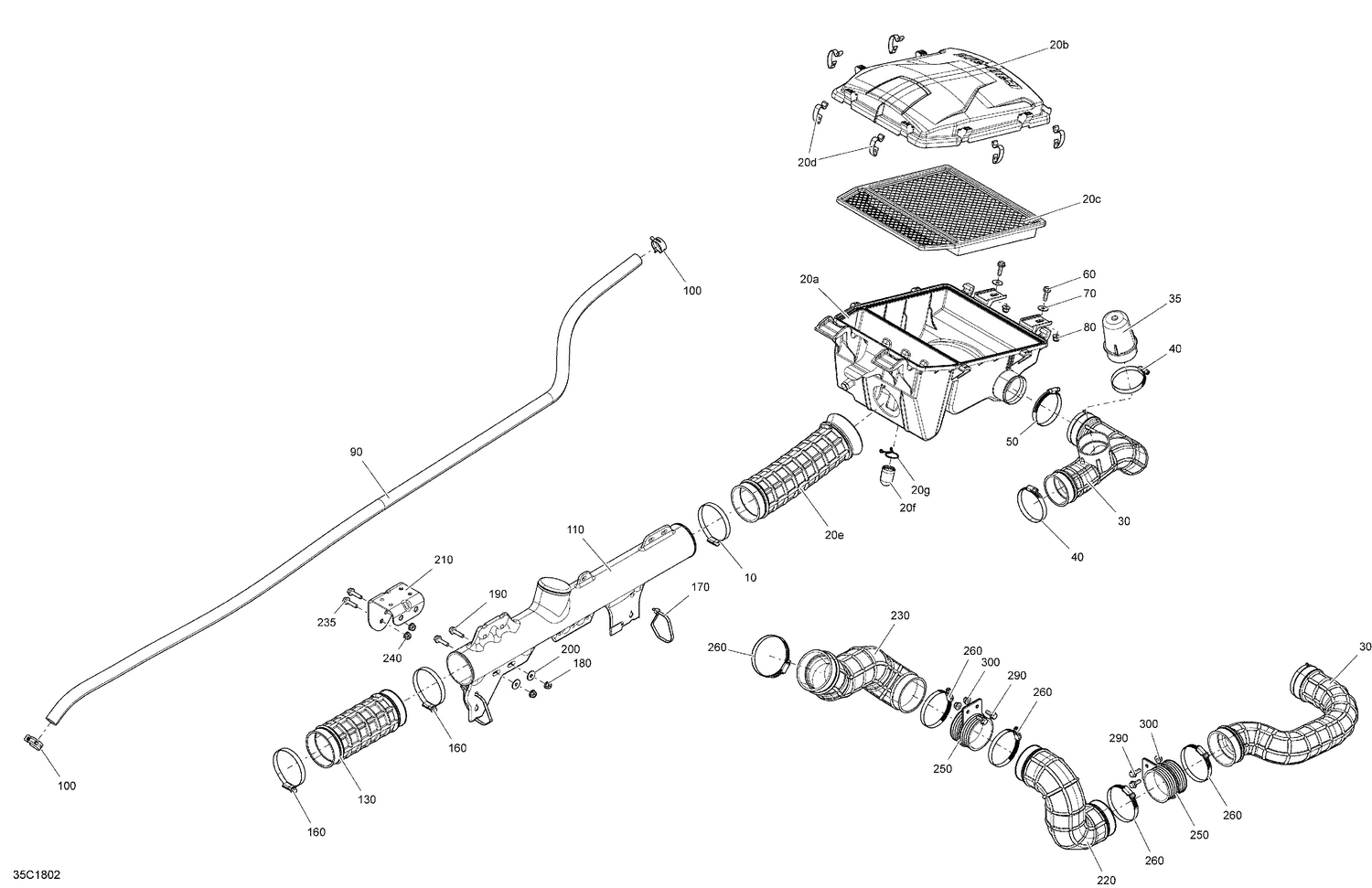

02- Air Intake Maverick Max
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 293650091 | Norma Clamp |
| 20a | 707800517 | Air Intake Silencer Base |
| 20b | 707800326 | Air Intake Silencer Cover |
| 20c | 707800327 | Air Filter |
| 20d | 707800249 | Cover Bracket |
| 20e | 707800329 | Intake Adaptor |
| 20f | 707800080 | Drain Tube |
| 20g | 707800278 | Retainer Clip |
| 30 | 707800532 | Intake Adaptor |
| 35 | 707800533 | Intake Adaptor Tank |
| 40 | 293650079 | Norma Clamp |
| 50 | 293650079 | Norma Clamp |
| 60 | 207662044 | Hex. Flange Screw M6 X 20 |
| 70 | 250200082 | Flat Washer |
| 80 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 90a | 219704438 | Was 707800411 Hose 15.88 mm |
| 100 | 293650213 | Norma Spring Clamp |
| 110 | 707800515 | Intake Adaptor |
| 130 | 707800541 | Intake Adaptor |
| 160 | 293650091 | Norma Clamp |
| 180 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 190 | 207662544 | Hex. Flange Screw M6 X 25 |
| 200 | 250200082 | Flat Washer |
| 210 | 707800560 | Rear Support |
| 235 | 207662544 | Hex. Flange Screw M6 X 25 |
| 240 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
