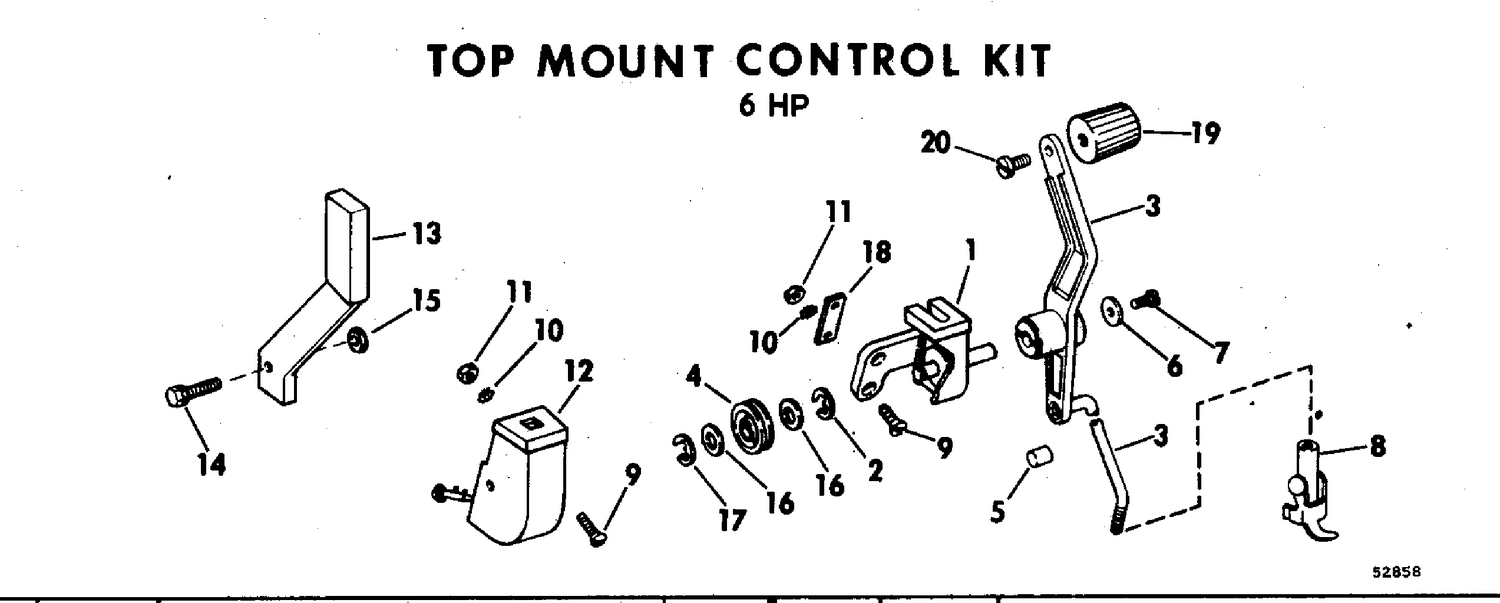

TOP MOUNT CONTROL KIT 6 HP P/N 171797
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0171801 | BRACKET ASSEMBLY |
| 2 | 0311034 | RETAINER RING |
| 3 | 0171821 | HANDLE AND ROD ASSEMBLY |
| 4 | 0121487 | PULLEY |
| 5 | 0121498 | BUSHING, Rod |
| 8 | 0171803 | CONNECTOR ASSEMBLY |
| 12 | 0171804 | BRACKET ASSY, Choke |
| 13 | 0121481 | HANDLE Shift extension |
| 14 | 0309263 | BOLT, Handle |
| 16 | 0303884 | RONDELLE |
| 17 | 0311034 | RETAINER RING |
| 18 | 0121485 | SPACER |
| 0171797 | 0171797 | TOP MOUNT ACCESSORY KIT, 6 hp |
