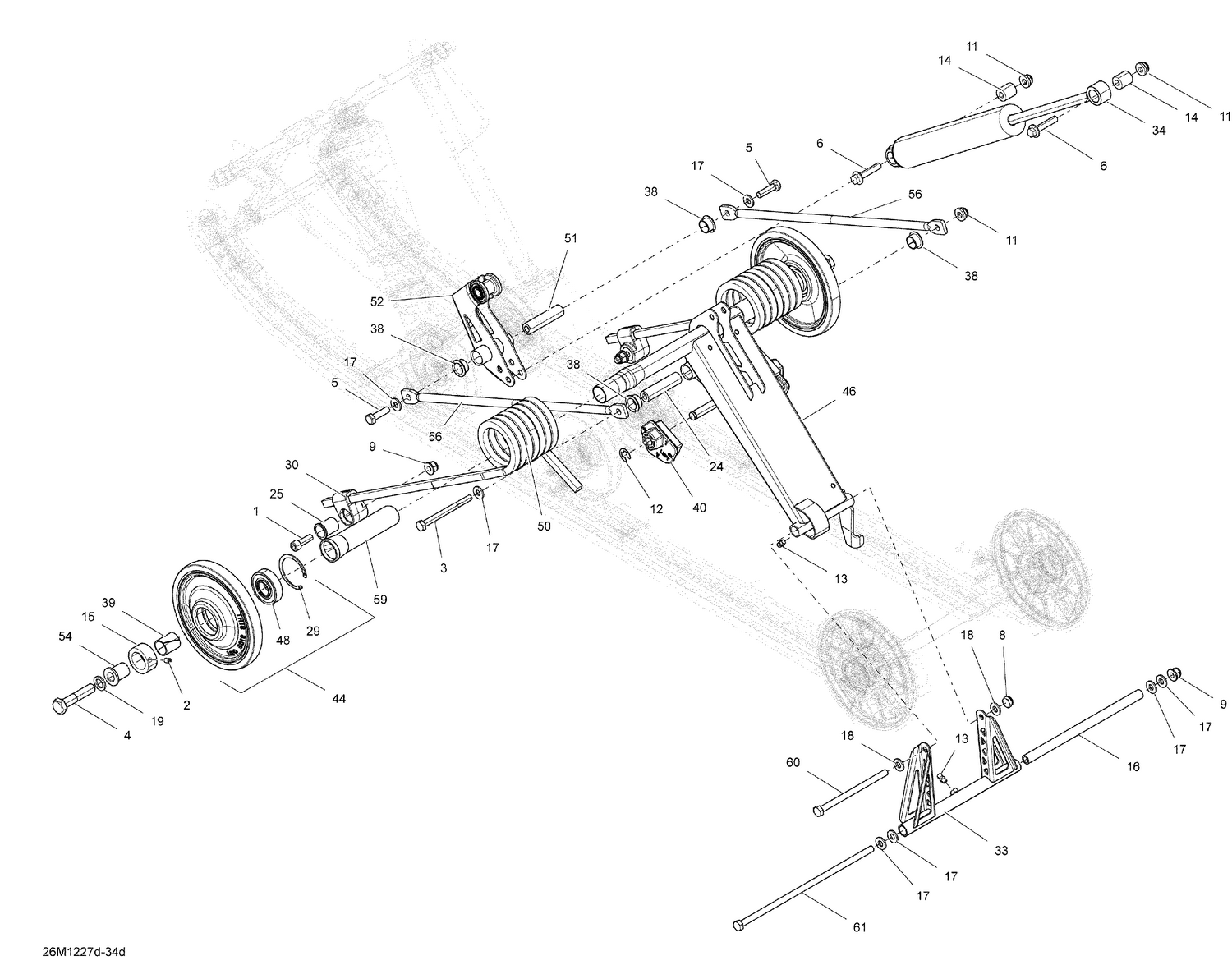

08- Rear Suspension Rear Arm(STD,Sport)
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205082544 | Socket Head Screw M8 X 25 |
| 2 | 206260844 | Socket Set Screw M6 X 8 |
| 3 | 207089044 | Hex. Screw M8 X 90 |
| 4 | 207226044 | HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 5 | 207383044 | HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 6 | 207684044 | Hex. Flange Screw M8 X 40 |
| 8 | 232581414 | Hex. Elastic Stop Nut M8 |
| 9 | 250100131 | Elastic Flange Nut M8 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 293370013 | E-Circlip |
| 13 | 408200700 | Grease Fitting |
| 14 | 414936000 | Bushing |
| 15 | 503168800 | Retaining Ring |
| 16 | 503189156 | Pivot Arm Axle |
| 17 | 503192494 | Washer |
| 18 | 503189157 | Washer |
| 19 | 503189276 | Washer |
| 24 | 503190643 | Axle Bar (Long) |
| 25 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 29 | 415129371 | Retaining Ring |
| 30 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 33 | 503191209 | Pivot Arm |
| 34 | 503193187 | Rear Shock Seal HPG This part replaces 503192159. |
| 38 | 503191555 | Swivel Bushing |
| 39 | 503191556 | Extended Bushing |
| 40 | 503191565 | LH Cam Adjuster |
| 40 | 503191566 | RH Cam Adjuster |
| 44 | 503191738 | Black, Wheel Ass'y 155 mm |
| 46 | 503192252 | Rear Arm Ass'y This part replaces 503192253. |
| 48 | 503193548 | Ball Bearing This part replaces 503191982. |
| 50 | 503192080 | RH Spring |
| 50 | 503192081 | LH Spring |
| 51 | 503192139 | BAR AXLE - Call your local BRP dealership |
| 52 | 503192211 | Rocker |
| 54 | 503192223 | BUSHING - Call your local BRP dealership |
| 56 | 503196617 | Link Rod This part replaces 503192255. |
| 59 | 572080700 | Bushing |
| 60 | 732601197 | Bolt M8, Short |
