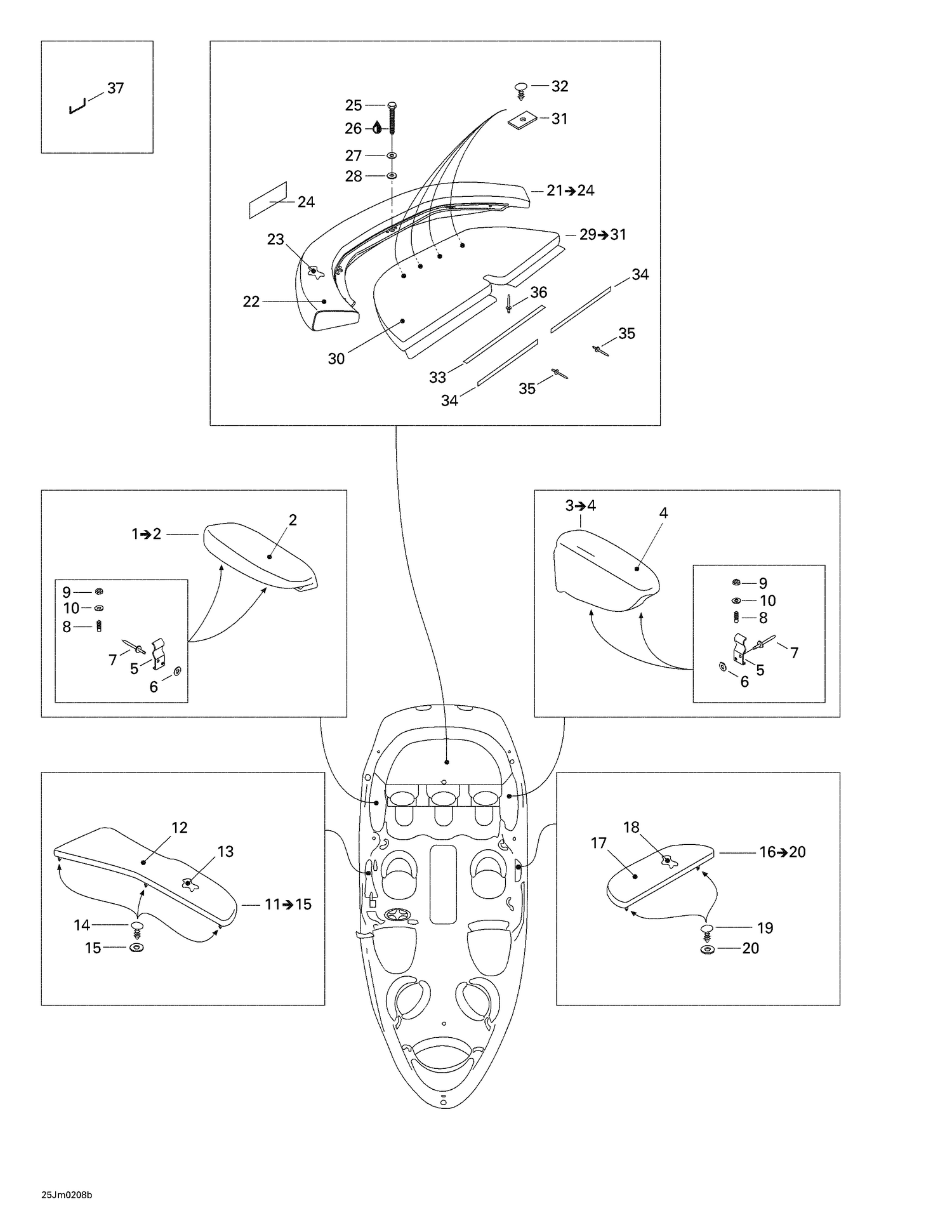

| Ref | Part Number | Description |
|---|
| 2 |
204611204 |
RH Armrest Cover |
| 4 |
204611206 |
LH Armrest Cover |
| 5 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 6 |
234061600 |
Stainless Flat Washer M6 |
| 7 |
293150043 |
Pop Rivet 3/16" |
| 8 |
206254069 |
Socket Set Screw M5 X 40, Scotch Grip |
| 9 |
232551600 |
Hex. Elastic Nut M5 |
| 10 |
234052600 |
Flat Washer 5 mm, Stainless |
| 12 |
204611208 |
RH Elbow Padding Cover (Metalic Quartz |
| 13 |
204610121 |
Neoprene Foam |
| 14 |
293730006 |
Black, Dart |
| 15 |
234062600 |
Flat Washer M6, Stainless |
| 17 |
204611210 |
LH Elbow Padding Cover (Metalic Quartz) |
| 18 |
204610123 |
Neoprene Foam |
| 19 |
293730006 |
Black, Dart |
| 20 |
234062600 |
Flat Washer M6, Stainless |
| 22 |
204611214 |
Spoiler Cover |
| 23 |
Not |
Available As Spare Part - Spoiler Foam |
| 24 |
204610184 |
Staple Cover, Meter |
| 25 |
207362560 |
Hex. Screw M6 X 25, Scotch Grip |
| 26 |
293800060 |
Loctite 243, 10 ml |
| 27 |
234062600 |
Flat Washer M6, Stainless |
| 28 |
234002600 |
Flat Washer 10 mm, Stainless |
| 30 |
204610717 |
Platform Cover (Metalic Quartz) |
| 31 |
204610194 |
Strap |
| 32 |
293730006 |
Black, Dart |
| 33 |
204611298 |
Velcro 25 Mm X 940 Mm |
| 34 |
204611299 |
Velcro 25 Mm X 635 Mm |
| 35 |
293150037 |
Avdel Rivet 3/16" |
| 36 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
