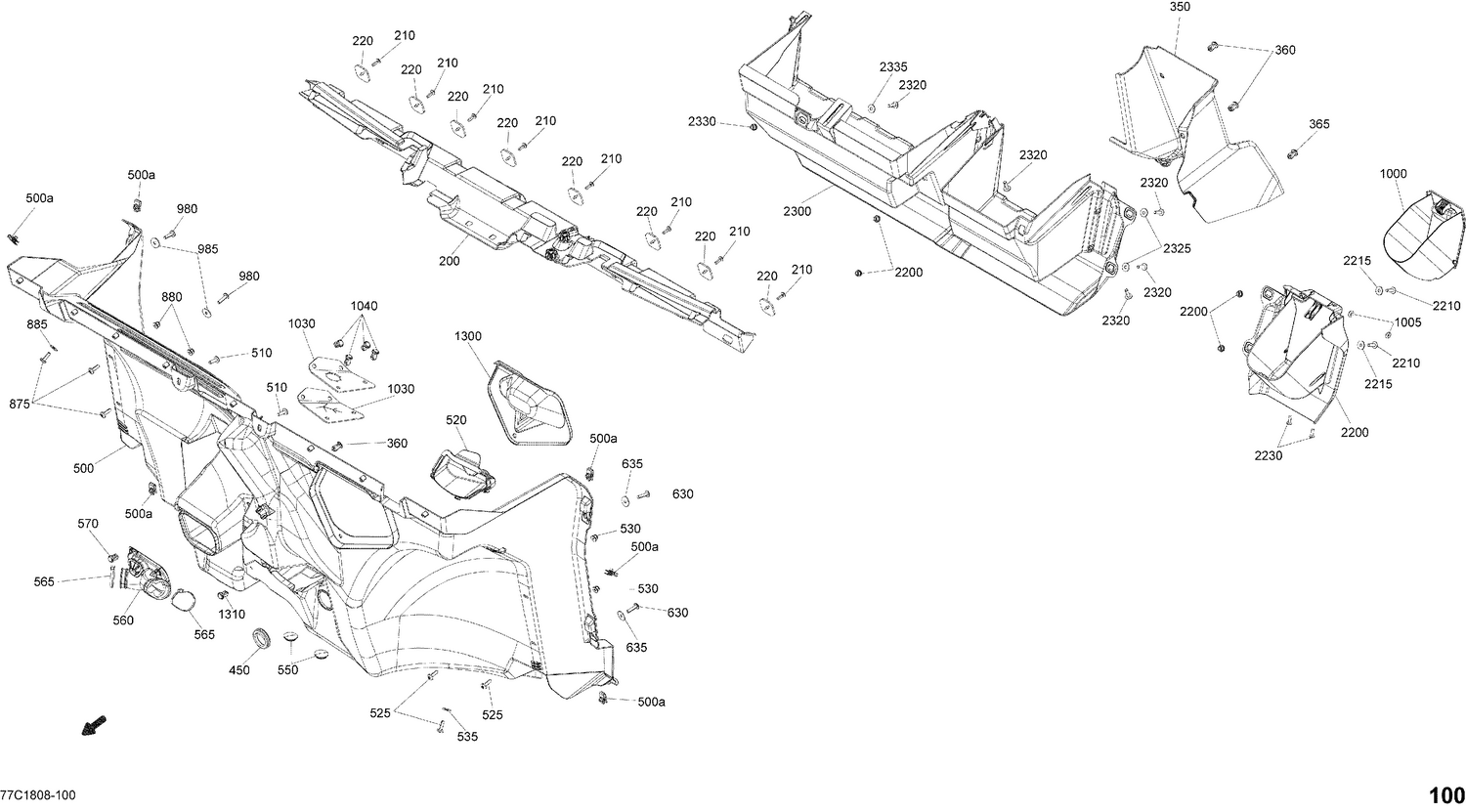

09- Cab Interior Front Part Defender MAX
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 707900296 | Upper Front Deflector |
| 210 | 250000720 | Torx Screw K50 X 16 |
| 220 | 705003841 | Support Plate |
| 350 | 707900289 | Front Bulkhead Cover |
| 360 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 365 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 450 | 293250242 | Rubber Cover |
| 500a | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 520 | 707900408 | DPS Cover |
| 525 | 250000712 | Torx Screw M6 X 20 |
| 530 | 233261494 | Hex. Flange Elastic Nut M6 |
| 535 | 234062670 | Stainless Steel Flat Washer |
| 550 | 291002744 | Bumber Cap |
| 560 | 707900390 | RH Rubber Cover |
| 565 | 293750008 | Tie Wrap 368 mm |
| 570 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 630 | 250000807 | Torx Truss Screw M6 X 25 |
| 635 | 250200162 | Flat Washer M6.6 X 22 |
| 875 | 250000712 | Torx Screw M6 X 20 |
| 880 | 233261494 | Hex. Flange Elastic Nut M6 |
| 885 | 234062670 | Stainless Steel Flat Washer |
| 980 | 250000807 | Torx Truss Screw M6 X 25 |
| 985 | 250200162 | Flat Washer M6.6 X 22 |
| 1000 | 707900252 | Drawer |
| 1005 | 293300194 | O-Ring |
| 1040 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1300 | 707900389 | Exterior Cover |
| 1310 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 2200 | 707900251 | LH Lower Dash This part replaces 707900251. |
| 2210 | 250000722 | Torx Screw M6 X 20 |
| 2215 | 234062670 | Stainless Steel Flat Washer |
| 2220 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 2230 | 250000720 | Torx Screw K50 X 16 |
| 2300 | 707900250 | RH Lower Dash |
| 2320 | 250000722 | Torx Screw M6 X 20 |
| 2325 | 234062670 | Stainless Steel Flat Washer |
| 2330 | 250100199 | Insert Half Hex Body M6 x 1.0 |
