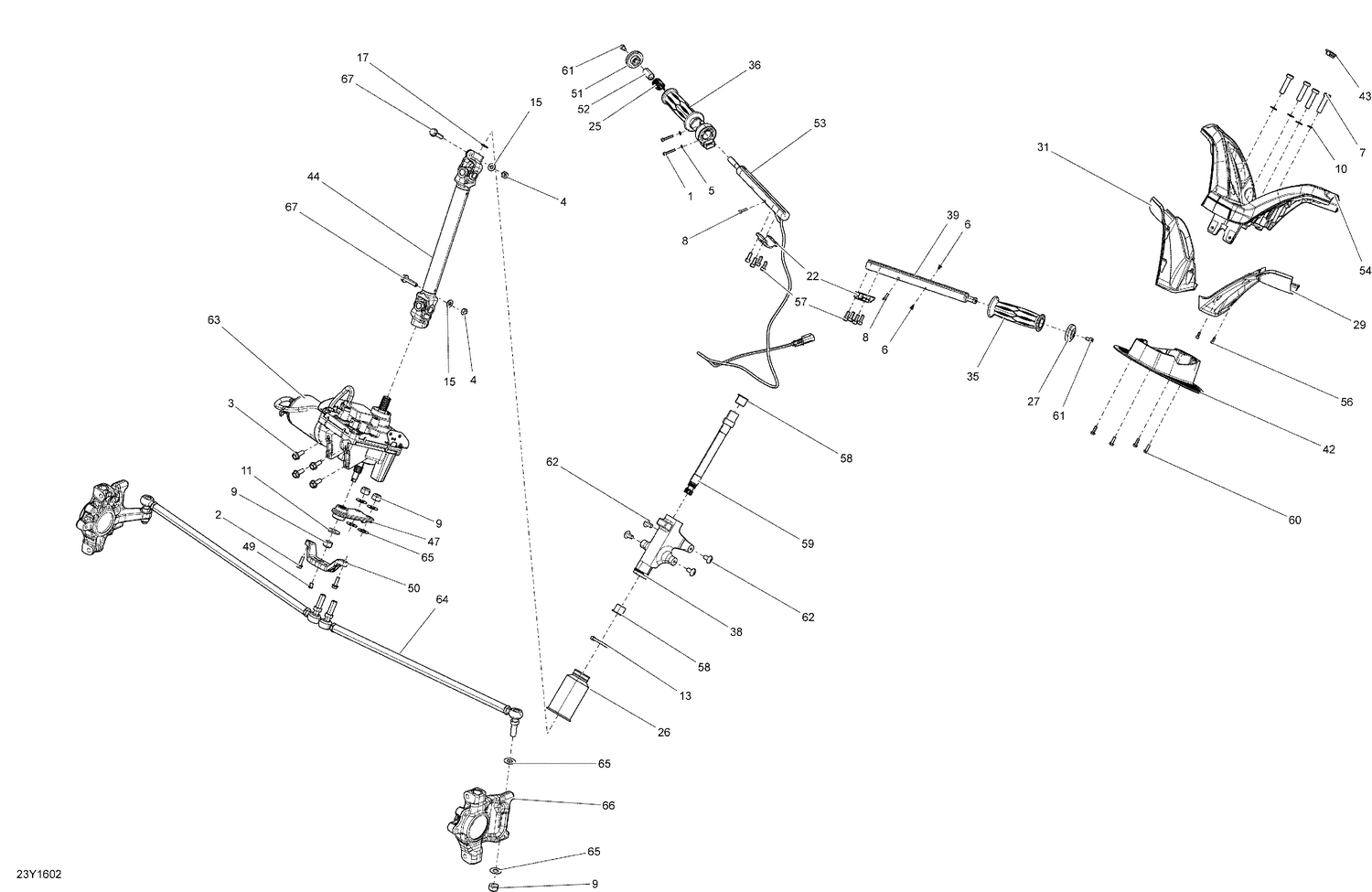

07- Steering
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205042594 | Socket Screw, M4 X 25 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 3 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 4 | 232081417 | Hex. Nut M8 |
| 5 | 234040600 | Flat Washer 4 mm |
| 6 | 250000453 | Torx Cutting Screw, M4 X 10 |
| 7 | 250000456 | Thin Socket Screw M10 X 40, Scotch Grip |
| 8 | 250000494 | Socket Screw, M4 X 16 Scotch Grip |
| 9 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 10 | 250200105 | Stainless Flat Washer, 10 mm |
| 11 | 250200113 | Flat Washer, 12 mm |
| 13 | 414115200 | Tie-Rap 180 mm |
| 15 | 503189157 | Washer |
| 17 | 709000089 | O-Ring |
| 22 | 709400631 | Handlebar Clamp |
| 25 | 709401937 | Spring This part replaces 709400773. |
| 26 | 709400790 | Bellows |
| 27 | 709400793 | Handlebar End Piece LH |
| 29 | 709400987 | LH STEERING COVER - Call your local BRP dealership |
| 31 | 709400989 | RH STEERING COVER - Call your local BRP dealership |
| 35 | 709401054 | Handle Grip |
| 36 | 709401055 | Throttle Handle Grip |
| 39 | 709401152 | LH Handlebars |
| 42 | 709401261 | STEERING CENTRAL COVER - Call your local BRP dealership |
| 44 | 709401411 | Lower Steering Column |
| 47 | 709401417 | PITMAN ARM - Call your local BRP dealership |
| 49 | 709401527 | Sensor Sleave |
| 50 | 709401574 | SENSOR SUPPORT - Call your local BRP dealership |
| 51 | 709401800 | Handlebar End-Piece RH |
| 52 | 709401801 | Bushing |
| 53 | 709401938 | Handlebars This part replaces 709401846. |
