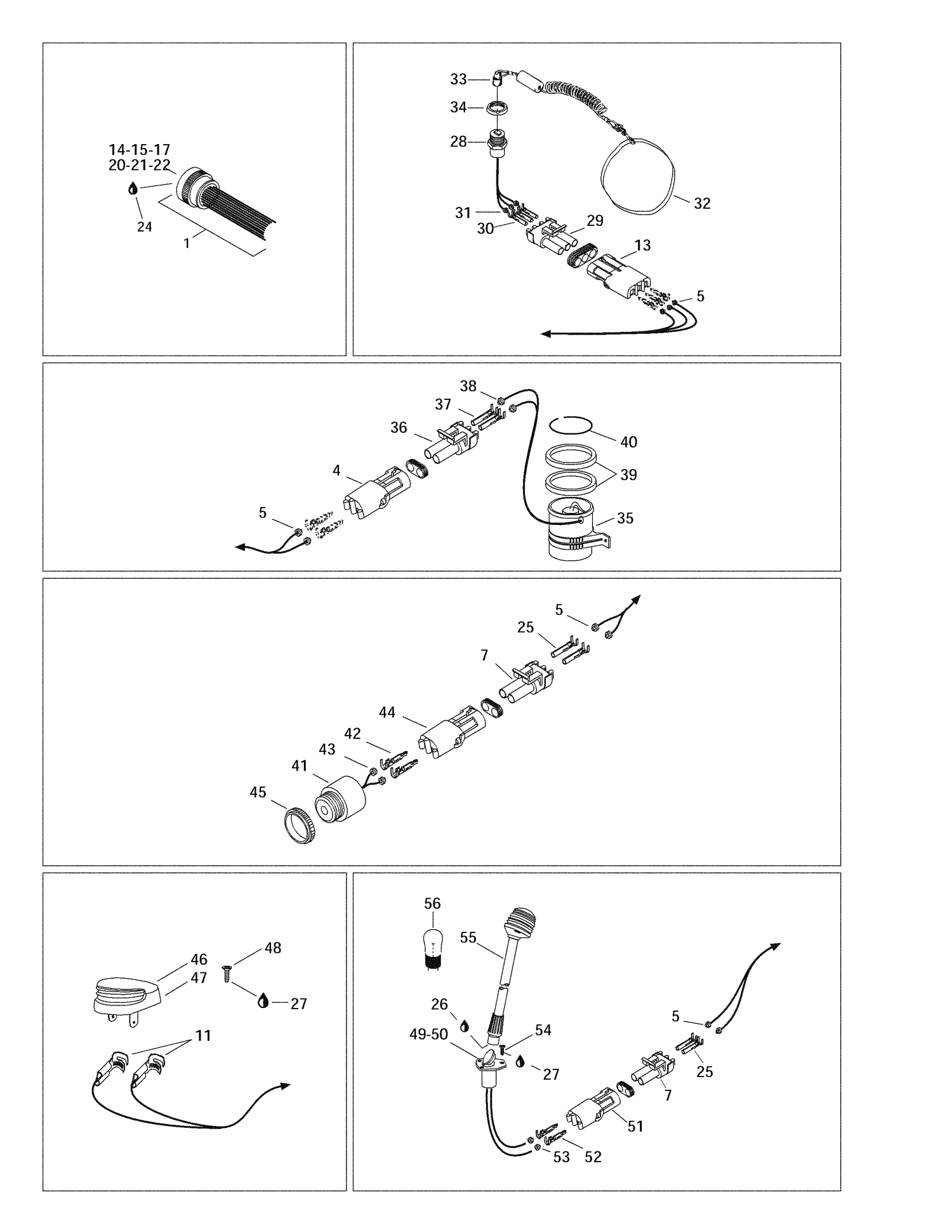

| Ref | Part Number | Description |
|---|
| 2 |
278000156 |
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 3 |
278000161 |
Female Housing, 1 Circuit |
| 4 |
278000217 |
Female Housing, 2 Circuits |
| 5 |
278000218 |
Wire Seal |
| 6 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 7 |
278000220 |
Male Connector, 2 Circuits |
| 8 |
278000221 |
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 9 |
278000222 |
Male Terminal |
| 10 |
278000223 |
Female Terminal |
| 11 |
278000228 |
FEMALE TERMINAL - Call your local BRP dealership |
| 12 |
278000273 |
Male Housing, 3 Circuits |
| 13 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 14 |
278000540 |
Fan Switch |
| 15 |
278000541 |
Light Switch |
| 16 |
278000631 |
Male Terminal |
| 17 |
278000647 |
Switch Nut |
| 18 |
278000738 |
Male Lock, 4 Circuits |
| 19 |
278000739 |
Male Connector, 4 Circuits |
| 20 |
278000870 |
Male Housing(Canon) |
| 21 |
278000871 |
Female Terminal(Canon) |
| 22 |
278000872 |
Female terminal(Canon) |
| 23 |
278000995 |
FEMALE TERMINAL - Call your local BRP dealership |
| 24 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 25 |
409007300 |
Female Terminal |
| 26 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 27 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 29 |
278000273 |
Male Housing, 3 Circuits |
| 30 |
278000223 |
Female Terminal |
| 31 |
278000218 |
Wire Seal |
| 32 |
204470025 |
Safety Strap |
| 33 |
278002199 |
Safety Lanyard, Antitheft This part replaces 295500342. |
| 34 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 36 |
278000220 |
Male Connector, 2 Circuits |
| 37 |
278000223 |
Female Terminal |
| 38 |
278000218 |
Wire Seal |
| 39 |
219704368 |
Seal Tray 1000Mm Long |
| 40 |
204000133 |
BROACH - Call your local BRP dealership |
| 42 |
278000222 |
Male Terminal |
| 43 |
278000218 |
Wire Seal |
| 44 |
278000217 |
Female Housing, 2 Circuits |
| 45 |
278000707 |
Buzzer Nut |
| 46 |
204470071 |
Front Lamp |
| 47 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 48 |
208641660 |
Phillips Screw M4 X 16 This part replaces 211000011. |
| 50 |
204471177 |
Rear Lamp Base Ass'y |
| 51 |
278000217 |
Female Housing, 2 Circuits |
| 52 |
278000222 |
Male Terminal |
| 53 |
278000218 |
Wire Seal |
| 54 |
216142060 |
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership |
