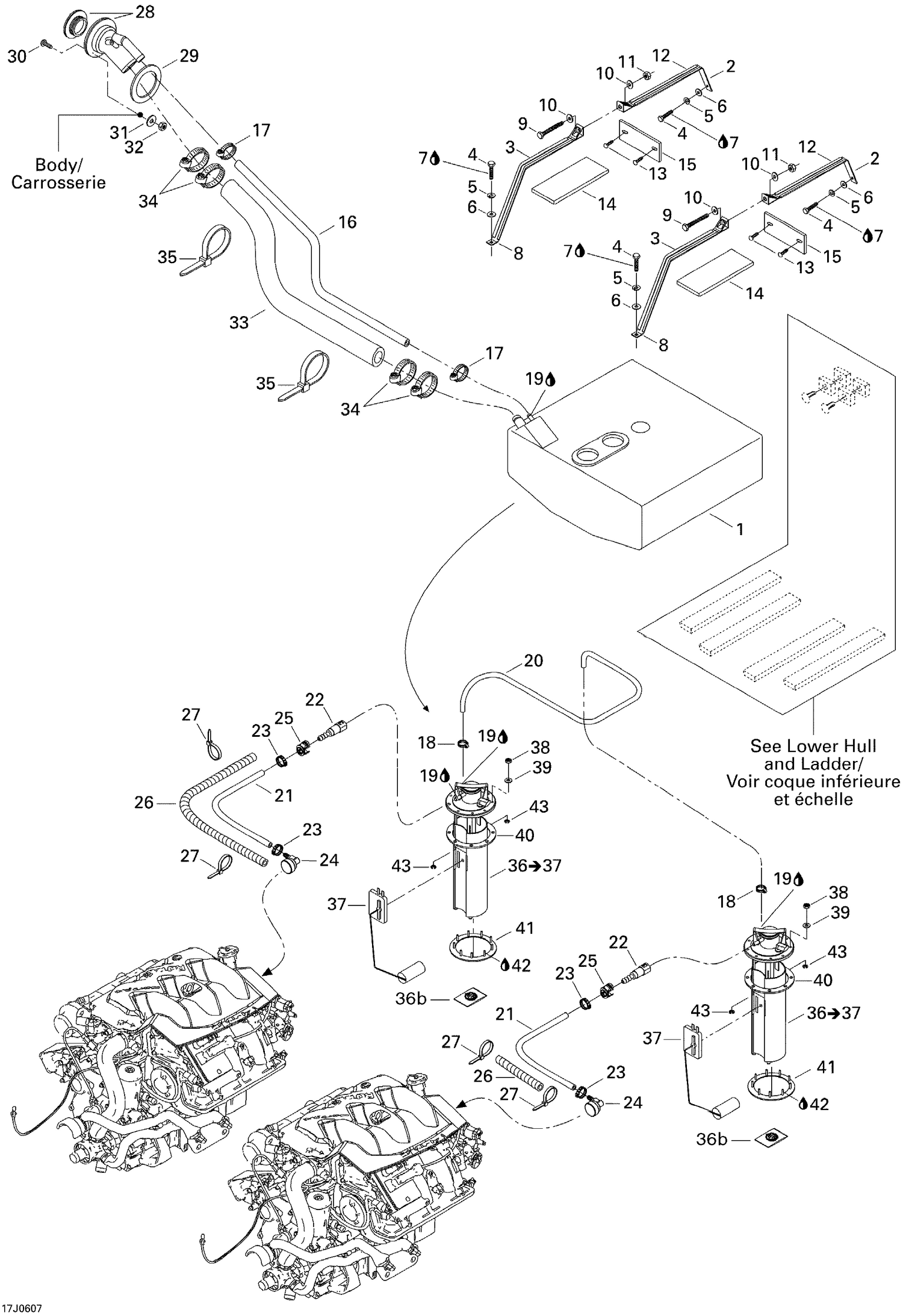

| Ref | Part Number | Description |
|---|
| 1 |
204560473 |
FUEL TANK 42 GAL - C/U - Call your local BRP dealership This part replaces 204560330. |
| 2 |
204560235 |
FUEL TANK STRAP - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - Protector Pad |
| 4 |
207183060 |
Hex. Screw M8 X 30 |
| 5 |
234181601 |
Lock Washer 8 mm, Stainless |
| 6 |
234082600 |
Flat Washer 8 mm, Stainless |
| 7 |
293800005 |
Loctite 271, 10 ml |
| 8 |
204560270 |
FUEL TANK STRAP - Call your local BRP dealership |
| 9 |
207188060 |
HEX. SCREW M8 X 80 - Call your local BRP dealership |
| 10 |
234082600 |
Flat Washer 8 mm, Stainless |
| 11 |
232581600 |
Hex. Elastic Nut M8 |
| 12 |
293830044 |
PROTECTOR PAD - Call your local BRP dealership |
| 13 |
293730006 |
Black, Dart |
| 14 |
204560191 |
NEOPRENE PAD - Call your local BRP dealership |
| 15 |
204060702 |
MUFFLER RUBBER PAD - Call your local BRP dealership |
| 16 |
204560358 |
HOSE 16 MM - Call your local BRP dealership |
| 17 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 18 |
293650170 |
Tridon Gear Clamp |
| 19 |
Not |
Available As Spare Part - Gasket Sealant |
| 20 |
204560178 |
HOSE 1/4 - Call your local BRP dealership |
| 21 |
204560396 |
HOSE 5/16 - Call your local BRP dealership This part replaces 275500626. |
| 22 |
275500428 |
CONNECTOR BOX - Call your local BRP dealership |
| 23 |
293650011 |
Oetiker Clamp |
| 24 |
293710105 |
Elbow Fitting 90° |
| 25 |
275500429 |
STOPPER CONNECTOR - Call your local BRP dealership |
| 26 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 27 |
293750002 |
Tie Wrap 142 mm |
| 28 |
204560182 |
FILLER NECK - Call your local BRP dealership |
| 29 |
204560188 |
SPACER - Call your local BRP dealership |
| 30 |
208643560 |
Phillips Screw M4 X 35 |
| 31 |
234040600 |
Flat Washer 4 mm |
| 32 |
232541600 |
Elastic Stop Nut M4 |
| 33 |
204560294 |
Filler Neck Hose |
| 34 |
293650174 |
NORMA CLAMP - Call your local BRP dealership |
| 35 |
414115200 |
Tie-Rap 180 mm |
| 36b |
219700368 |
Fuel Filter, Bosch |
| 37 |
270600051 |
SENSOR LEVER - Call your local BRP dealership |
| 38 |
232551200 |
Elastic Stop Nut 5 mm |
| 39 |
234052400 |
Flat Washer 5 mm, Stainless |
| 40 |
293250088 |
Gasket |
| 41 |
275500679 |
C-Ring, 9 Studs |
