Home / BRP / 2013 / EXPEDITION / EXPEDITION LE 600HOE, REV XU, 2013 000SGDA00 000SKDC00 / 01- Engine And Engine Support

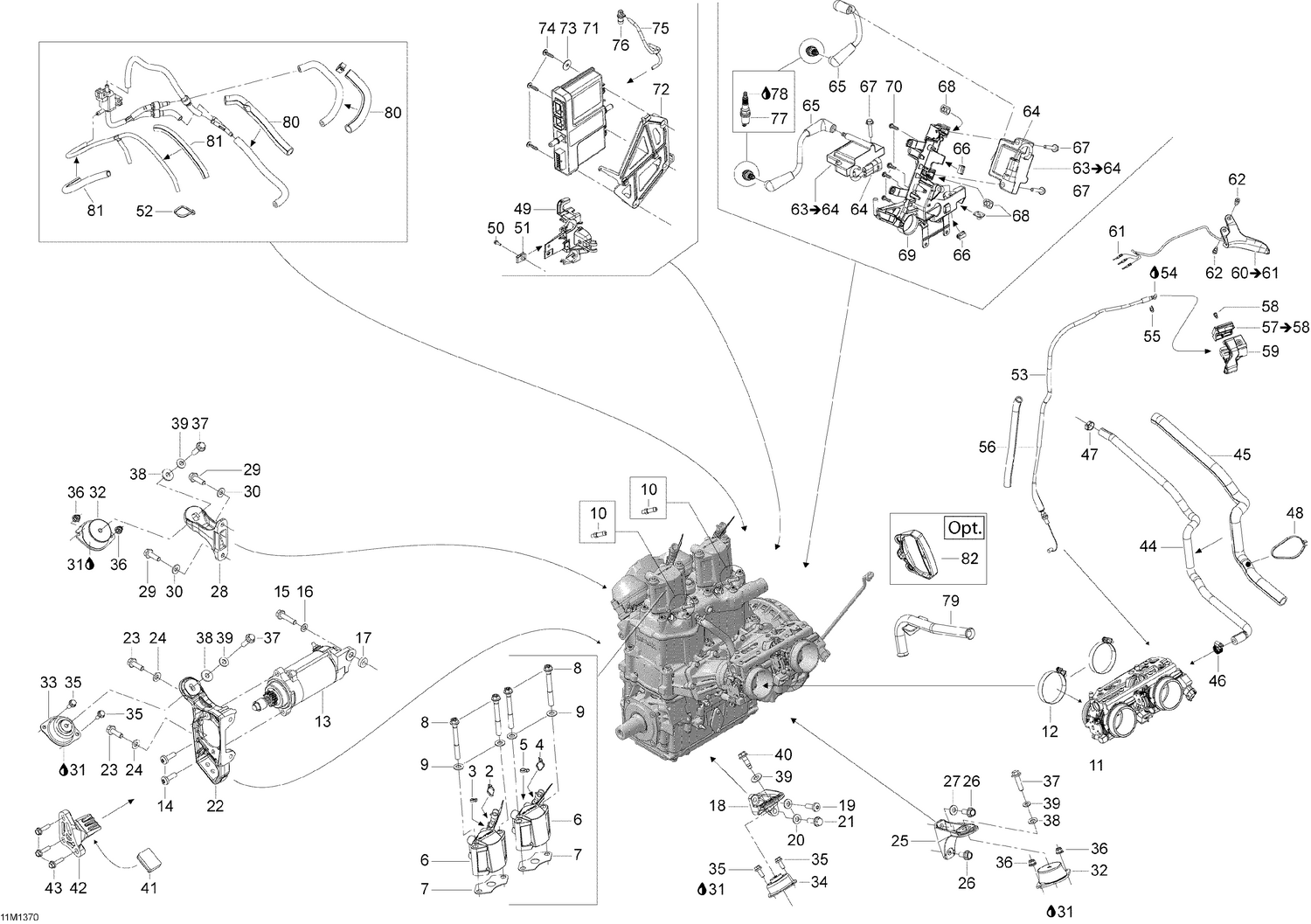

01- Engine And Engine Support

01- Engine And Engine Support

Parts (78)

RefPart NumberDescription
1 Not Available As Spare Part - Engine 600HO E-TEC With Rewind Starter
2 293750002 Tie Wrap 142 mm
3 293750002 Tie Wrap 142 mm
4 293750002 Tie Wrap 142 mm
5 293750002 Tie Wrap 142 mm
6 512061233 Fuel Injector This part replaces 512060727.
7 420430930 Gasket
8 420441187 Torx Flange Screw M10 X 90 -SW 13/T50
9 234001410 Flat Washer 10 mm
10 420924724 Hose Nipple
11 420889201 Throttle Body This part replaces 420889197.
12 293650158 Gemi Clamp
13 515178473 Starter This part replaces 515176858.
14 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
15 207583544 Hex Flange Screw M8 X 35, Scotch Grip
16 250200008 Flat Washer With Teflon 8 mm
17 515176500 Washer
18 512060478 Rear Support, PTO
19 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
20 234281474 Conical Spring Washer M8
21 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
22 512060712 FRONT SUPPORT PTO - Call your local BRP dealership
23 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
24 234281474 Conical Spring Washer M8
25 512060559 Rear Support, MAG
26 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
27 234281474 Conical Spring Washer M8
28 512060469 Front Support, MAG
29 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
30 234281474 Conical Spring Washer M8
31 Not Available As Spare Part - Synthetic Grease
32 512060729 Rubber Mount
33 512061507 Vibration Damper This part replaces 512060387.
34 512060448 Rubber Mount
35 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
36 233261414 Hex. Flange Elastic Nut M6 x 1.0
37 207683044 Hex. Flange Screw M8 X 30
38 503183200 Yellow, Washer
39 234281474 Conical Spring Washer M8
40 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
41 512060627 Stopper
42 512060576 Stopper Support
43 207562544 Hex. Flange Screw M6 X 25
44 509000793 FORMED HOSE OUTPUT TB - Call your local BRP dealership
45 219704408 Tubing 16 Mm 1000Mm Long
46 293650172 Tridon Gear Clamp
47 293650047 Crimp Clamp, 15.3-706R
48 293750008 Tie Wrap 368 mm
49 512060298 Solenoid Support
50 207652044 Hex.Flange Screw M5 X 20
51 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
52 293750001 Tie Wrap 94 mm
53 512060633 Throttle Cable
54 219704453 Was 293550004 Dielectric Grease, 150 g
55 414274500 Circlip
56 219704399 Was 409901700 Tubing (9 mm)
58 414440800 Socket Set Screw M8 X 10
59 512060860 Lower Housing
61 515175232 Male Terminal
62 732601143 Flange Screw
64 710000568 Housing
65 512061126 Ignition Cable, 177mm long This part replaces 512060094.
66 710000992 Clip
67 250000253 Hex. Flange Screw M6 X 1.0 X 30
68 293100003 Nut Welded, M6
69 512060888 Ignition Coils Support This part replaces 512060696.
70 241151640 Hex. Flange Screw K50 X 2.24 X 16
71 512060780 Calibrated Module This part replaces 512060871.
72 512060858 Calibrated Module Support This part replaces 512060297.
73 250200040 Flat Washer
74 250000297 Truss Head Torx Screw K50 X 20
75 219704709 NEEDS DESCRIPTION This part replaces 219704409.
76 414814100 Male Connector
77 415130430 Spark Plug NGK PZFR6F This part replaces 415129432.
78 219704453 Was 293550004 Dielectric Grease, 150 g
79 512060451 Tubing
80 219704400 Was 409901800 Tubing (13 mm)
81 219704407 Tubing 10 MM 1000MM Long
