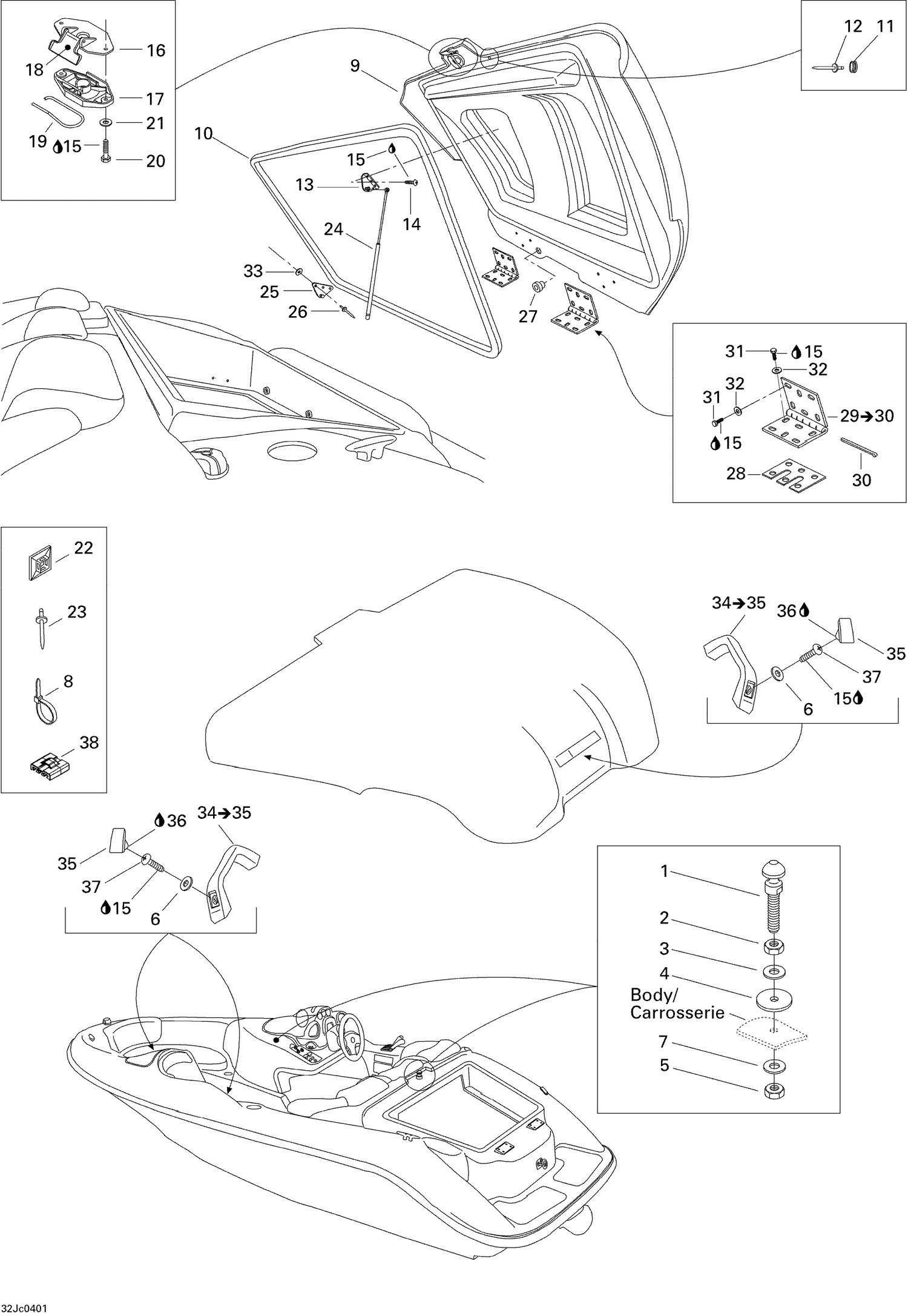

09- Engine Compartment
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204100065 | Latch Stud |
| 2 | 232100600 | Hex. Jam Nut M10 |
| 3 | 234002600 | Flat Washer 10 mm, Stainless |
| 4 | 291000628 | RUBBER WASHER - Call your local BRP dealership |
| 5 | 232501600 | HEX. ELASTIC NUT M10 - Call your local BRP dealership |
| 6 | 234061600 | Stainless Flat Washer M6 |
| 7 | 234002600 | Flat Washer 10 mm, Stainless |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 204071472 | Engine Cover |
| 10 | 219704365 | Was 293200017 Neoprene Seal |
| 11 | 204000084 | BOTTOM SNAP - Call your local BRP dealership |
| 12 | 293150015 | Pop Rivet 1/8” |
| 13 | 204073074 | Shock Bracket This part replaces 204071700. |
| 14 | 207141660 | Hex. Screw M4 X 16 |
| 15 | 293800060 | Loctite 243, 10 ml |
| 16 | 269700109 | Latch Ass'y This part replaces 269700076. |
| 17 | 269700109 | Latch Ass'y This part replaces 269000015. |
| 18 | 269700109 | Latch Ass'y This part replaces 269700077. |
| 19 | 269700017 | Latch Spring |
| 20 | 207162560 | Hex. Screw M6 X 25 |
| 21 | 234061600 | Stainless Flat Washer M6 |
| 22 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 23 | 293150285 | Pop RIvet 1/8 X ,375 This part replaces 293150006. |
| 24 | 204071874 | GAS SHOCK - Call your local BRP dealership |
| 25 | 204071673 | Shock Bracket |
| 26 | 293150043 | Pop Rivet 3/16" |
| 27 | 293720017 | GROMMET - Call your local BRP dealership |
| 28 | 204070047 | SPACER 3.2 MM - Call your local BRP dealership |
| 30 | 204070205 | Cotter Pin M2.5 X 12 |
| 31 | 207162560 | Hex. Screw M6 X 25 |
| 32 | 234061600 | Stainless Flat Washer M6 |
| 33 | 234051600 | Flat Washer M5, Stainless |
| 35 | 204070056 | Snap Cap |
| 37 | 205462560 | SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 293750002 | Tie | Wrap 142 mm 293750002 |
| 293750008 | Tie | Wrap 368 mm 293750008 |
