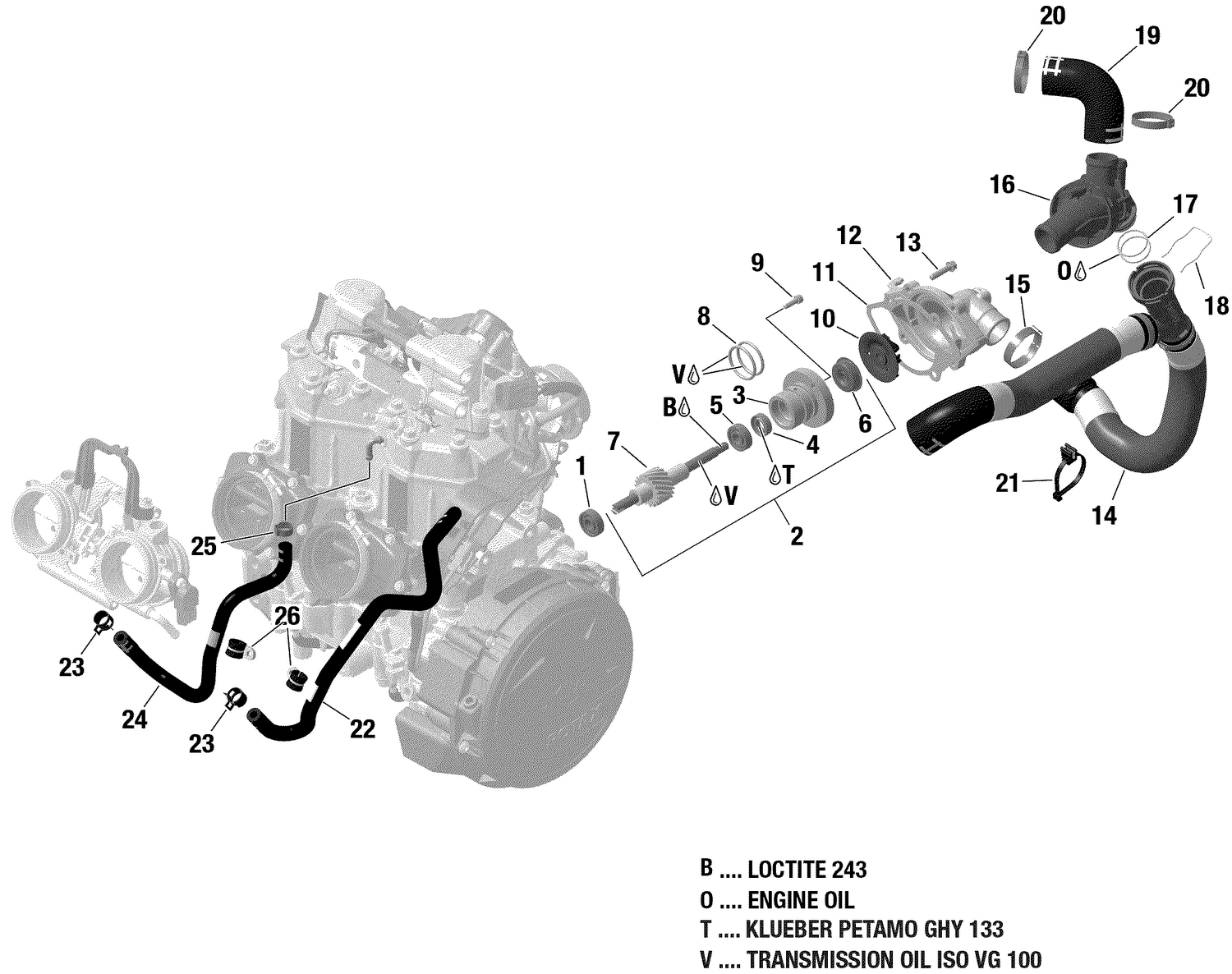

01- Engine Cooling
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420232100 | Ball Bearing |
| 3 | 420847933 | Step Collar |
| 4 | 420230198 | Oil Seal |
| 5 | 420232100 | Ball Bearing |
| 6 | 420650371 | Rotary Seal This part replaces 420650370. |
| 7 | Not | Available As Spare Part - Water Pump Shaft |
| 8 | 420950890 | O-Ring |
| 9 | 420840514 | Allen Screw M5 x 16 |
| 10 | 420222507 | Impeller |
| 11 | 420931813 | Gasket This part replaces 420931812. |
| 12 | 420933632 | WATER PUMP HOUSING - Call your local BRP dealership |
| 13 | 420440234 | Torx Flange Screw M6 X 25 |
| 14 | 420822802 | Formed Hose |
| 15 | 420951293 | Gear Clamp |
| 16 | 420822836 | Thermostat Housing This part replaces 420822833. |
| 17 | 420430062 | O-Ring |
| 18 | 420939344 | Spring Clip |
| 19 | 420822820 | Return Hose |
| 20 | 420951123 | Clamp 34.9-38.1MM |
| 21 | 420951652 | Tie Rap 200 X 4.6 |
| 22 | 420201775 | Formed Hose |
| 23 | 420853511 | Clamp |
| 24 | 420201771 | Formed Hose |
| 25 | 420851458 | Clamp |
