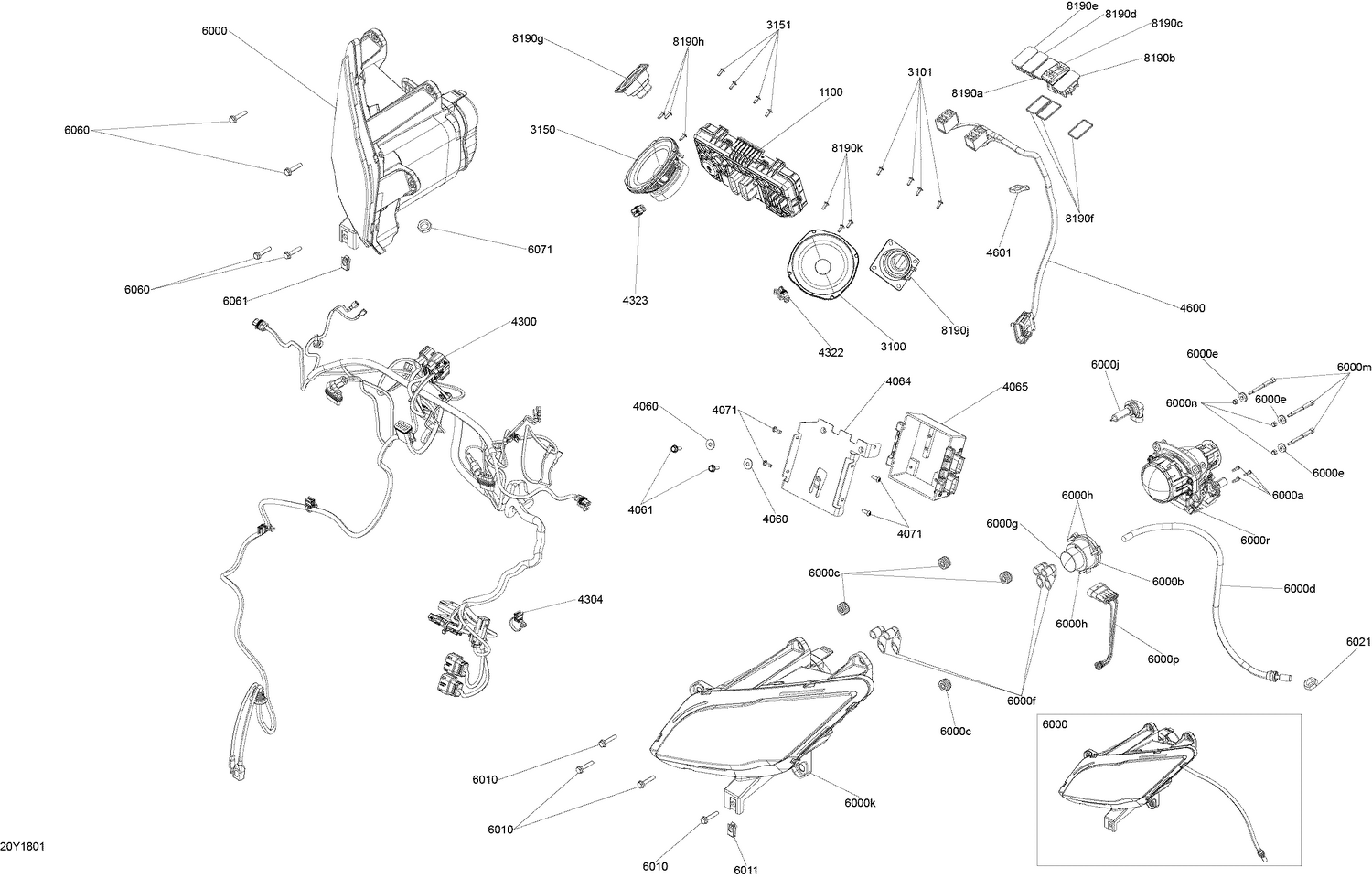

10- Electrical Console - STD
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 3100 | 710005433 | Haut-Parleur 4.5" |
| 3101 | 250000577 | Torx Truss Screw K40 X 12 |
| 3150 | 710005433 | Haut-Parleur 4.5" |
| 3151 | 250000577 | Torx Truss Screw K40 X 12 |
| 4060 | 234062670 | Stainless Steel Flat Washer |
| 4061 | 210261650 | Hex. Flange Screw M6 X 16 |
| 4064 | 710005814 | Amplifier Holder |
| 4065 | 710006566 | Amplifier 6 x 20 Watts This part replaces 710005431. |
| 4071 | 235551454 | Screw-Torx Button Head M5 X 14 |
| 4300 | 710005464 | Dashboard Harness |
| 4304 | 710005037 | Clip Tie-Rap |
| 4322 | 710002162 | Packard Connector With Plug |
| 4323 | 710002162 | Packard Connector With Plug |
| 4600 | 710005527 | Switch Harness |
| 4601 | 414115200 | Tie-Rap 180 mm |
| 6000a | 219800110 | CHROMED SCREW 4X13 - Call your local BRP dealership |
| 6000b | 219800174 | Cover With Seal |
| 6000c | 219800100 | Anti-Vibration Bushing |
| 6000d | 219800111 | Adjustement Cable |
| 6000e | 219800099 | Spacer |
| 6000f | 219800101 | Rubber Vent |
| 6000k | 710000779 | Housing |
| 6000m | 219800106 | Fixing Screw Kit |
| 6010 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 6011 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 6021 | 232170411 | Hex. Jam Nut M14 |
| 6060 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 6061 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 6071 | 232170411 | Hex. Jam Nut M14 |
| 8190a | 710002260 | Plug |
| 8190b | 710007173 | Plug Carling This part replaces 710001999. |
| 8190c | 710002354 | Switch, Heat Grip |
| 8190d | 710007173 | Plug Carling This part replaces 710001999. |
| 8190e | 710007173 | Plug Carling This part replaces 710001999. |
| 8190f | 710002288 | PANEL SEAL - Call your local BRP dealership |
