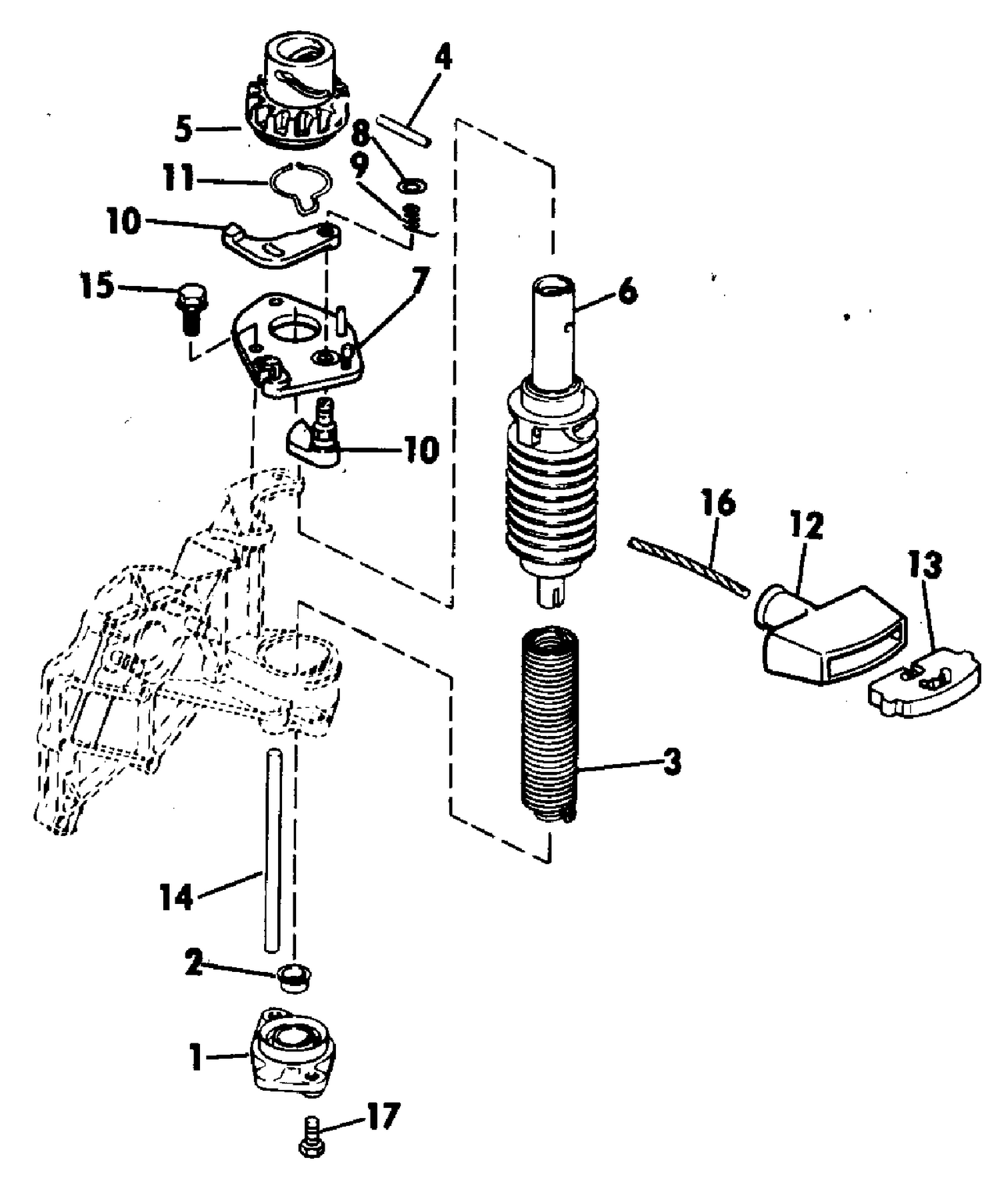

REWIND STARTER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0314501 | PLATE, Spring retainer |
| 2 | 0311259 | BUSHING |
| 3 | 0314500 | MAIN SPRING |
| 4 | 0309686 | ROLL PIN |
| 5 | 0318447 | PINION |
| 6 | 0387509 | SPOOL |
| 7 | 0398683 | STARTER INTERLOCK ASSY. This part replaces 0388320. |
| 10 | 0398682 | CAM FOLLOWER & LEVER This part replaces 0388322. |
| 11 | 0309736 | SPRING |
| 12 | 0207555 | HANDLE |
| 13 | 0389713 | ANCHOR, Rope to handle This part replaces 0320430. |
| 14 | 0311284 | GUIDE, Rope |
| 15 | 0318468 | SCRAEW, Latch to handle |
| 0388321 | 0388321 | REWIND STARTER ASSY. |
