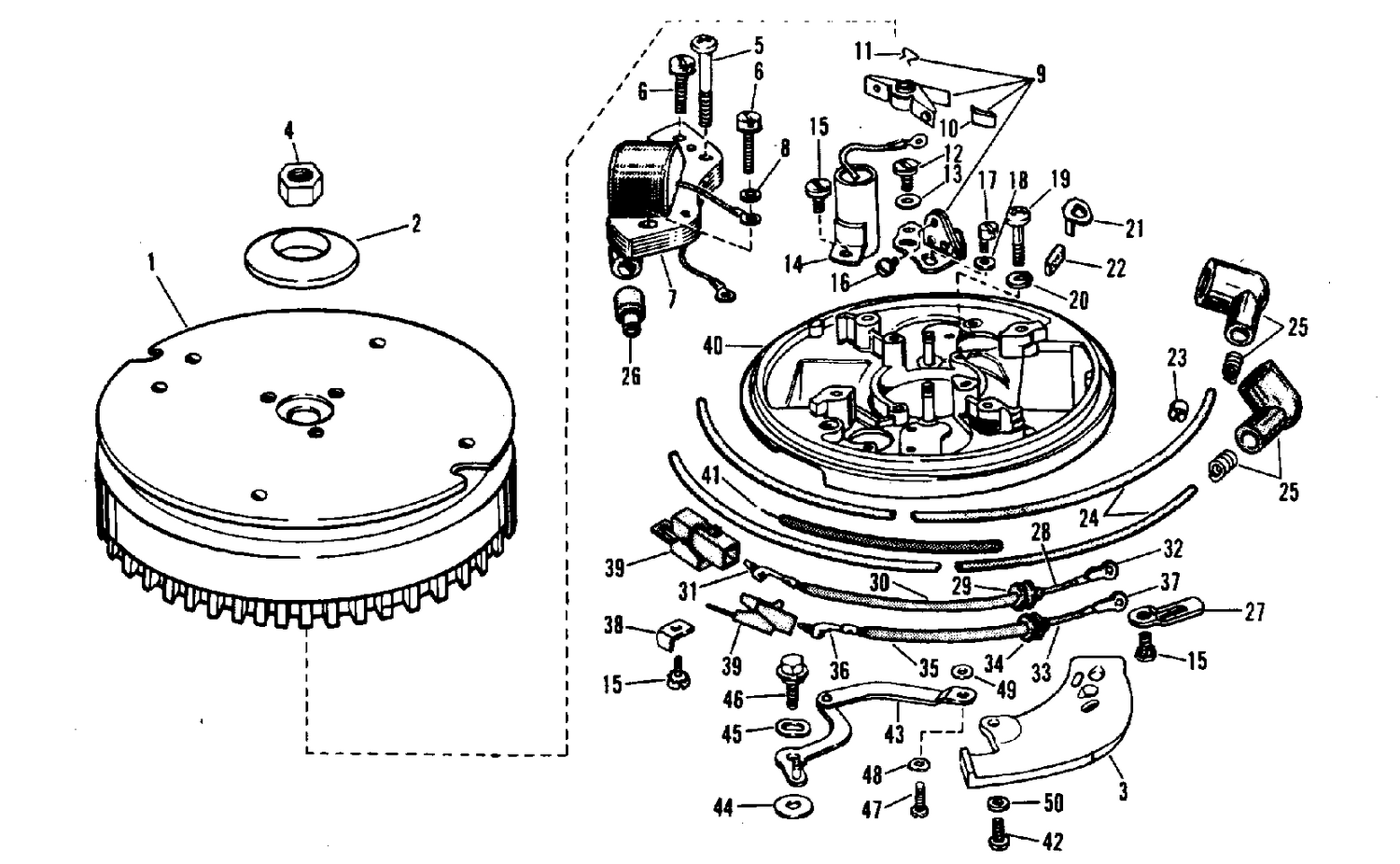

| Ref | Part Number | Description |
|---|
| 1 |
0580465 |
FLYWHEEL & COVER ASSY |
| 2 |
0311232 |
COVER |
| 3 |
0309872 |
CAM, Throttle control |
| 4 |
0301988 |
NUT |
| 5 |
0510191 |
SCREW |
| 6 |
0510397 |
SCREW |
| 7 |
0580416 |
CLIP & LAMINATION |
| 9 |
0580148 |
BEAKER,Assy |
| 12 |
0510278 |
SCREW |
| 13 |
0510208 |
BOW WASHER |
| 14 |
0580321 |
CONDENSER |
| 16 |
0510194 |
SCREW |
| 17 |
0510185 |
ECCENTRIC SCREW |
| 18 |
0510391 |
BOW WAHSER,Eccentric scr. |
| 19 |
0310350 |
SCREW, Armature plate |
| 20 |
0360252 |
WASHER This part replaces 0306311. |
| 21 |
0510188 |
CLIP, Oiler |
| 22 |
0510189 |
OILER WICK |
| 23 |
0120783 |
BAND, Identification |
| 24 |
0510239 |
LEAD, High tension |
| 27 |
0510190 |
CLAMP |
| 28 |
0580482 |
SHORTING WIRE ASSY., Long |
| 30 |
0511723 |
TERMINAL This part replaces 0309861. |
| 32 |
71A1063 |
TERMINAL |
| 33 |
0580483 |
SHORTING WIRE ASSY., Short |
| 35 |
0511723 |
TERMINAL This part replaces 0309861. |
| 37 |
71A1063 |
TERMINAL |
| 38 |
0309660 |
BRACKET |
| 40 |
0580471 |
PLATE, Armature |
| 42 |
0312944 |
SCREW, Cam |
| 43 |
0381863 |
ARM AND LINK |
| 45 |
0310054 |
BOW WASHER, Knob to bracket |
| 46 |
0310053 |
SCREW, Interlock arm |
| 47 |
0309816 |
SCREW, Link to plate |
| 48 |
0510412 |
BOW WASHER |
| 0580186 |
0580186 |
HIGH TENSION LEAD ASSEMBLY |
| 0580561 |
0580561 |
ARMATURE PLATE ASSY |
