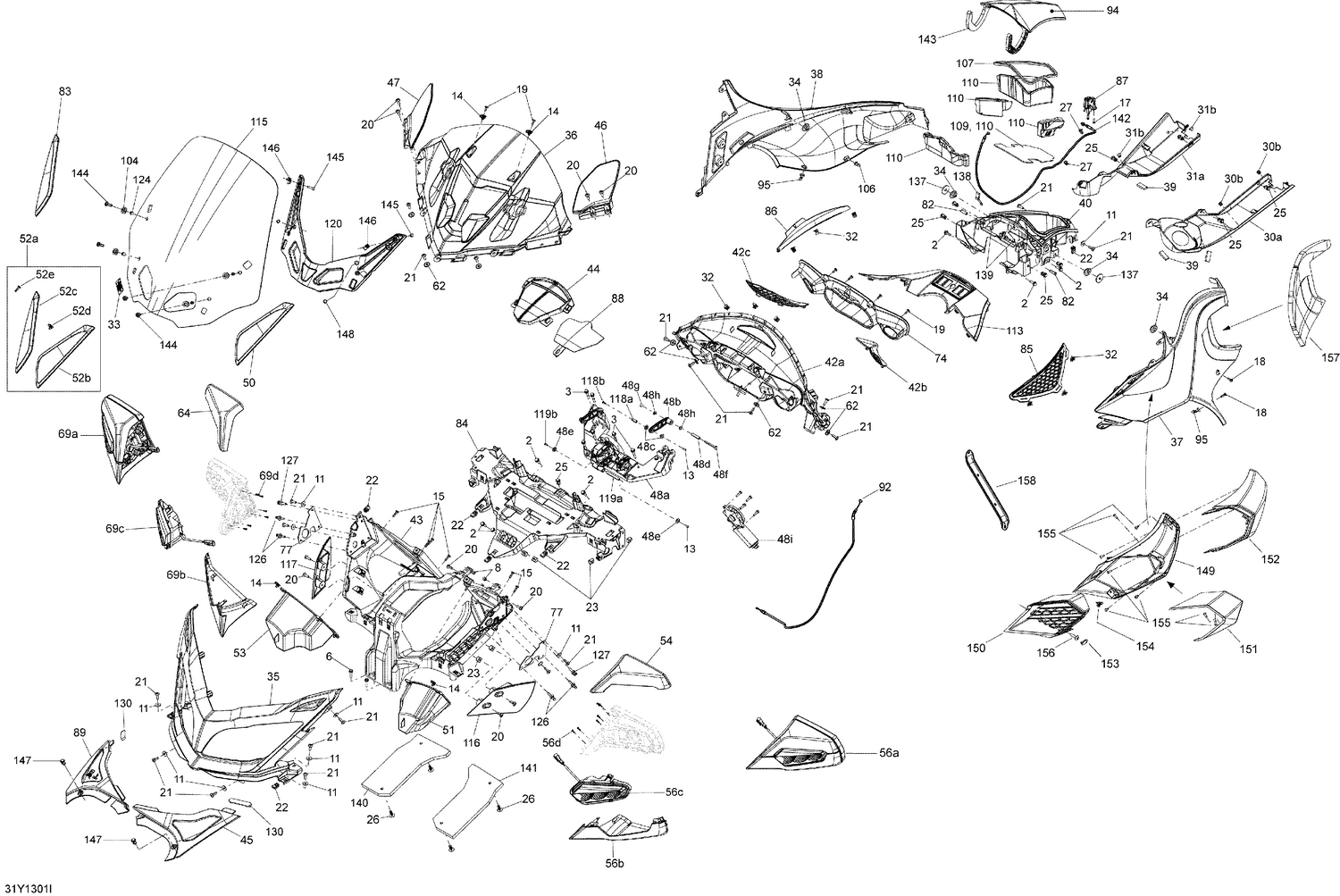

09- Body And Accessories (Heat Management Kit)
Parts (101)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3 | 207663544 | Hex. Flange Screw M6 X 35 |
| 6 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 8 | 232862412 | Square Nut M6 |
| 11 | 234062670 | Stainless Steel Flat Washer |
| 13 | 250000565 | Hexalob Screw M4 X 10 |
| 14 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 15 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 17 | 250000287 | Flange Torx Screw K40 X 16 |
| 18 | 250000459 | Torx Screw, K50X16 |
| 19 | 250000487 | Torx Screw, Nylon Patch, M5 X 14 |
| 20 | 250000488 | Torx Truss Screw M6 X 20 |
| 21 | 250000350 | Torx Truss Screw M6 X 20 |
| 22 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 23 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 25 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 26 | 293730006 | Black, Dart |
| 27 | 293750002 | Tie Wrap 142 mm |
| 30b | 293750044 | Tie Rap Mount |
| 31b | 293750044 | Tie Rap Mount |
| 32 | 517302785 | Edge Clip |
| 33 | 704903339 | CAUTION DECAL, WINDSHIELD - Call your local BRP dealership |
| 34 | 705000321 | Oval Washer |
| 36 | 705006186 | Upper Console |
| 39 | 219704364 | Neoprene Seal (1PAC=3M) |
| 40 | 705002726 | Glove Box |
| 42b | 705003199 | LH SPEAKER GRILL - Call your local BRP dealership |
| 42c | 705003200 | RH SPEAKER GRILL - Call your local BRP dealership |
| 43 | 705002743 | Console Support |
| 44 | 705002746 | Guide Chart Support |
| 45 | 705002839 | Service Center Access Panel LH |
| 46 | 705002841 | LH Upper Air Deflector |
| 47 | 705002842 | RH Upper Air Deflector |
| 48c | 705003267 | Sleeve |
| 48e | 705003267 | Sleeve |
| 48f | 207065060 | Hex. Screw M6 X 50 |
| 48g | 232561200 | Brass Elastic Stop Nut M6 |
| 48h | 234061600 | Stainless Flat Washer M6 |
| 48i | 278002579 | Windshield Motor |
| 51 | 705003092 | LH SPEAKER HOUSING - Call your local BRP dealership |
| 53 | 705009165 | SPEAKER RH - Call your local BRP dealership This part replaces 705003093. |
| 54 | XXX | Not Available As Spare Parts |
| 56b | 705003148 | LH Lower Mirror Shell |
| 56c | 710001510 | LH Front Flasher Unit |
| 56d | 250000610 | Flange Screw K30 X 12 |
| 62 | 234062410 | Flat Washer 6 mm |
| 64 | XXX | Not Available As Spare Parts |
| 69b | 705003159 | RH Lower Mirror Shell |
| 69c | 710001511 | RH Front Flasher Unit |
| 69d | 250000610 | Flange Screw K30 X 12 |
| 74 | 705003163 | Dashboard Bezel |
| 77 | 705003779 | Console Support Plate |
| 82 | 705003295 | Retainer Pin |
| 84 | 705003384 | Console Cross-Support |
| 85 | 705003385 | LH Upper Side Panel Grille |
| 86 | 705003386 | RH Upper Side Panel Grille |
| 87 | 705007380 | Push Latch This part replaces 705006886. |
| 88 | 705009360 | Guide Chart This part replaces 705003472. |
| 89 | 705005903 | Service Center Access Panel RH |
| 92 | 517305460 | Hood Cable This part replaces 517304413. |
| 95 | 705003746 | Angled Knob |
| 104 | 705003756 | Windshield Grommet |
| 106 | 705003842 | Knob |
| 107 | 219800143 | NEOPRENE SEAL, METER - Call your local BRP dealership |
| 109 | 219800172 | OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership This part replaces 705004424. |
| 110 | 219800172 | OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership |
| 113 | 705004461 | Center Panel |
| 115 | 705004740 | Windshield |
| 116 | 705004924 | LH Lower Air Deflector |
| 117 | 705004925 | RH Lower Air Deflector |
| 118b | 250000565 | Hexalob Screw M4 X 10 |
| 119b | 250000565 | Hexalob Screw M4 X 10 |
| 120 | 705005405 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 124 | 705005756 | Sleeve |
| 130 | 705006824 | Néoprene Pad |
| 137 | 705007085 | Rubber Washer |
| 138 | 705003748 | Glove Box Spring |
| 139 | 705600272 | Circlip |
| 140 | 707800341 | RH Acoustic Foam |
| 141 | 707800349 | LH Acoustic Foam |
| 142 | 705003625 | GLOVE BOX CABLE - Call your local BRP dealership |
| 143 | 705006111 | GLOVE BOX DOOR ASS'Y - Call your local BRP dealership |
| 144 | 250000350 | Torx Truss Screw M6 X 20 |
| 145 | 250000455 | Torx Screw M5 X 25 |
| 146 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 147 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 148 | 705005666 | Windshield Rubber Bumper |
| 149 | 705010510 | LH Structure |
| 149 | 705010512 | RH Structure |
| 150 | 705010439 | LH Air Inlet |
| 150 | 705010440 | RH Air Inlet |
| 151 | 705010437 | LH Air Scoop |
| 151 | 705010438 | RH Air Scoop |
| 152 | 705010441 | LH AIR SCOOP FAIRING - Call your local BRP dealership |
| 152 | 705010442 | RH Air Scoop Fairing |
| 153 | 219800380 | CAP KIT - Call your local BRP dealership |
| 154 | 517302785 | Edge Clip |
| 155 | 250000577 | Torx Truss Screw K40 X 12 |
| 156 | 250000284 | Torx Screw M6 x 25 |
| 157 | 705010547 | LH Acoustic Foam |
| 157 | 705010548 | RH Acoustic Foam |
