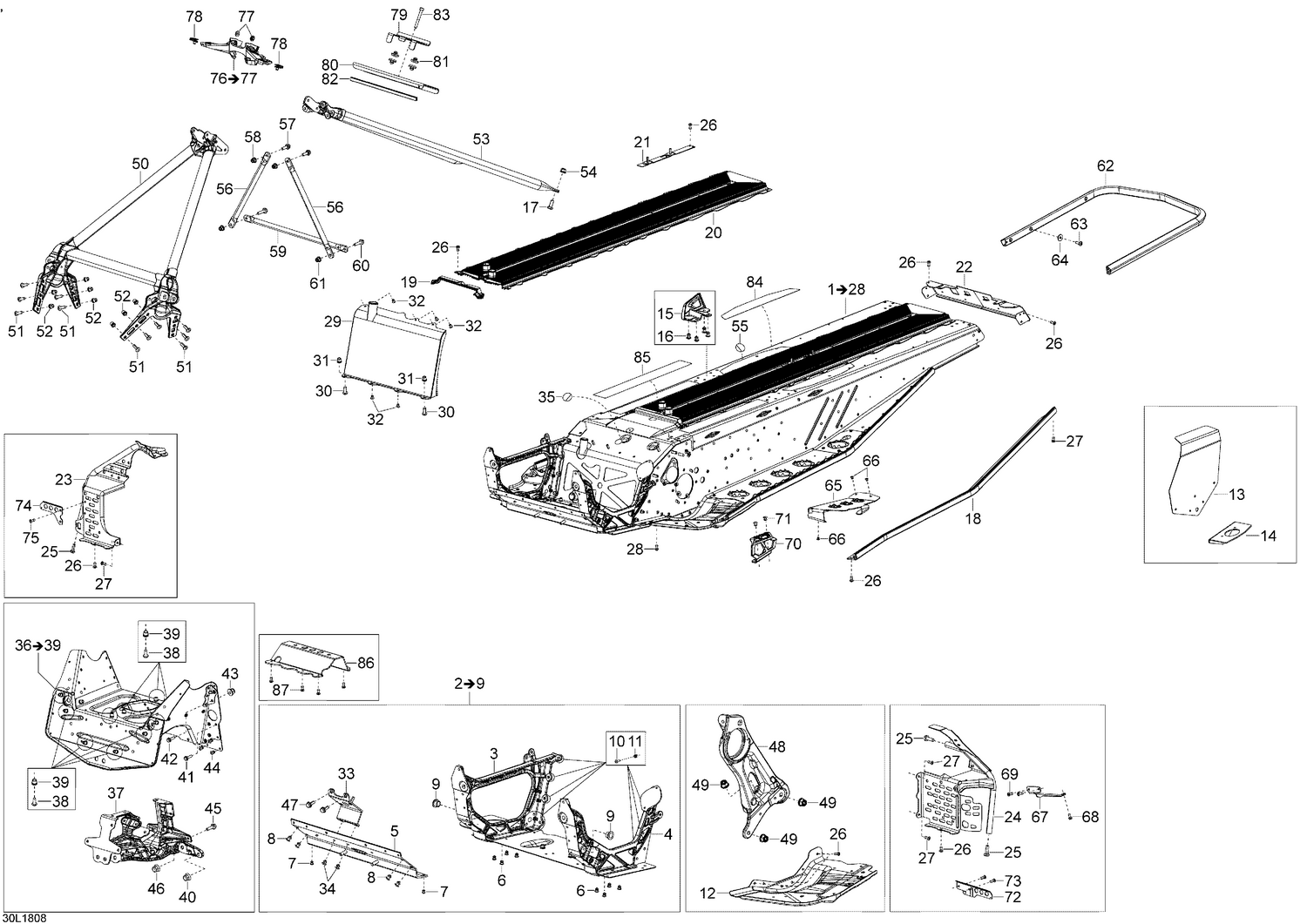

| Ref | Part Number | Description |
|---|
| 3 |
518326795 |
R.H. Member |
| 4 |
518326796 |
L.H. Member |
| 5 |
518326198 |
Front Member |
| 6 |
390909100 |
Avex Rivet |
| 7 |
293150120 |
Hemlock Rivet 6.5 mm |
| 8 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 9 |
505072690 |
Leg Bushing |
| 12 |
518327242 |
Front left tunnel |
| 12 |
518327243 |
Front right tunnel |
| 13 |
518329579 |
LH Rear Arm Support |
| 13 |
518329580 |
RH Rear Arm Support |
| 14 |
518329581 |
Rear Support |
| 15 |
518328435 |
No Paint, LH Rear Base |
| 15 |
518328436 |
No Paint, RH Rear Base |
| 16 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 17 |
207182086 |
Hex. Cap Screw M8 x 20 |
| 18 |
518327517 |
Side Profile LH |
| 18 |
518327518 |
Side Profile RH |
| 19 |
518326656 |
Seal |
| 22 |
518327240 |
Rear Cap |
| 23 |
518328940 |
RH Stirrup |
| 24 |
518328528 |
LH Stirrup |
| 25 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 26 |
390909200 |
Avex Rivet |
| 27 |
390909100 |
Avex Rivet |
| 28 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 29 |
518326485 |
Front Radiator |
| 32 |
390909200 |
Avex Rivet |
| 33 |
518325943 |
MAG Engine Support |
| 34 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 35 |
518325560 |
Adhesive Patch |
| 40 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 41 |
210262050 |
Washer Head Hexagonal Screw |
| 42 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 43 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 44 |
293150179 |
MONOBOLT RIVET 4.8 - Call your local BRP dealership |
| 47 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 48 |
518327460 |
Driven Pulley Support |
| 49 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 54 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 55 |
518325560 |
Adhesive Patch |
| 56 |
518325114 |
Upper Lateral Column Support |
| 57 |
207662056 |
Socket Head Screw M6x20 8.8 |
| 58 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 59 |
518325115 |
Center Column Support |
| 60 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 61 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 62 |
518328071 |
Black Rear Bumper |
| 63 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 64 |
224061201 |
Flat Washer |
| 65 |
518327979 |
Footrest LH, Black (Opt.) |
| 65 |
518327980 |
Footrest RH, Black (Opt.) |
| 67 |
518328079 |
Brake cover support black |
| 68 |
390909200 |
Avex Rivet |
| 69 |
293150103 |
Pop Rivet 3/16 |
| 70 |
518327507 |
Black LH Foot Support |
| 70 |
518327508 |
Black RH Foot Support |
| 71 |
293150120 |
Hemlock Rivet 6.5 mm |
| 72 |
518327613 |
Spring Support Plate LH |
| 73 |
293150103 |
Pop Rivet 3/16 |
| 74 |
518327614 |
Spring Support Plate RH |
| 75 |
390909200 |
Avex Rivet |
| 76 |
518327145 |
Sub A Support |
| 78 |
250000958 |
Panel Nut M5 X 0.8 |
| 79 |
513033746 |
Upper Support Plate |
| 81 |
605452114 |
Plug |
| 83 |
205065044 |
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership |
| 84 |
516006448 |
Fuel Tank Protection Decal |
| 87 |
293730042 |
Full Moon Dart 5 mm |
