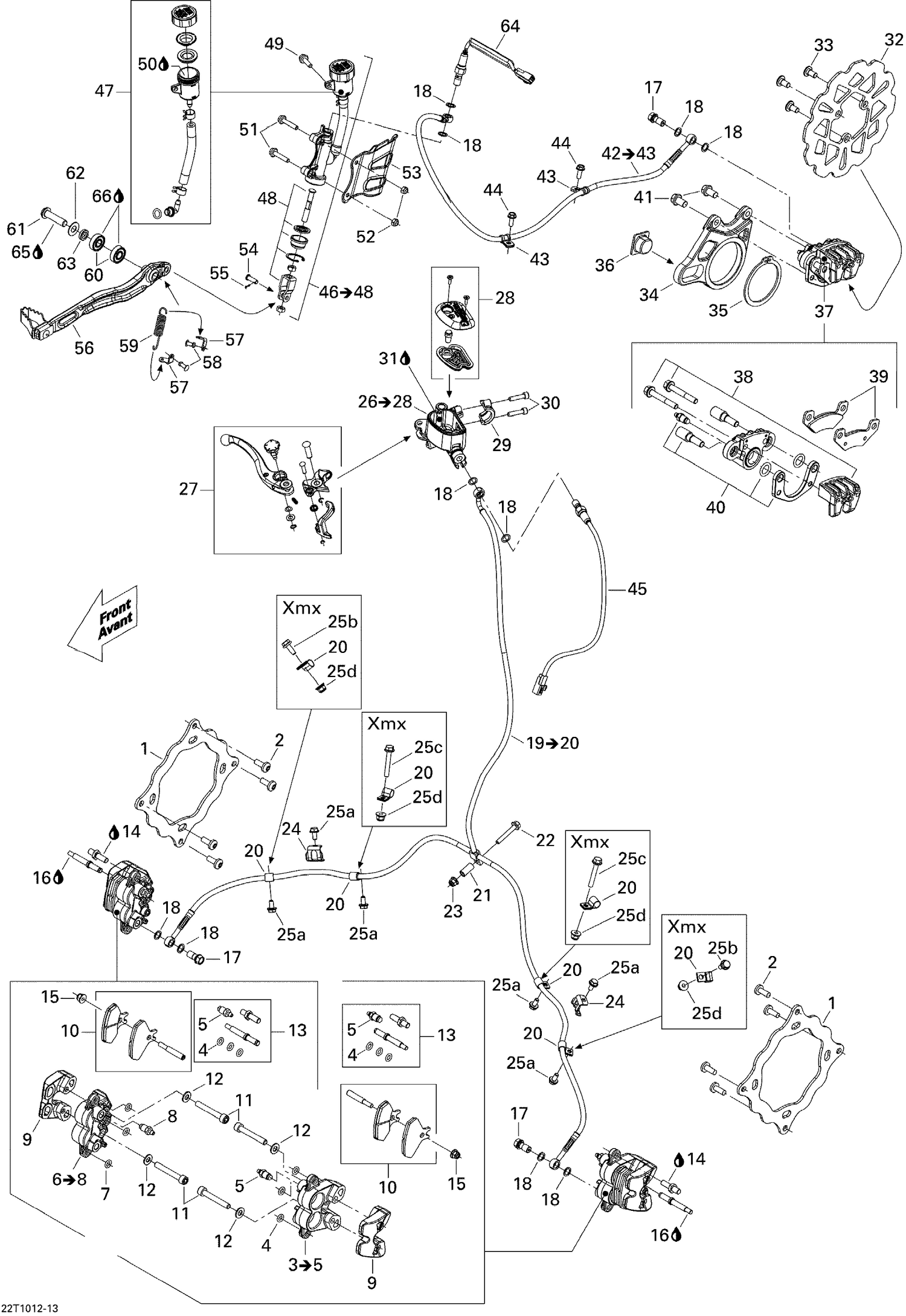

| Ref | Part Number | Description |
|---|
| 1 |
705600400 |
FRONT BRAKE DISC - Call your local BRP dealership |
| 2 |
250000740 |
Torx Screw M8 X 20, Scotch Grip This part replaces 250000117. |
| 4 |
705600425 |
PIN SLIDE KIT - Call your local BRP dealership |
| 5 |
705600425 |
PIN SLIDE KIT - Call your local BRP dealership This part replaces 705600568. |
| 7 |
705600425 |
PIN SLIDE KIT - Call your local BRP dealership |
| 8 |
705600425 |
PIN SLIDE KIT - Call your local BRP dealership This part replaces 705600568. |
| 9 |
705600560 |
OUTER CALIPER - Call your local BRP dealership |
| 10 |
705600402 |
Front Brake Pad Kit |
| 11 |
205085534 |
SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership |
| 12 |
234081430 |
Flat Washer M8 |
| 13 |
705600425 |
PIN SLIDE KIT - Call your local BRP dealership |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
233261434 |
Flange Elastic Nut M6 |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
705600628 |
Banjo Bolt |
| 18 |
705601628 |
Copper Washer This part replaces 705600310. |
| 20 |
293650256 |
Clamp This part replaces 705600459. |
| 21 |
512059812 |
SPACER - Call your local BRP dealership |
| 22 |
207664034 |
Hex. Flange Screw M6 X 40 |
| 23 |
233261434 |
Flange Elastic Nut M6 |
| 24 |
705600553 |
Hose Holder |
| 25a |
207561234 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 27 |
705600491 |
Brake Lever Kit |
| 28 |
705600493 |
CAP SET - Call your local BRP dealership |
| 29 |
705600619 |
BRACKET KIT - Call your local BRP dealership |
| 30 |
205062534 |
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership |
| 31 |
293600131 |
HYDRAULIC OIL - Call your local BRP dealership This part replaces 293600062. |
| 32 |
705600410 |
REAR DISC BRAKE - Call your local BRP dealership |
| 33 |
250000330 |
SHOULDER SCREW M8 - Call your local BRP dealership |
| 34 |
705600411 |
REAR CALIPER SUPPORT - Call your local BRP dealership |
| 35 |
293370045 |
SNAP RING - Call your local BRP dealership |
| 36 |
705600412 |
GUIDE REAR CALIPER - Call your local BRP dealership |
| 37 |
705600713 |
Rear Caliper Ass'y |
| 38 |
705600490 |
ANVIL KIT - Call your local BRP dealership |
| 39 |
705600711 |
Brake Pad Kit |
| 40 |
705600714 |
BRACKET KIT - Call your local BRP dealership |
| 41 |
250000313 |
HEX. FLANGED SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 43 |
293650256 |
Clamp This part replaces 705600459. |
| 44 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 45 |
710003837 |
Switch This part replaces 710000853. |
| 47 |
705600740 |
SET TANK ASS'Y - Call your local BRP dealership |
| 48 |
705600498 |
ROD SET - Call your local BRP dealership |
| 49 |
207662034 |
Hex. Flange Screw M6 X 20 |
| 50 |
293600131 |
HYDRAULIC OIL - Call your local BRP dealership This part replaces 293600062. |
| 51 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 52 |
232561434 |
Elastic Stop Nut M6 |
| 53 |
705600538 |
Hose Protector |
| 54 |
250400031 |
Clevis Pin |
| 55 |
250400032 |
Cotter Pin |
| 56 |
705600534 |
BRAKE PEDAL - Call your local BRP dealership |
| 57 |
705600631 |
FIXATION PLATE - Call your local BRP dealership |
| 58 |
390407200 |
Pop Rivet 3/16” |
| 59 |
705600635 |
BRAKE PEDAL SPRING - Call your local BRP dealership |
| 60 |
705600458 |
Bearing |
| 61 |
205404036 |
SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership |
| 62 |
506152194 |
Washer |
| 63 |
293900087 |
Bushing |
| 64 |
710003838 |
BRAKE SWITCH - Call your local BRP dealership This part replaces 710001377. |
| 65 |
293800060 |
Loctite 243, 10 ml |
