Parts Catalog

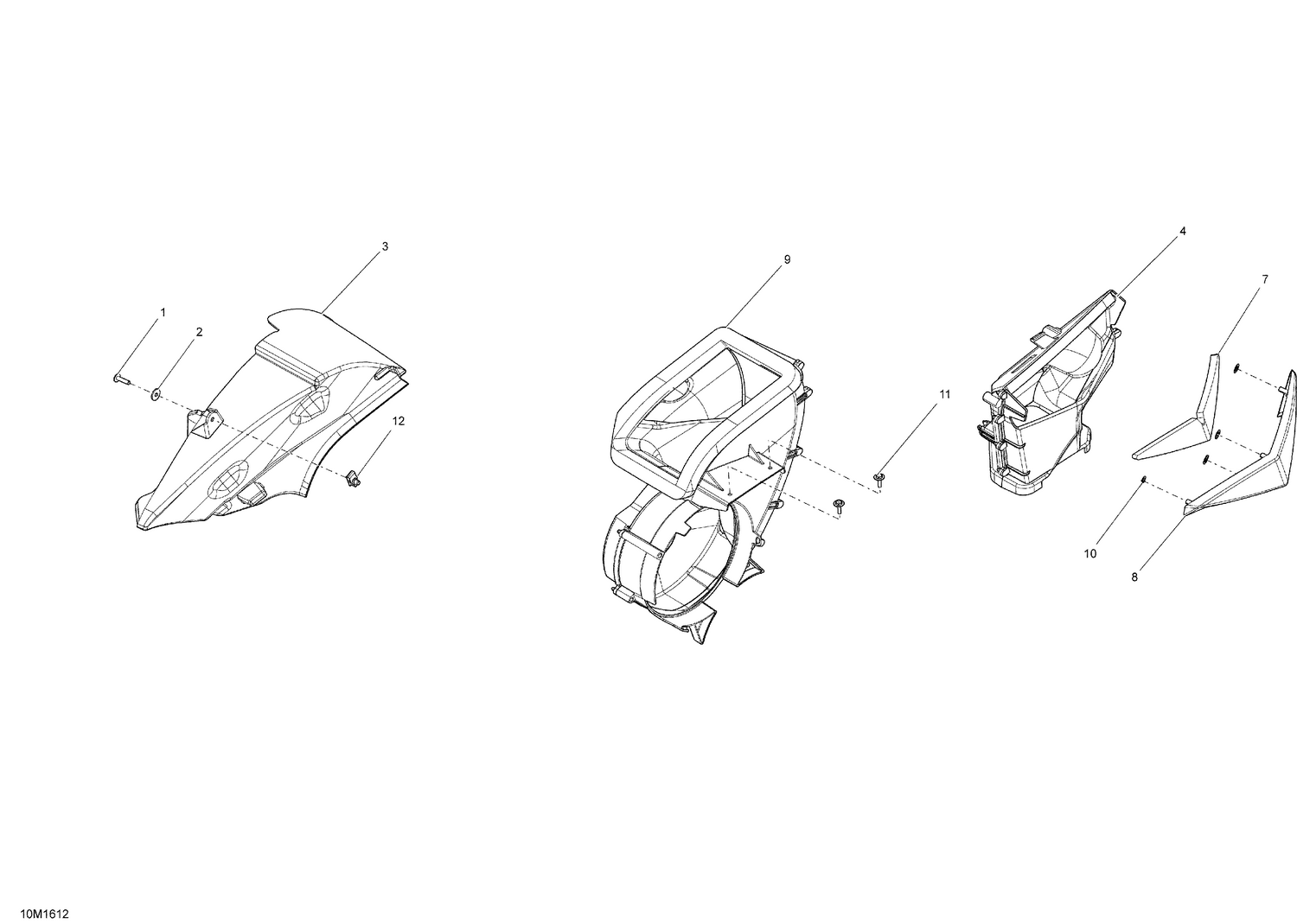

01- Cooling System

Parts (9)

Ref	Part Number	Description
1	250000724	Torx Screw M5 X 20
2	391301600	Washer
3	509000451	Air Chamber
4	509000452	Outlet Duct
7	509000574	Air Inlet Foam
8	509000611	Outlet Air Deflector
9	509000840	Inlet Duct
10	732610072	Push Nut
11	250000725	Screw M4 X 16
