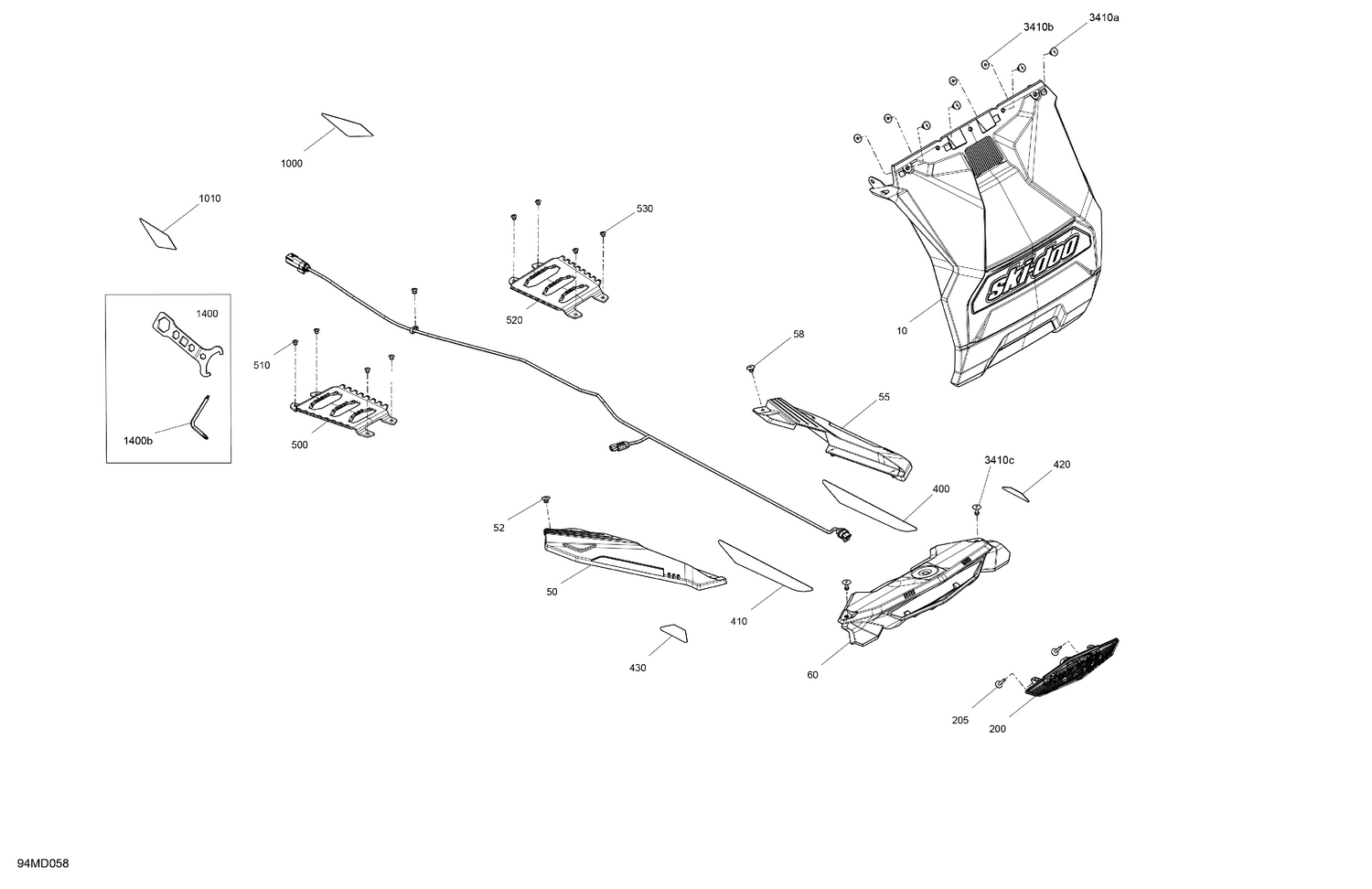

09- Miscellaneous - Utilities
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001640 | Snow Gard Ass'y |
| 50 | 520001854 | LH Rear Guard |
| 52 | 293150103 | Pop Rivet 3/16" |
| 55 | 520001858 | RH Rear Guard |
| 58 | 293150103 | Pop Rivet 3/16" |
| 60 | 520001487 | Light Fairing |
| 200 | 520002710 | Tail Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 420 | 520001842 | Red, RH Rear Reflector |
| 430 | 520001860 | Red, LH Rear Reflector |
| 500 | 520002896 | Deep Black, Passenger Footrest |
| 510 | 293150102 | Rivet 3/16" |
| 520 | 520002896 | Deep Black, Passenger Footrest |
| 530 | 293150102 | Rivet 3/16" |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 3410a | 293150104 | Pop Rivet 3/16" |
| 3410b | 517124300 | Washer |
