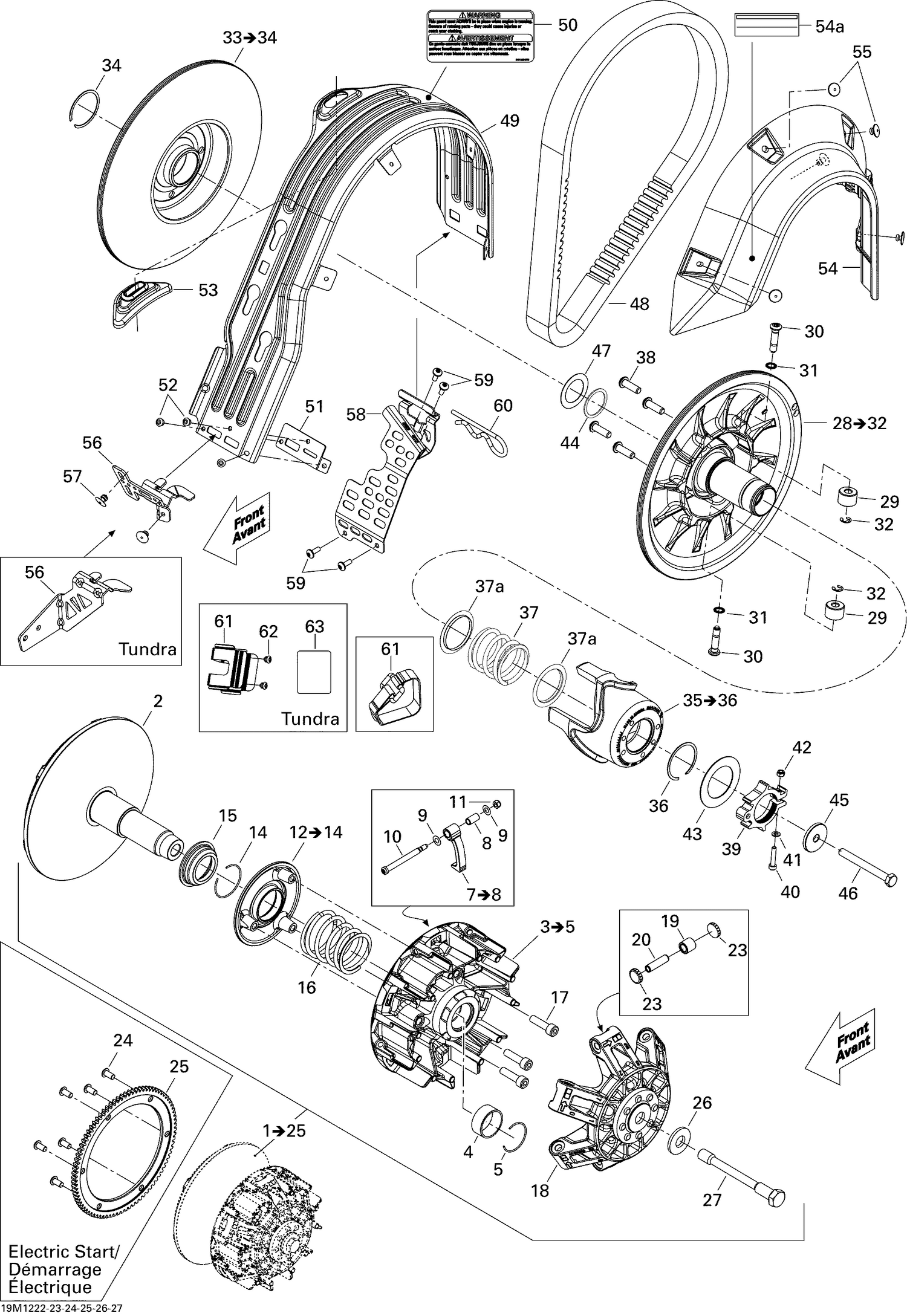

05- Pulley System
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417223534 | Fixe Flange Ass'y |
| 5 | 293370065 | Circlip |
| 9 | 417223255 | Thrust Washer |
| 10 | 417223694 | Ramp Axle This part replaces 417223609. |
| 11 | 232551414 | Elastic Stop Nut M5 |
| 14 | 293370063 | CIRCLIP - Call your local BRP dealership |
| 15 | 417223155 | SPRING SEAT - Call your local BRP dealership |
| 16 | 417223315 | Spring Clutch |
| 17 | 250000473 | SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership |
| 18 | 417223778 | GOVERNOR CUP ASS'Y - Call your local BRP dealership This part replaces 417223565. |
| 19 | 417223767 | Roller This part replaces 417223387. |
| 20 | 417223257 | Roller Axle |
| 21 | 293300145 | O-ring |
| 23 | 417223919 | Slider Shoe This part replaces 417223269. |
| 24 | 250000751 | Torx Screw M8 X 16 This part replaces 250000243. |
| 25 | 417223476 | Crown Gear Launch |
| 26 | 250200006 | Spring Washer 14 mm |
| 27 | 417300407 | DRIVE BOLT PULLEY - Call your local BRP dealership |
| 29 | 417127016 | Pulley Roller |
| 30 | 417127259 | Pivot Stud |
| 31 | 250200009 | Lock Washer 8 mm |
| 32 | 414753500 | Circlip |
| 34 | 293370049 | Circlip |
| 36 | 293370049 | Circlip |
| 37 | 417127061 | Spring |
| 37a | 417127116 | Swivel Abutment |
| 38 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 39 | 415129604 | Calibration Ass'y This part replaces 417127248. |
| 40 | 205052544 | Socket Screw M5 X 25 |
| 41 | 234051410 | Flat Washer M5 |
| 42 | 232551414 | Elastic Stop Nut M5 |
| 43 | 417127155 | Washer |
| 44 | 417300265 | Spacer |
| 45 | 517302322 | Strength Washer |
| 46 | 207287544 | Hex. Cap Screw M8 X 75 |
| 47 | 504112000 | Shim |
| 48 | 414860700 | Drive Belt |
| 49 | 417300382 | Belt Guard |
| 50 | 516005509 | Safety Belt Guard Decal This part replaces 516004595. |
| 51 | 417300380 | Reinforcement |
| 52 | 390909200 | Avex Rivet |
| 53 | 417300381 | Guide |
| 54 | 417300356 | Side Protector |
| 55 | 293150103 | Pop Rivet 3/16" |
| 56 | 417300386 | Front Belt Guard Bracket |
| 57 | 293150104 | Pop Rivet 3/16" |
| 58 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership This part replaces 417300375. |
| 59 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 60 | 114045200 | Hair Pin |
| 61 | 508000599 | Velcro Strip |
| 62 | XXX | Not Available As Spare Parts |
| 63 | XXX | Not Available As Spare Parts |
