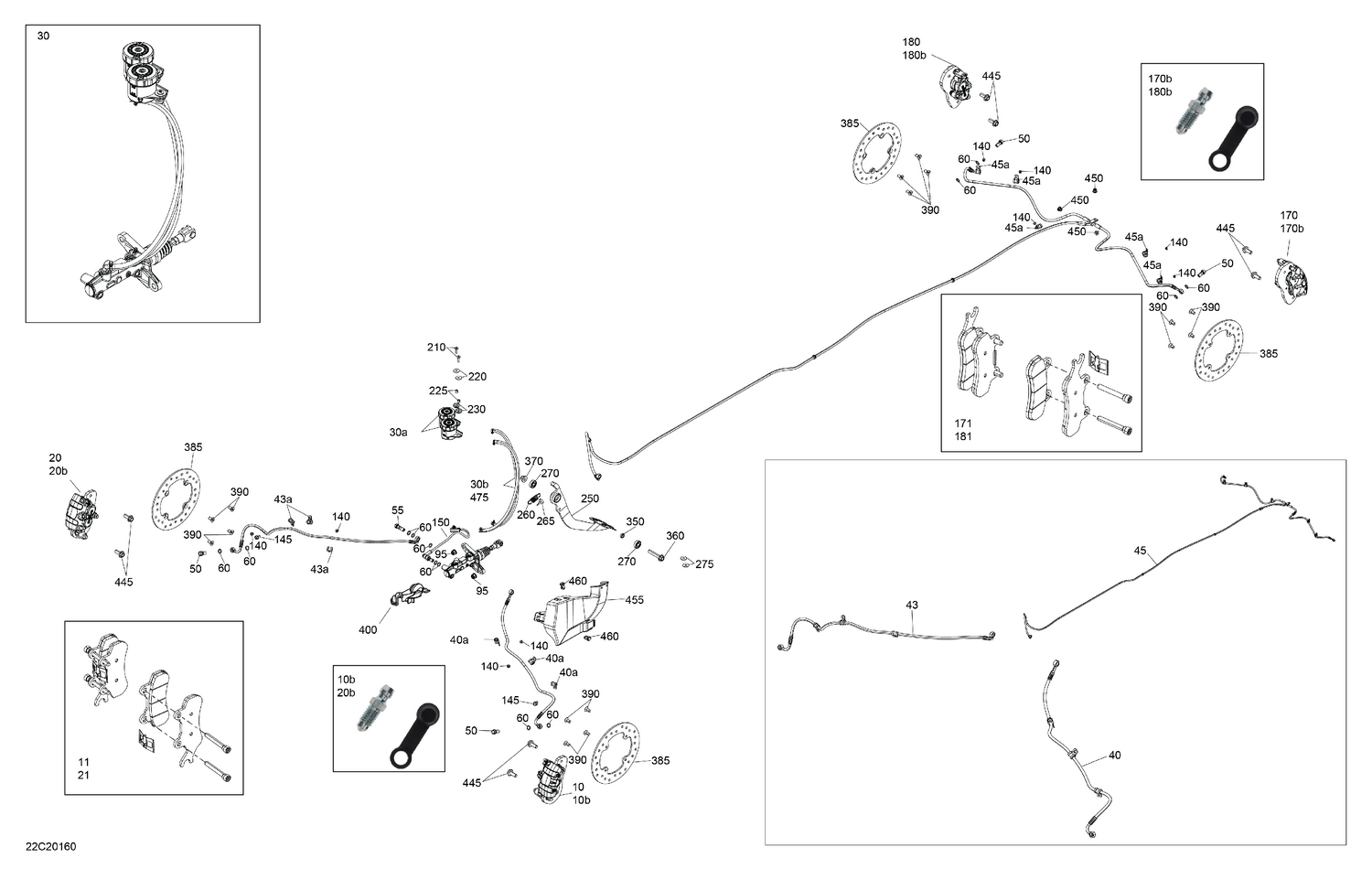

06- Brakes — Parts Catalog

Ref	Part Number	Description
10b	705601017	Bleeding Screw
11	703501198	LH/RH Front Brake Pad Set
20b	705601017	Bleeding Screw
21	703501198	LH/RH Front Brake Pad Set
30a	705601020	Oil Tank
30b	705601866	Oil Hose Housing
40a	293650256	Clamp
43a	293650256	Clamp
45	705601656	Rear Brake Hose
45a	293650256	Clamp This part replaces 715900250.
50	705600609	Banjo Bolt (M10 x 1.25 thread)
55	705601723	Double Banjo Bolt
60	705601628	Copper Washer
95	233281416	Hex. Elastic Flange Nut M8
140	390402200	Pop Rivet 3/16"
145	210261040	Hex. Flange Screw M6 X 10
150	705601250	Brake Switch
170b	705601017	Bleeding Screw
171	703501199	LH/RH Rear Brake Pad Set
180b	705601017	Bleeding Screw
181	703501199	LH/RH Rear Brake Pad Set
210	233251494	Elastic Flange Nut M5
220	250200040	Flat Washer
225	293900112	Bushing
230	414036300	Grommet
250	705601537	Brake Pedal
260	705600792	Brake Pedal Spring
265	708000759	Rubber Stopper
270	705600458	Bearing
275	250200183	Nylon Flat Washer M8
350	705601622	Bushing
360	207605546	Hex. Flange Screw M10 X 55
370	233201436	Hex. Flange Elastic Nut M10 This part replaces 233201416.
385	705601511	Brake Disc
390	235381646	Torx Screw M8 X 16, Scotch Grip
400	705601750	Hose Support
445	207502546	Hex. Flange Screw M10 X 25
450	233261414	Hex. Flange Elastic Nut M6 x 1.0
455	705601626	Master Cylinder Deflector
460	293150230	Tuflok Plastic Rivet
