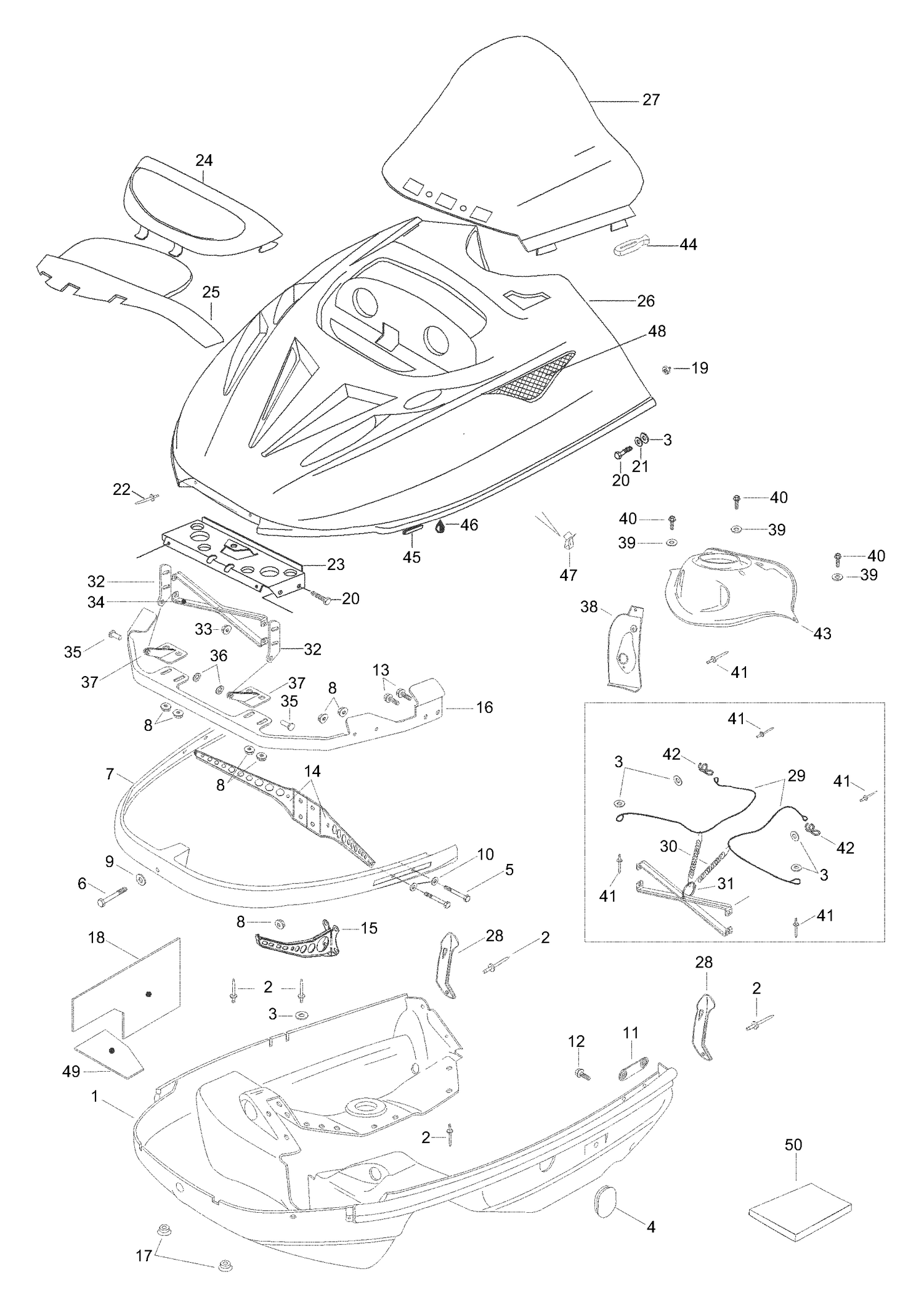

09- Hood
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502006572 | Bottom pan |
| 2 | 293150104 | Pop Rivet 3/16 This part replaces 390907700. |
| 3 | 20008 | Washer |
| 4 | 570053702 | BOTTOM PAN CAP (BLACK) - Call your local BRP dealership |
| 5 | 40083 | Screw M6x30 |
| 6 | 40002 | Screw M6x40 |
| 7 | 517265400 | Bumper |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 9 | 224061201 | Flat Washer |
| 10 | 224061121 | Flat Washer |
| 11 | 517267100 | Side bracket |
| 12 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 13 | 40870 | HEX. TAPING SCREW - Call your local BRP dealership |
| 14 | 517295000 | Support L.H. |
| 14 | 517295100 | Support R.H. |
| 15 | 517294500 | Front support |
| 16 | 517296600 | Hinge bracket |
| 17 | 572072100 | CAP - Call your local BRP dealership |
| 18 | 415064900 | Reflection sheet |
| 19 | 517245800 | Knob |
| 20 | 40366 | Screw M5x16 |
| 21 | 20013 | Spring washer |
| 22 | 36009 | Rivet |
| 23 | 5245433 | Support plate |
| 24 | 517302158 | HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership |
| 25 | 517302003 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 26 | 5147148 | Hood |
| 27 | 5145274 | Windscreen |
| 28 | 570027100 | Hood latch |
| 29 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 30 | 414763300 | Spring |
| 31 | 415058300 | RING - Call your local BRP dealership |
| 32 | 517261100 | UPPPER HINGE - Call your local BRP dealership |
| 33 | 233251434 | Flanged Elastic Nut M5 This part replaces 33062. |
| 34 | 517278100 | Hood reinforcer |
| 35 | 390906200 | FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 36 | 389804300 | Push Nut |
| 37 | 517289900 | Hinge, lower |
| 38 | 572052101 | Dash-handle |
| 39 | 391301600 | Washer |
| 40 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 41 | 36037 | Rivet |
| 42 | 5442870 | Retainer Cable Clip - Call your local BRP dealership |
| 43 | 517302524 | Switch dash |
| 44 | 570023800 | Windshield latch |
| 45 | 5442148 | Rubber ribbon of wind. |
| 46 | 32600 | Glue |
| 47 | 414227300 | Clip |
| 48 | 5345683 | Upper grill, R.H. |
| 48 | 5345684 | Upper grill, L.H. |
| 49 | Not | Available As Spare Part - Reflection sheet - DOES NOT APPLY TO THIS MODEL |
