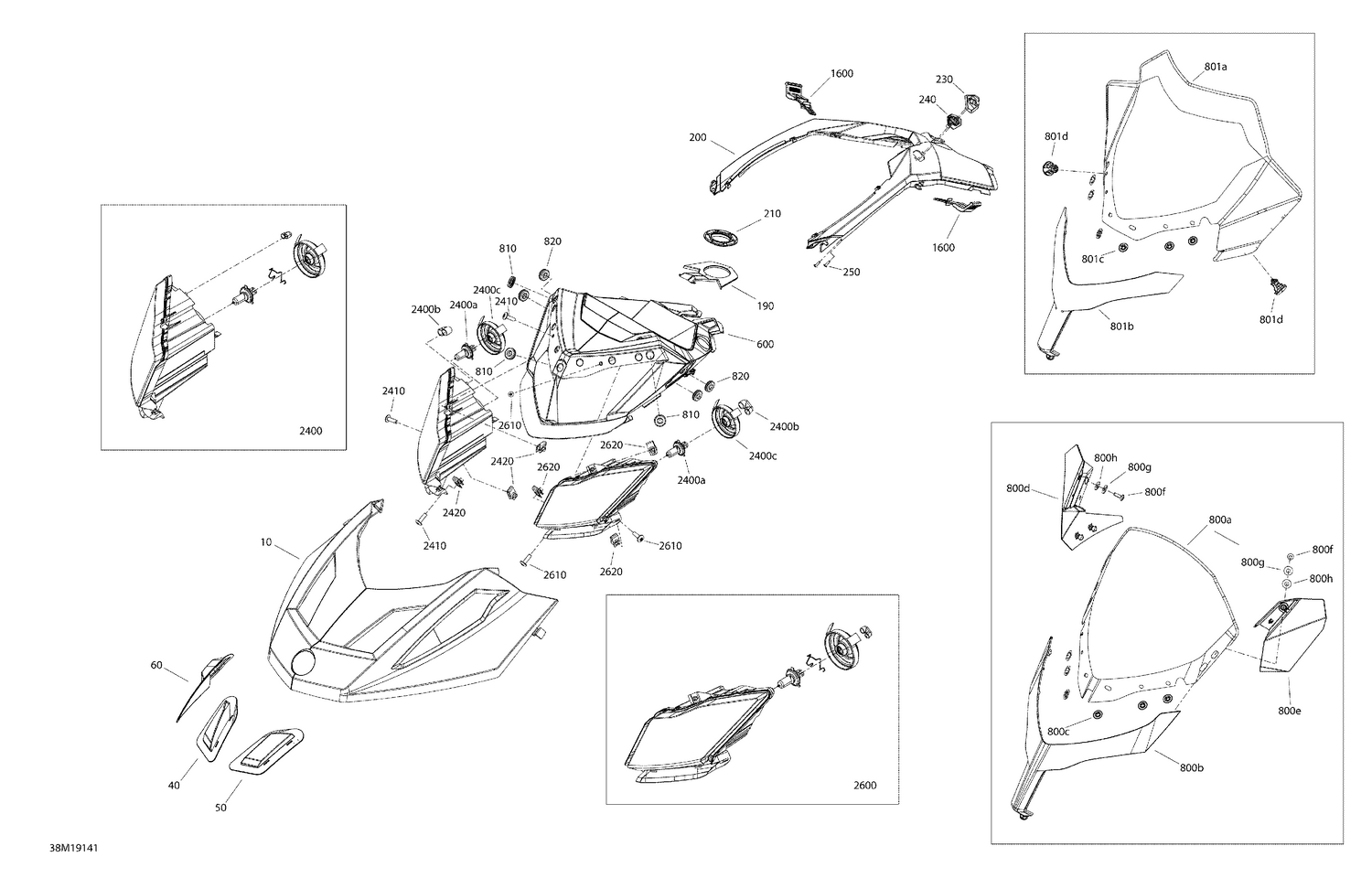

09- Hood - Hood Section
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517305014 | Hood |
| 40 | 517304567 | RH Hood Grille |
| 50 | 517304694 | LH Hood Grille |
| 60 | 517304569 | Air Inlet |
| 190 | 517304027 | Deep Black, Cap Console |
| 200 | 517305709 | Console |
| 210 | 517306602 | Console Nut |
| 230 | 517305338 | Plate |
| 240 | 517305339 | Plate |
| 250 | 250000759 | Torx Truss Pt K40 X 16 |
| 600 | 517303972 | Indicator Support |
| 810 | 517303756 | Grommet |
| 820 | 517303756 | Grommet |
| 1600 | 517304093 | Center Panel Latch |
| 2400a | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400b | 515176498 | Cap |
| 2400c | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 2410 | 250000705 | Torx Truss Screw M6 X 20 |
| 2420 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2610 | 250000705 | Torx Truss Screw M6 X 20 |
