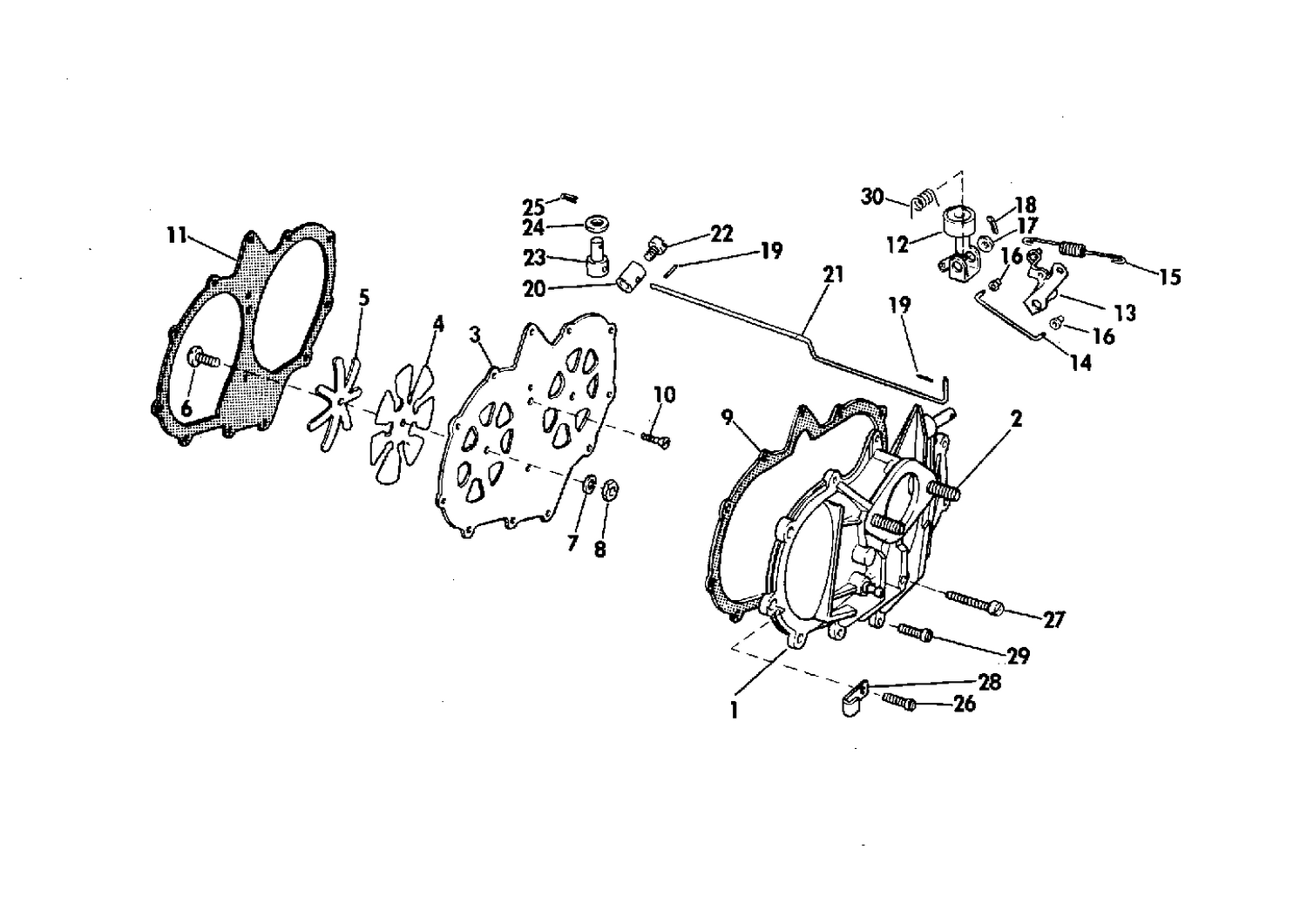

INTAKE MANIFOLD
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0380252 | INITAKE MANIFOLD ASSY. |
| 2 | 0302822 | STUD |
| 4 | 0308938 | LEAF |
| 5 | 0304709 | STOP , Leaf |
| 9 | 0311364 | GASKET, Lead plate to manifold |
| 11 | 0311365 | GASEKT, Leaf plate to c'case |
| 12 | 0376477 | CAM FOLLOWER |
| 13 | 0378985 | LEVER, Throttle |
| 14 | 0309241 | LINK, Cam follower |
| 15 | 0307408 | SPRING |
| 16 | 0204708 | RETAINER |
| 17 | 0301827 | WASHER |
| 19 | 0307565 | PIN |
| 20 | 0304222 | COLLAR |
| 21 | 0307824 | ROD, Thottle control |
| 22 | 0304221 | SCEW,Collar to cable |
| 23 | 0304226 | PIN, Pivot |
| 24 | 0551953 | WASHER |
| 26 | 0304888 | SCREW |
| 27 | 0307878 | SCREW, Long |
| 29 | 0311367 | SCREW |
| 0380243 | 0380243 | LEAD PLATE ASSEMBLY |
