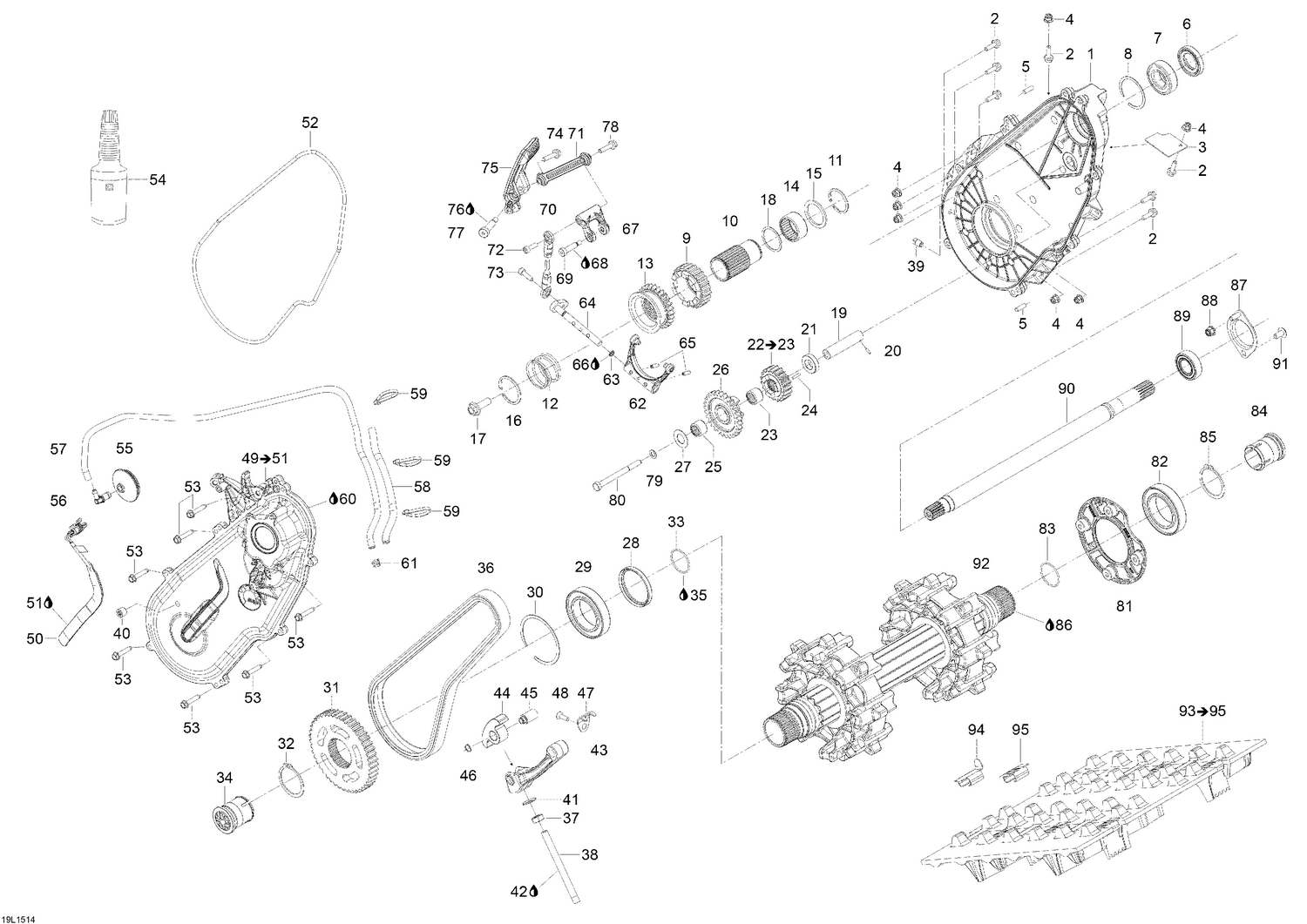

| Ref | Part Number | Description |
|---|
| 1 |
504153407 |
Chaincase This part replaces 504153334. |
| 2 |
207662034 |
Hex. Flange Screw M6 x 20 |
| 3 |
NOT |
IN USE Middle Plate NOT IN USE |
| 4 |
233261434 |
Flanged Elastic Nut M6 |
| 5 |
250400048 |
Dowel Pin |
| 6 |
293200168 |
Oil Seal This part replaces 293250175. |
| 7 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 8 |
504152576 |
Circlip |
| 9 |
504152961 |
Sprocket, 24 Teeth |
| 10 |
504152979 |
Coupling |
| 11 |
293370054 |
Circlip |
| 12 |
504153179 |
Release Spring |
| 13 |
504152960 |
Sliding Gear, 27 Teeth |
| 14 |
293350063 |
Needle Bearing |
| 15 |
504152689 |
Washer |
| 16 |
293370055 |
Circlip |
| 17 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 18 |
504152862 |
Washer |
| 19 |
504083100 |
Reverse Shaft |
| 20 |
250400010 |
Rolled Pin M3 x 10 |
| 21 |
504078700 |
Ring |
| 23 |
293350064 |
Needle Bearing |
| 24 |
570048600 |
Alignement Rod |
| 25 |
293350064 |
Needle Bearing |
| 26 |
504152724 |
Sprocket, 29 Teeth |
| 27 |
504077300 |
Spacer |
| 28 |
293200159 |
Oil Seal This part replaces 504152571. |
| 29 |
293350059 |
Ball Bearing |
| 30 |
504152582 |
Circlip |
| 31 |
861805539 |
Kit Sprocket This part replaces 504152581. |
| 32 |
504152572 |
Circlip |
| 33 |
293300122 |
O Ring |
| 34 |
504152619 |
Magnetic Cap |
| 35 |
619590193 |
Synthetic Grease |
| 36 |
504152630 |
Drive Chain, 106 Links |
| 37 |
232006414 |
Hex. Nut M10 |
| 38 |
504152602 |
Adjustment Screw |
| 39 |
504152854 |
Magnetic Plug |
| 40 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 41 |
293200128 |
Seal Ring Usit |
| 42 |
619590098 |
Chaincase Oil |
| 43 |
504153431 |
Chain Tensioner This part replaces 504152748. |
| 44 |
504152739 |
Slider Chain |
| 45 |
504152841 |
Tensioner Axle |
| 46 |
504152282 |
Circlip |
| 47 |
504153122 |
Chain Slider |
| 48 |
205862044 |
Socket Head Screw M6 x 20, Scotch Grip |
| 50 |
504152896 |
Sensor |
| 51 |
293800066 |
SEALANT LOCTITE SI 5900 - Call your local BRP dealership |
| 52 |
293300130 |
O-Ring |
| 53 |
250000360 |
Hex. Flanged Screw M6 x 30 |
| 54 |
619590098 |
Chaincase Oil |
| 55 |
504152930 |
Cap |
| 56 |
293710035 |
Straight Fitting |
| 57 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 58 |
504153074 |
Tube Protector |
| 59 |
293750002 |
Tie-Rap 142 mm |
| 60 |
619590098 |
Chaincase Oil |
| 61 |
414554800 |
Spring Clamp |
| 62 |
504153432 |
Fork Ass'y This part replaces 504152954. |
| 63 |
414484400 |
O Ring |
| 64 |
504152956 |
Welded Axel Fork |
| 65 |
250400045 |
Spring Pin M5 x 16 |
| 66 |
619590193 |
Synthetic Grease |
| 67 |
504153427 |
Lever This part replaces 504152788. |
| 68 |
619590193 |
Synthetic Grease |
| 69 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 70 |
504152951 |
Ball Joint |
| 71 |
504152710 |
Double Ball Joint |
| 72 |
205562044 |
Socket Head Screw M6 x 20, Scotch Grip |
| 73 |
205562044 |
Socket Head Screw M6 x 20, Scotch Grip |
| 74 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 75 |
504153174 |
Grip |
| 76 |
619590193 |
Synthetic Grease |
| 77 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 78 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 79 |
504082900 |
Washer |
| 80 |
207089044 |
Hex. Screw M8 x 90 |
| 81 |
504153886 |
Retaining Ring This part replaces 504152949. |
| 82 |
293350059 |
Ball Bearing |
| 83 |
293300122 |
O-Ring |
| 84 |
504152619 |
Magnetic Cap |
| 85 |
504152572 |
Circlip |
| 86 |
619590193 |
Synthetic Grease |
| 87 |
504153187 |
Bearing Housing |
| 88 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 89 |
293350074 |
Ball Bearing |
| 90 |
504153000 |
Countershaft |
| 91 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 92 |
504153252 |
Drive Axle Ass'y (8T.) |
| 94 |
415129528 |
Track Guide |
