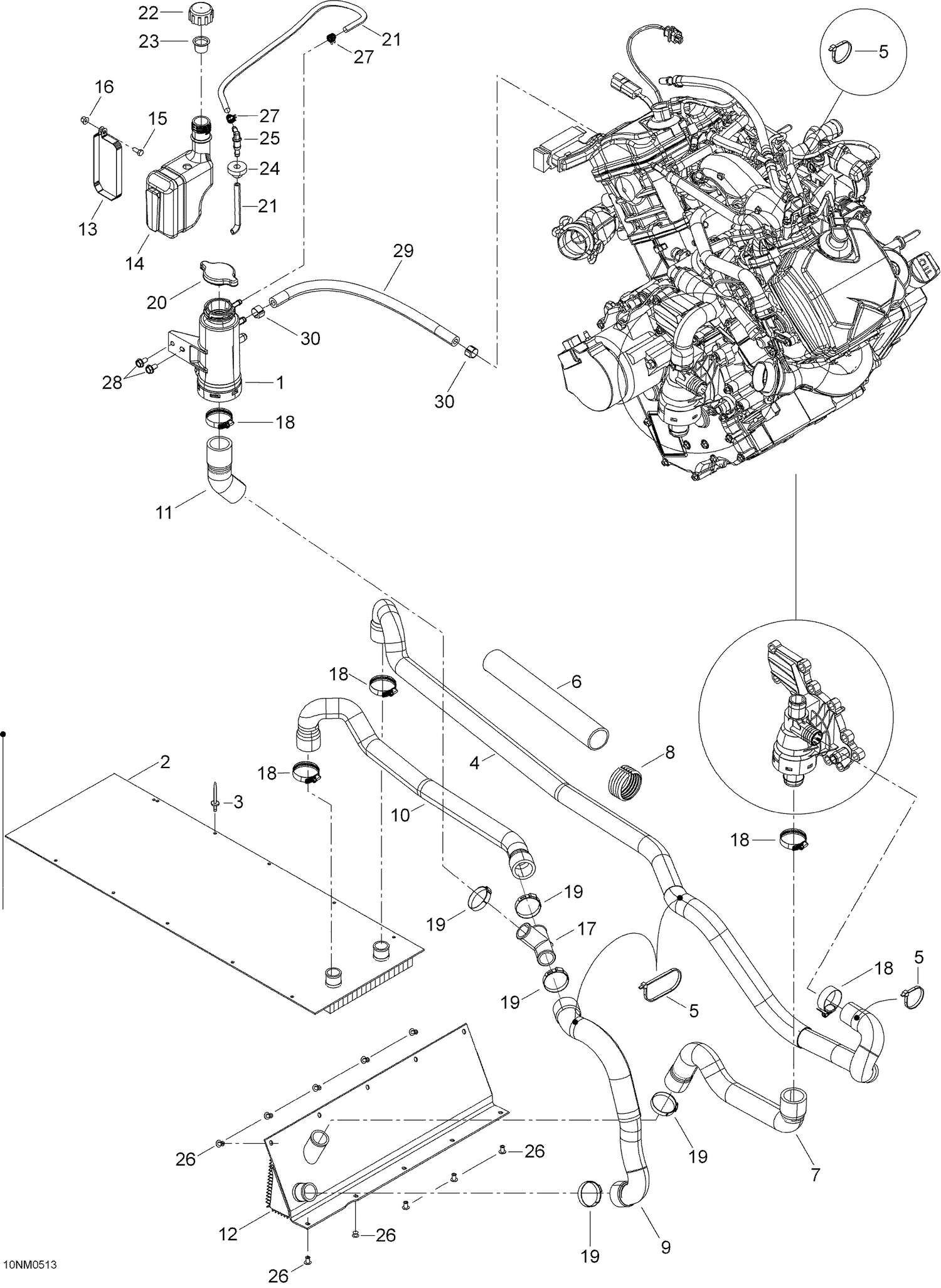

| Ref | Part Number | Description |
|---|
| 1 |
509000176 |
FILLER NECK ASS'Y - Call your local BRP dealership |
| 2 |
5246648 |
Radiator |
| 3 |
36083 |
Rivet |
| 4 |
605249835 |
Hose, pump-radiator |
| 5 |
27126 |
Tie rap |
| 5 |
293750008 |
Tie-Rap 368 mm This part replaces 27100. |
| 6 |
39062 |
Tubing |
| 7 |
509000104 |
INLET HOSE - Call your local BRP dealership |
| 8 |
390003 |
Protective shield (1000 mm) |
| 9 |
509000193 |
Hose, tank-front radiator |
| 10 |
605349836 |
Hose, T-piece-rear radiator |
| 11 |
509000195 |
Hose |
| 12 |
509000146 |
Front radiator |
| 13 |
509000191 |
COOLANT TANK SUPPORT - Call your local BRP dealership |
| 14 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 15 |
40247 |
Screw M5 x 16 |
| 16 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 17 |
509000219 |
T-fitting |
| 18 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 19 |
509000045 |
Hose clamp |
| 20 |
509000180 |
Radiator Pressure Cap |
| 21 |
415110000 |
Overflow hose |
| 22 |
709200009 |
TANK CAP - Call your local BRP dealership |
| 23 |
709200205 |
PROTECTION CAP - Call your local BRP dealership This part replaces 709200034. |
| 24 |
709200285 |
Grommet This part replaces 570135100. |
| 25 |
414580600 |
Connector |
| 26 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 27 |
414554800 |
Hose clamp |
| 28 |
40327 |
Screw M6 x 12 |
| 29 |
509000304 |
RETURN HOSE - Call your local BRP dealership |
