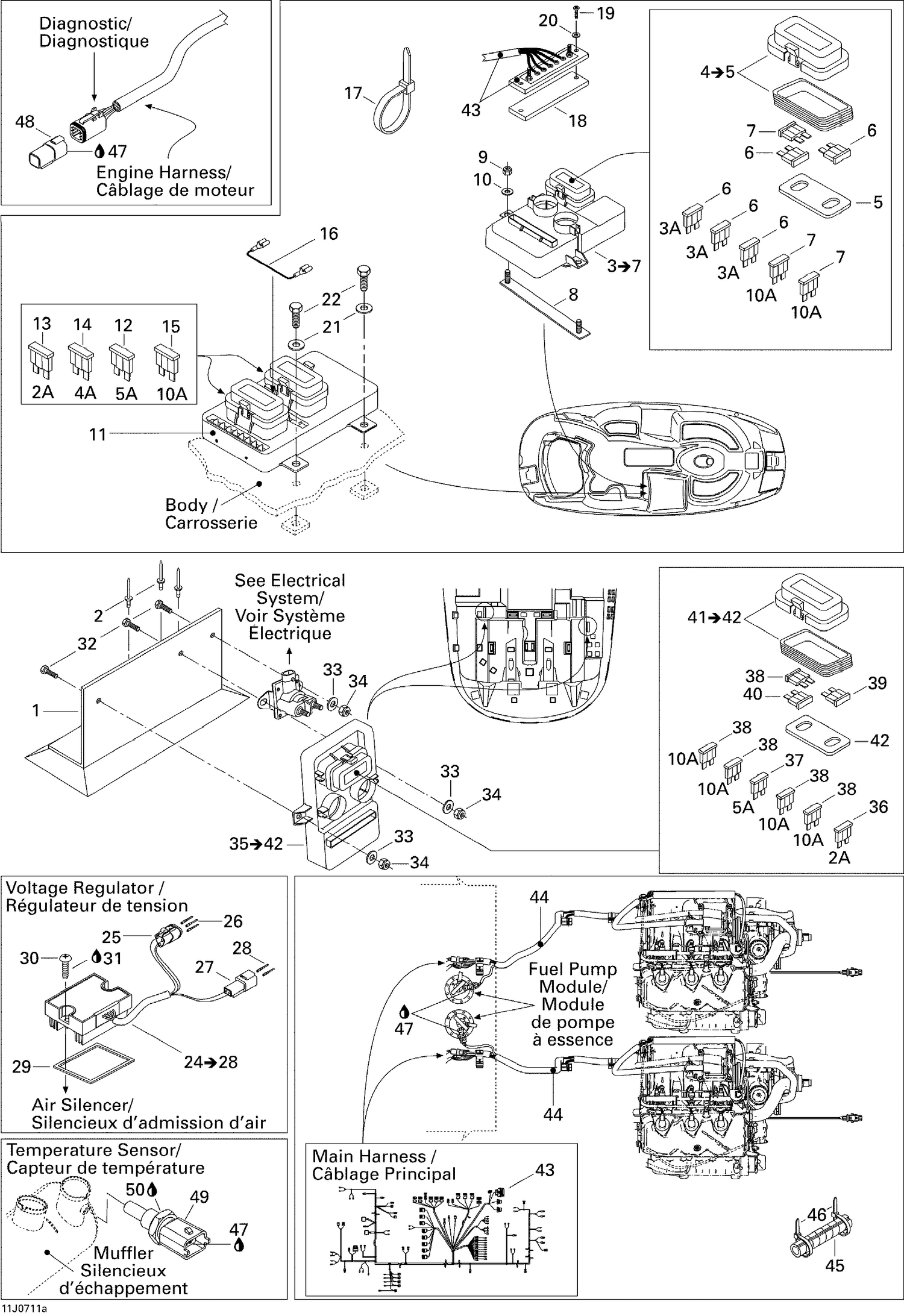

| Ref | Part Number | Description |
|---|
| 1 |
204471071 |
BRACKET - Call your local BRP dealership |
| 2 |
293150037 |
Avdel Rivet 3/16" |
| 5 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 6 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 7 |
278001197 |
Fuse, 10 Amperes |
| 8 |
Not |
Available As Spare Part - Module Support |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
234062600 |
Flat Washer M6, Stainless |
| 11 |
204470815 |
FUSE BLOCK - Call your local BRP dealership |
| 12 |
278000344 |
Fuse, 5 Amperes |
| 13 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 14 |
204471100 |
FUSE, 4 AMPERES - Call your local BRP dealership |
| 15 |
278001197 |
Fuse, 10 Amperes |
| 16 |
Not |
Available As Spare Part - Wire |
| 17 |
293750002 |
Tie Wrap 142 mm |
| 18 |
204471076 |
Aluminum Plate |
| 19 |
208641060 |
Phillips Screw M4 X 10 |
| 20 |
234041600 |
Flat Washer 4 mm, Stainless |
| 21 |
234062600 |
Flat Washer M6, Stainless |
| 22 |
207161260 |
Hex. Cap Screw M6 X 12 |
| 23 |
293800060 |
Loctite 243, 10 ml |
| 25 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 26 |
278000632 |
Female Terminal |
| 27 |
409206900 |
Male Housing, 2 Circuits |
| 28 |
515175567 |
Female Terminal |
| 29 |
293250123 |
SEAL - Call your local BRP dealership |
| 30 |
208663060 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 31 |
293800005 |
Loctite 271, 10 ml |
| 32 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 33 |
234062600 |
Flat Washer M6, Stainless |
| 34 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 36 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 37 |
278000344 |
Fuse, 5 Amperes |
| 38 |
278001197 |
Fuse, 10 Amperes |
| 39 |
409003900 |
Fuse, 20 Amperes |
| 40 |
410917200 |
Fuse, 30 Amperes |
| 42 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 43 |
204471134 |
Main Harness |
| 44 |
204470973 |
Engine Harness |
| 45 |
204471077 |
SLIT CONDUIT - Call your local BRP dealership |
| 46 |
293750002 |
Tie Wrap 142 mm |
| 47 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 48 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 49 |
278002895 |
Temperature Sensor This part replaces 278001016. |
