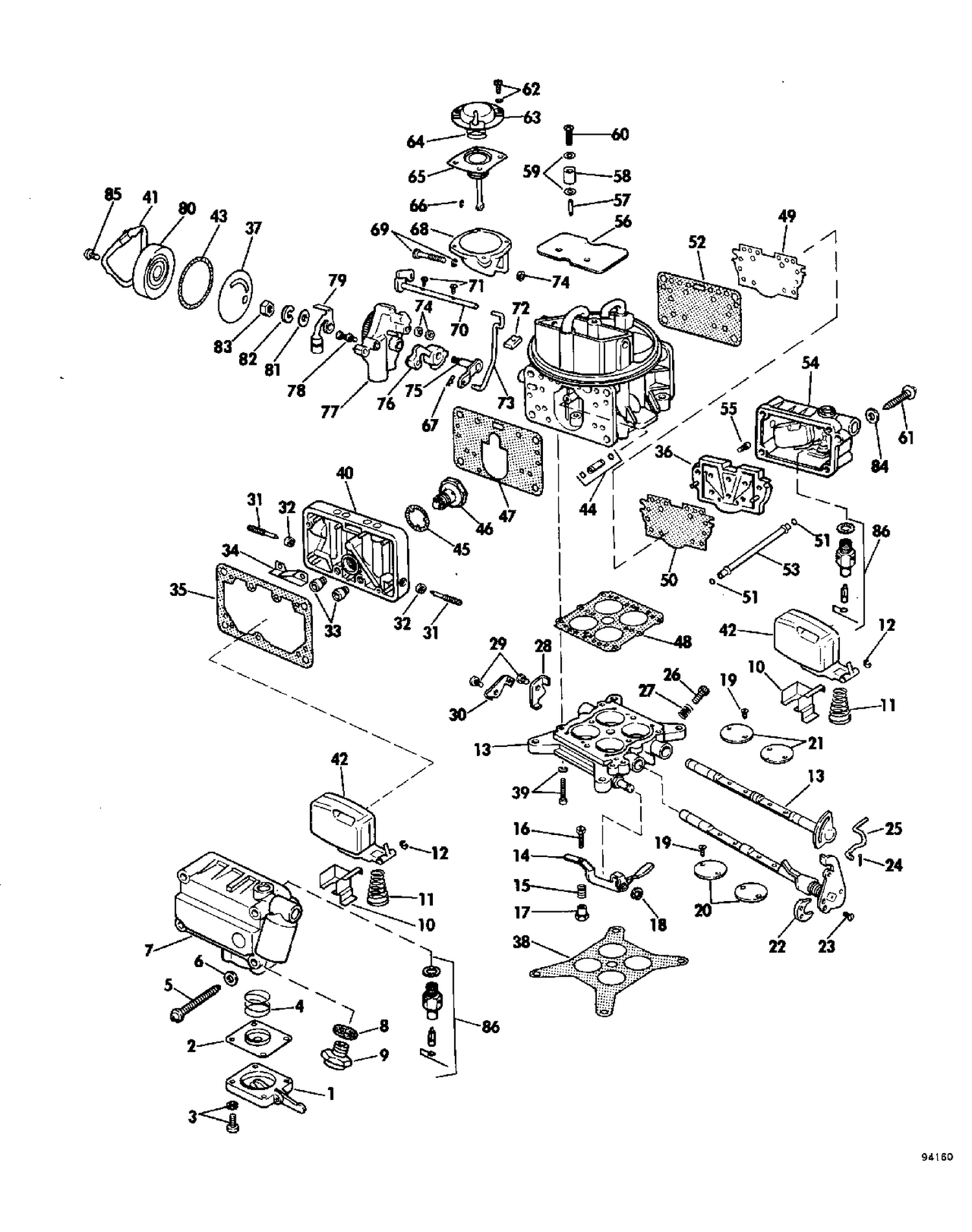

| Ref | Part Number | Description |
|---|
| 1 |
34R-2183-A |
COVER ASSY, Fuel pump |
| 2 |
08-233 |
DIAPHRAGM ASSY |
| 3 |
05R-369 |
SCR & L'WASHER COV |
| 4 |
38R-569 |
DIAPH RET SPRING |
| 5 |
5R-1444A-3 |
SCREW, Fuel bowl |
| 7 |
34R-8089-A |
FUEL BOWL & PLUGS ASSY, Primary |
| 8 |
GASKET,Fitting |
Ref: 9 19R-517-A FUEL INLET FITTING ASSY 19R-517-A |
| 10 |
059R-96 |
BAFFLE PLATE |
| 10 |
059R-97 |
BAFFLE PLATE, Secondary |
| 11 |
38R-1757 |
FLOAT SPRING, Pri & sec |
| 12 |
36R-169 |
FLOAT RETAINER, Primary & secondary |
| 13 |
12R-6728A |
THROT BODY & SFT ASSY,Complete |
| 14 |
63R-740 |
OPERATING LEVER |
| 15 |
38R-782 |
SCREW, Spring lever |
| 16 |
05R-756 |
SCREW,Lever |
| 17 |
39R-165 |
SCR FITTING,Lever |
| 18 |
36R-574 |
RETAINER, Pump lever |
| 19 |
05R-581 |
SCR,Throt plate pri & sec |
| 20 |
09R-109 |
THROT PLATE,Pri |
| 21 |
09R-118 |
THROT PLATE,Sec |
| 22 |
41R-330 |
PUMP CAM |
| 23 |
05R-682 |
SCREW, Pump cam |
| 24 |
48R-183 |
RTN,Throt conn rod |
| 25 |
43R-426 |
ROD, Throttle connecting |
| 26 |
05R-155 |
SCREW, Throttle stop |
| 27 |
38R-110 |
SPR,Throt stop scr |
| 28 |
63R-354A |
DIAPH LEVER ASSY |
| 29 |
05R-584 |
SCR & L'WASHER |
| 30 |
4R-1054 |
FAST IDLE PICK-UP LEVER |
| 31 |
015R-40 |
IDLE ADJ NEEDLE |
| 33 |
22R-40-64 |
MAIN JET, Primary |
| 34 |
059R-37 |
BAFFLE PLATE |
| 36 |
34R-2007-36 |
METERING BODY SEC |
| 38 |
5R-1181 |
FLANGE GASKET |
| 39 |
05R-567 |
SCR & L'WASHER,Throttle body |
| 40 |
34R-8108-A |
PRI MTR BODY & PLUG ASSY |
| 41 |
49R-328 |
CLAMP, Thermostat housing |
| 42 |
16R-498A-3 |
FLOAT & HINGE ASSY |
| 44 |
14R-836A |
TUBE & "O" RINGS |
| 46 |
25R-591A25AS |
POWER VALVE ASSY |
| 49 |
34R-1993 |
PLATE, Sec metering body |
| 53 |
14R-370 |
FUEL LINE TUBING |
| 54 |
34R-8092-A |
FUEL BOWL & PLUG ASSY, Secondary |
| 55 |
05R-691 |
SCR,Sec mtr body |
| 56 |
02R-388 |
CHOKE PLATE |
| 57 |
23R-258 |
VALVE, Pump discharge needle |
| 58 |
21R-572-25 |
NOZ,Pump disch |
| 60 |
05R-854 |
SCREW |
| 61 |
5R-1444A-6 |
SCR,Sec fuel bowl |
| 62 |
05R-371 |
SCR,Sec diaph cover |
| 63 |
34R-1334 |
DIAPHRAGM COVER |
| 64 |
38R-597 |
SPRING, Sec diaphragm |
| 65 |
35R-235-A |
SEC DIAPH |
| 66 |
36R-164 |
RETAINER, Secondary diaphragm link |
| 67 |
048R-31 |
RETAINER, Choke rod |
| 68 |
79R-389 |
SEC DIAPH HSG & REST ASSY |
| 69 |
05R-568 |
SCR,Sec.diaph hsg |
| 70 |
3R-510-A |
CHOKE SHAFT |
| 71 |
05R-4 |
SCREW, Choke plate |
| 72 |
27R-238 |
SEAL, Choke rod |
| 73 |
43R-203 |
CHOKE ROD |
| 75 |
4R-955-A |
SHAFT & LEVER ASSY, Choke housing |
| 76 |
41R-244-A |
GASKET IDLE CAM ASSY |
| 77 |
34R-8399-A |
CHOKE HOUSING & PLUG ASSY |
| 78 |
05R-569 |
CHOKE HOUSING SCREW & LOCK WASHER |
| 79 |
4R-960A |
THERMO LEVER LINK & PISTON ASSY |
| 80 |
47R-294-A |
HEATER COIL, Thermostat assy |
| 81 |
40R-108 |
SPACER, Choke thermostat lever |
| 82 |
46R-248 |
L'KWASHER,Choke sft |
| 83 |
039R-5 |
NUT, Choke shaft |
| 85 |
05R-16 |
SCR,Thermo hsg |
| 0982513 |
0982513 |
CARB ASSY,Complete |
