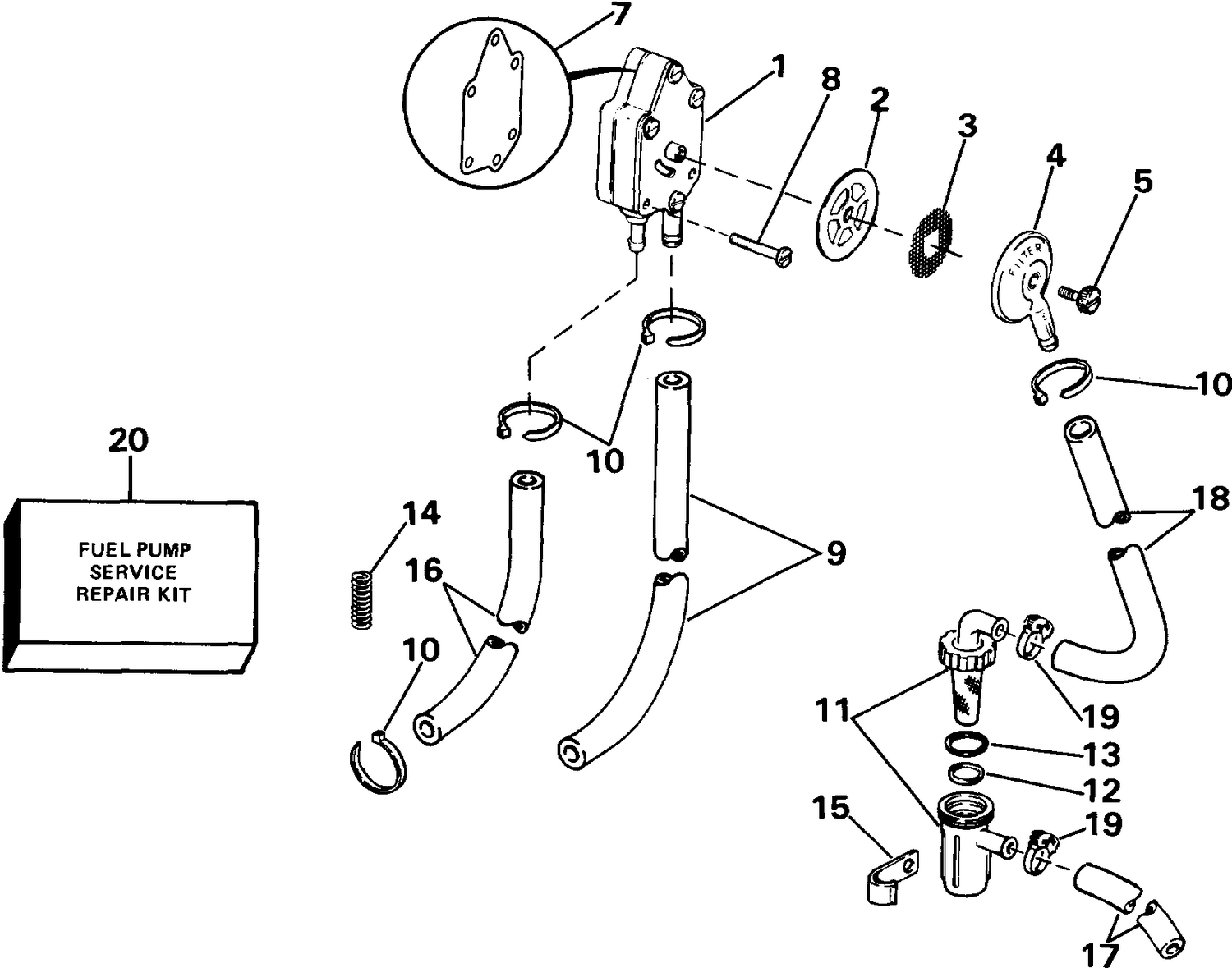

| Ref | Part Number | Description |
|---|
| 1 |
0398399 |
FUEL PUMP ASSEMBLY This part replaces 0395847. |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0312679. |
| 4 |
0330092 |
CAP Filter |
| 8 |
0328717 |
NUT, Ground lead |
| 9 |
0332843 |
HOSE, Pump to tee This part replaces 0327417. |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0397715 |
FILTER, Fuel This part replaces 0394375. |
| 14 |
0315942 |
SPRING |
| 16 |
HOSE, |
Pump to crankcase, 133mm (5-1/4") |
| 17 |
HOSE, |
Connector to filter 292mm (11-1/2") |
| 18 |
HOSE, |
Filter to pump, 495mm (19-1/2") |
