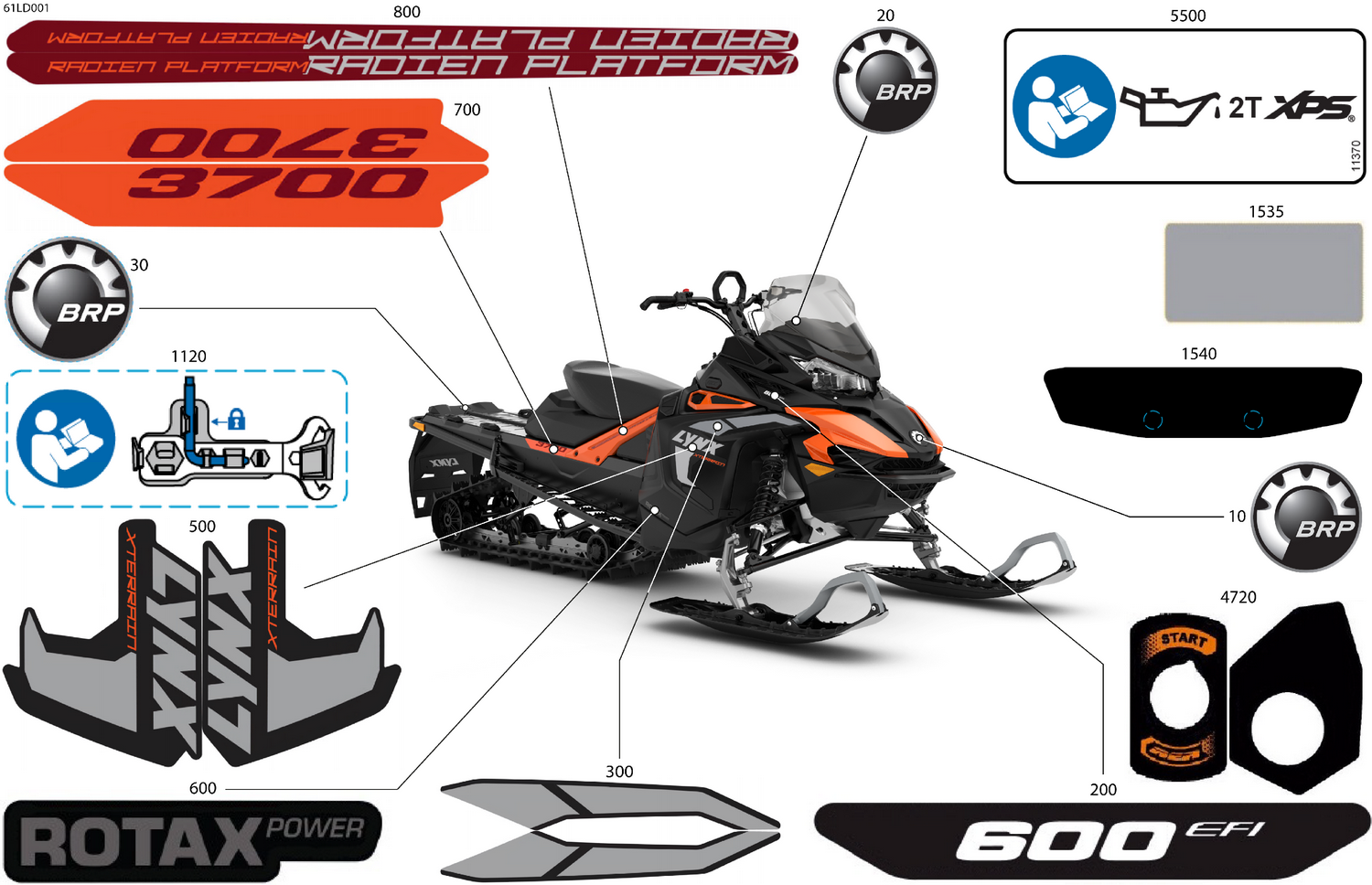

07- Body - Decals
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704909041 | Emblem Logo BRP 68 MM UV |
| 20 | 516010651 | BRP Logo 20 MM x 2 MM |
| 30 | 704909040 | Emblem BRP Logo 48 MM UV |
| 200 | 516010363 | Upper Sidepanel Decal "600 EFI" |
| 300 | 516010970 | LH/RH Side Panel Decal |
| 500 | 516010629 | LH/RH Side Panel Decal "Lynx X Terrain" |
| 600 | 516008760 | Decal "Rotax Power" |
| 700 | 516010632 | Tunnel Decal |
| 800 | 516010635 | LH/RH Platform Decal |
| 1120 | 516011629 | Tool Instruction Label |
| 1535 | 516009954 | Protective Decal |
| 1540 | 516010972 | Linq Decal Predrilled |
| 4720 | 516010547 | Ident. Decal |
