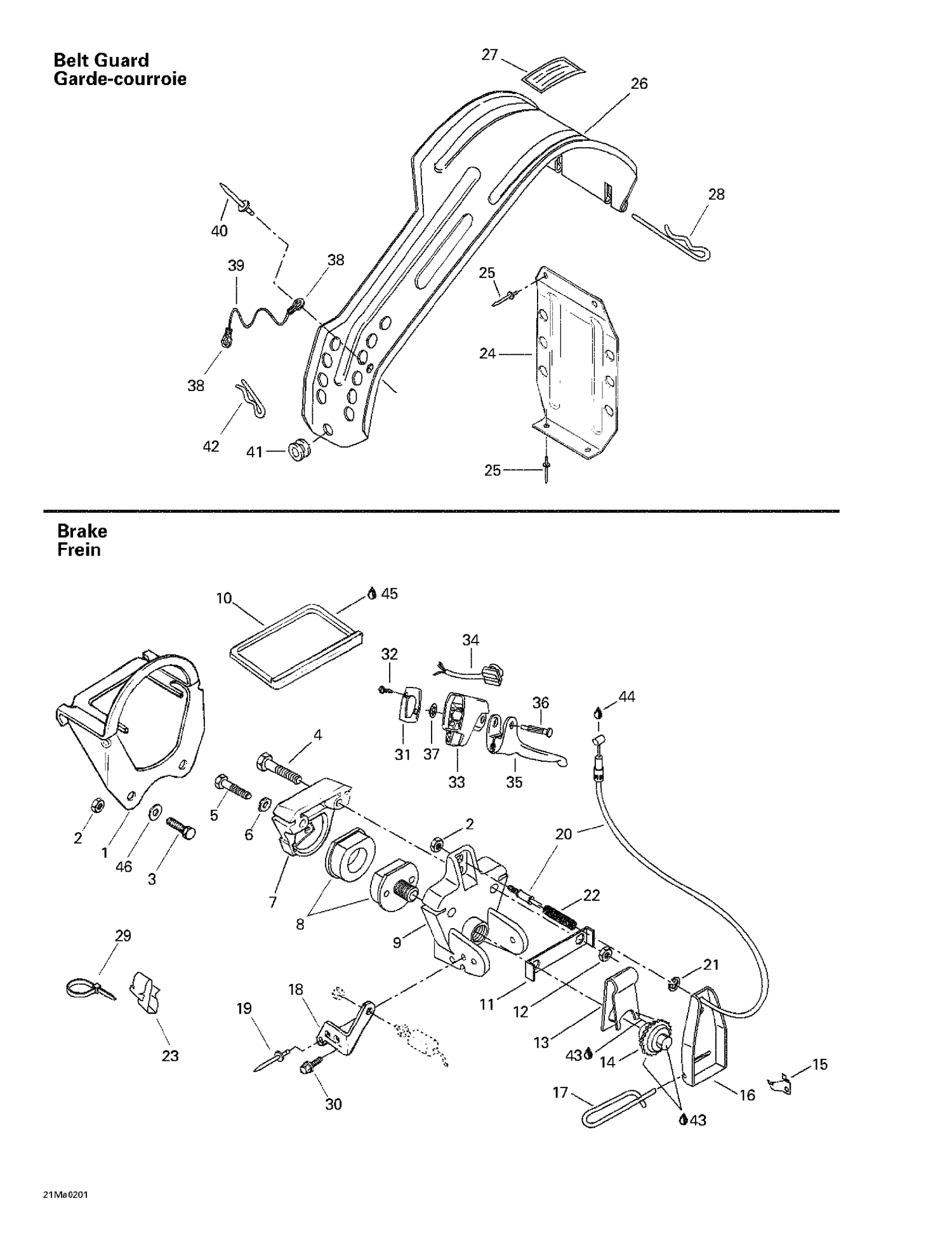

06- Brake And Belt Guard
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 507032201 | Welded Caliper Support |
| 2 | 232561414 | Elastic Stop Nut M6 |
| 3 | 207162544 | Hex. Screw M6 X 25 |
| 4 | 207085044 | Hex. Screw M8 X 50 |
| 5 | 207151444 | Hex. Screw M5 X 14 |
| 6 | 507023600 | TAB LOCK - Call your local BRP dealership |
| 7 | 414466800 | ANVIL - Call your local BRP dealership |
| 8 | 860700100 | Brake Pad |
| 9 | 507026600 | Caliper Machined |
| 10 | 572013500 | Slider |
| 11 | 507020400 | LOCK-TAB - Call your local BRP dealership |
| 12 | 232581414 | Hex. Elastic Stop Nut M8 |
| 13 | 507020200 | RELEASE SPRING - Call your local BRP dealership |
| 14 | 507032310 | WELDED RATCHET WHEEL - Call your local BRP dealership |
| 15 | 507009400 | RATCHET SPRING - Call your local BRP dealership |
| 16 | 507021500 | LEVER - Call your local BRP dealership |
| 17 | 507032306 | HAIR PIN - Call your local BRP dealership |
| 18 | 507026700 | Stop Light Switch Support |
| 19 | 390402300 | Pop Rivet 3/16" |
| 20 | 414920800 | Brake Cable and Housing |
| 21 | 371901300 | Circlip |
| 22 | 414460600 | SPRING - Call your local BRP dealership |
| 23 | 414227300 | Clip |
| 24 | Not | Available As Spare Part - Rear Belt Guard |
| 25 | 390402400 | Pop Rivet 3/16" |
| 27 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 28 | 517164600 | Pin |
| 29 | 414115200 | Tie-Rap 180 mm |
| 30 | 309904500 | Hex. Taptite Screw |
| 31 | 572066200 | Cap |
| 32 | 243231640 | Plastite Screw M3 x 16 |
| 33 | 572067600 | Brake Handle Housing |
| 34 | 410213000 | Dimmer Switch |
| 35 | 572066600 | Brake Handle |
| 36 | 414179200 | Pin |
| 37 | 389804300 | Push Nut |
| 38 | 561502800 | Terminal Ring |
| 39 | Not | Available As Spare Part - Wire |
| 40 | 390403600 | Pop Rivet 3/16 |
| 41 | 414036300 | Grommet |
| 42 | 414575600 | Hair Pin |
| 43 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 44 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 45 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
