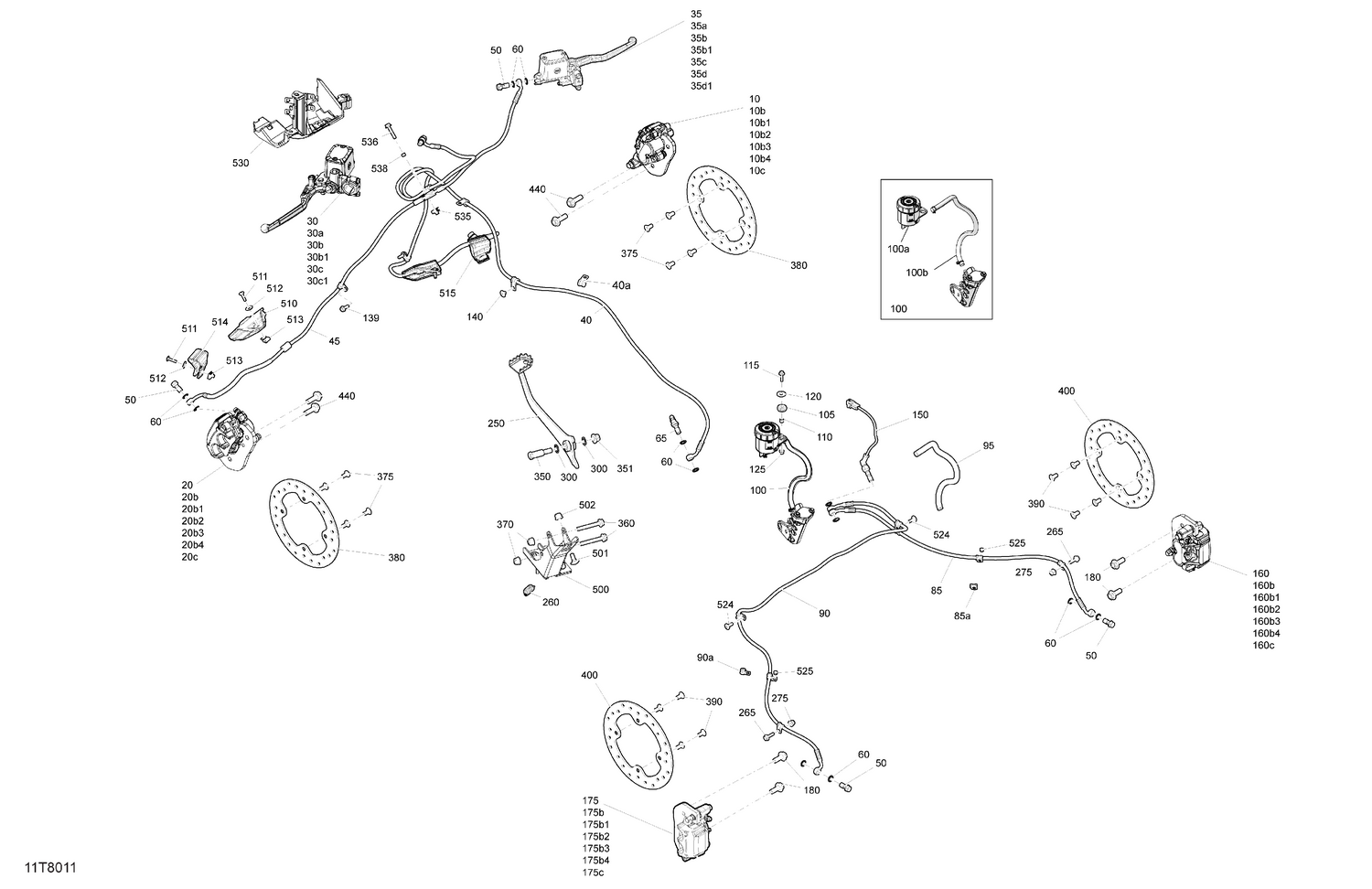

03- Mechanic - Brake System
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 10b1 | 705601014 | RH Organic Brake Pad Kit |
| 10b2 | 705601016 | Pin Set |
| 10b3 | 705601017 | Bleeding Screw |
| 10b4 | 705601018 | Retaining Spring |
| 10c | 715900249 | RH Metallic Brake Pad Kit |
| 20b1 | 705601016 | Pin Set |
| 20b2 | 705601017 | Bleeding Screw |
| 20b3 | 705601018 | Retaining Spring |
| 20b4 | 705601015 | LH Organic Brake Pad Kit |
| 20c | 715900248 | LH Metallic Brake Pad Kit |
| 30a | 705601013 | Lever Set |
| 30b1 | 250000447 | Hex. Flange Screw M6 X 25 |
| 30c1 | 415129356 | Screw M4 X 20 |
| 35a | 705601011 | Lever Set |
| 35b1 | 250000447 | Hex. Flange Screw M6 X 25 |
| 35c | 705601012 | Kit Switch |
| 35d1 | 415129356 | Screw M4 X 20 |
| 40a | 293650256 | Clamp |
| 45 | 705601589 | Brake Line |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 65 | 705601051 | Bleeding Screw |
| 85a | 293650256 | Clamp |
| 90a | 293650256 | Clamp |
| 95 | 219704407 | Tubing 10 MM 1000MM Long |
| 100a | 705601020 | Oil Tank |
| 100b | 705601019 | Oil Housing Hose |
| 105 | 414036300 | Grommet |
| 110 | 293900112 | Bushing |
| 115 | 207652044 | Hex.Flange Screw M5 X 20 |
| 120 | 224060201 | Flat Washer |
| 125 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 139 | 210261640 | Hex. Flange Screw M6 X 16 |
| 140 | 390406500 | Pop Rivet 3/16" |
| 150 | 705601251 | Brake Switch |
| 160b1 | 705601016 | Pin Set |
| 160b2 | 705601017 | Bleeding Screw |
| 160b3 | 705601018 | Retaining Spring |
| 160b4 | 705601014 | RH Organic Brake Pad Kit |
| 160c | 715900249 | RH Metallic Brake Pad Kit |
| 175b1 | 705601016 | Pin Set |
| 175b2 | 705601017 | Bleeding Screw |
| 175b3 | 705601018 | Retaining Spring |
| 175b4 | 705601015 | LH Organic Brake Pad Kit |
| 175c | 715900248 | LH Metallic Brake Pad Kit |
| 180 | 207502046 | Hex. Flange Screw M10 X 20 |
| 250 | 705602163 | Deep Black, Brake Pedal This part replaces 705601155. |
| 260 | 705600792 | Brake Pedal Spring |
| 265 | 207662044 | Hex. Flange Screw M6 X 20 |
| 275 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 300 | 293300144 | O-Ring |
| 350 | 250000513 | Shoulder Screw M10 |
| 351 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 360 | 207685544 | Hex. Flange Screw M8 X 55 |
| 370 | 233281414 | Hex. Flange Elastic Nut M8 |
| 375 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 380 | 705601997 | Disc Brake This part replaces 705600999. |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 400 | 705601997 | Disc Brake This part replaces 705600999. |
| 440 | 207502546 | Hex. Flange Screw M10 X 25 |
| 500 | 705202000 | Brake Pedal Bracket |
| 501 | 207782044 | Carriage Bolt, M8 X 20 |
| 502 | 233281414 | Hex. Flange Elastic Nut M8 |
| 510 | 705602016 | Front Hose Guard |
| 511 | 250000724 | Torx Screw M5 X 20 |
| 512 | 250200025 | Washer M5 |
| 513 | 250000958 | Panel Nut M5 X 0.8 |
| 514 | 705601048 | LH Hose Bracket |
| 515 | 705601049 | RH Hose Bracket |
| 524 | 250000755 | Torx Screw M6 X 16 |
| 525 | 390402400 | Pop Rivet 3/16" |
| 530 | 705600983 | Front Hose Bracket |
| 535 | 250100198 | Panel Nut M6 X 1.0 |
| 536 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
