| Ref | Part Number | Description |
|---|
| 1 |
34R-2183-A |
COVER ASSY, Fuel pump |
| 2 |
35R-342-A |
DIAPHRAGM ASSEMBLY |
| 3 |
05R-369 |
SCR & L'WASHER COV |
| 4 |
38R-569 |
DIAPH RET SPRING |
| 5 |
05R-552 |
SCREW, Fuel bowl |
| 6 |
08R-657 |
GASKET, Fuel bowl screw |
| 7 |
34R-6695-A |
FUEL BOWL & PLUGS ASSY, Primary |
| 8 |
8R-1185 |
GASKET, Fitting |
| 9 |
19R-517-A |
FUEL INLET FITTING ASSY |
| 10 |
059R-96 |
BAFFLE PLATE |
| 11 |
38R-757 |
FLOAT SPRING, Pri & sce |
| 12 |
36R-169 |
FLOAT RETAINER, Primary & secondary |
| 13 |
12R-5600A |
THROTTLE BODY & SHAFT ASSY, Complete |
| 14 |
63R-740 |
OPERATING LEVER |
| 15 |
38R-782 |
SCREW, Spring lever |
| 16 |
05R-595 |
SCREW, Lever |
| 17 |
19R-189 |
FITTING, Operating lever screw |
| 18 |
36R-574 |
RETAINER, Pump lever |
| 19 |
05R-635 |
SCREW, Throttle plate |
| 20 |
09R-238 |
THROTTLE PLATE, Pri |
| 21 |
09R-118 |
THROT PLATE,Sec |
| 22 |
41R-330 |
PUMP CAM |
| 23 |
05R-682 |
SCREW, Pump cam |
| 24 |
48R-183 |
RTN,Throt conn rod |
| 25 |
43R-426 |
ROD, Throttle connecting |
| 26 |
05R-155 |
SCREW, Throttle stop |
| 27 |
38R-110 |
SPR,Throt stop scr |
| 28 |
63R-354A |
DIAPH LEVER ASSY |
| 29 |
05R-584 |
SCR & L'WASHER |
| 30 |
4R-1054 |
FAST IDLE PICK-UP LEVER |
| 31 |
015R-40 |
IDLE ADJ NEEDLE |
| 32 |
27R-152 |
SEAL, Idle needle |
| 33 |
22R-40-64 |
MAIN JET, Primary |
| 34 |
059R-37 |
BAFFLE PLATE |
| 35 |
8R-1570 |
GASKET, Fuel bowl |
| 36 |
05R-765 |
LOCKSCREW, Fuel valve seat |
| 37 |
08R-777 |
GASKET, Screw, fuel valve seat, pri & sec |
| 38 |
39R-160 |
NUT, Fuel valve adjustment |
| 39 |
08R-776 |
GASKET, Fuel valve adjusting nut |
| 40 |
18R-96-A |
FUEL VALVE & SEAT |
| 42 |
16R-260-4-A |
FLOAT & HINGE ASSY |
| 43 |
07R-225 |
FUEL LEVER CHECK PLUG |
| 44 |
08R-540 |
GASKET, Fuel level check plug |
| 45 |
08R-669 |
GASKET, Power valve |
| 46 |
25R-237-50-A |
POWER VALVE |
| 47 |
8R-1572 |
GASKET, Primary metering body |
| 48 |
08R-713 |
GASKET, Throttle body |
| 49 |
34R-1993 |
PLATE, Sec metering body |
| 50 |
8R-1352 |
GASKET, Sec metering body |
| 51 |
057R-60 |
FILTER SCREEN |
| 52 |
08R-726 |
GASKET, Sec metering body plate |
| 53 |
14R-370 |
FUEL LINE TUBING |
| 54 |
34R-5987-A |
FUEL BOWL & PLUG ASSY, Secondary |
| 55 |
05R-691 |
SCR,Sec mtr body |
| 56 |
02R-388 |
CHOKE PLATE |
| 57 |
23R-258 |
VALVE, Pump discharge needle |
| 58 |
21R-572-25 |
NOZ,Pump disch |
| 59 |
08R-844 |
GASKET |
| 60 |
05R-854 |
SCREW |
| 61 |
05R-645 |
SCREW, Secondary fuel bowl |
| 62 |
05R-370 |
SCREW, Secondary diaphragm cover |
| 63 |
34R-1334 |
DIAPHRAGM COVER |
| 64 |
38R-597 |
SPRING, Sec diaphragm |
| 65 |
35R-235-A |
SEC DIAPH |
| 66 |
36R-164 |
RETAINER, Secondary diaphragm link |
| 67 |
048R-31 |
RETAINER, Choke rod |
| 68 |
49R-850-A |
SECONDARY DIAPHRAGM HSG.& REST ASSY |
| 69 |
05R-568 |
SCR,Sec.diaph hsg |
| 70 |
3R-510-A |
CHOKE SHAFT |
| 71 |
05R-4 |
SCREW, Choke plate |
| 72 |
24R-238 |
SEAL,Choke rod |
| 73 |
43R-203 |
CHOKE ROD |
| 74 |
08R-659 |
BASKET, Choke housing |
| 75 |
4R-955-A |
SHAFT & LEVER ASSY, Choke housing |
| 76 |
41R-244-A |
GASKET IDLE CAM ASSY |
| 77 |
34R-5832-A |
CHOKE HOUSING & PLUG ASSY |
| 78 |
05R-569 |
CHOKE HOUSING SCREW & LOCK WASHER |
| 79 |
4R-960A |
THERMO LEVER LINK & PISTON ASSY |
| 80 |
47R-294-A |
HEATER COIL, Thermostat assy |
| 81 |
40R-108 |
SPACER, Choke thermostat lever |
| 82 |
46R-248 |
L'KWASHER,Choke sft |
| 83 |
039R-5 |
NUT, Choke shaft |
| 84 |
08R-657 |
GASKET, Fuel bowl screw |
| 85 |
05R-16 |
SCR,Thermo hsg |
| 86 |
08R-686 |
GASKET, Thermostat housing |
| 87 |
49R-328 |
CLAMP, Thermostat housing |
| 88 |
34R-7248-A |
PRIMARY METERING BODY & PLUG ASSY |
| 89 |
05R-567 |
SCR & L'WASHER,Throttle body |
| 0980983 |
0980983 |

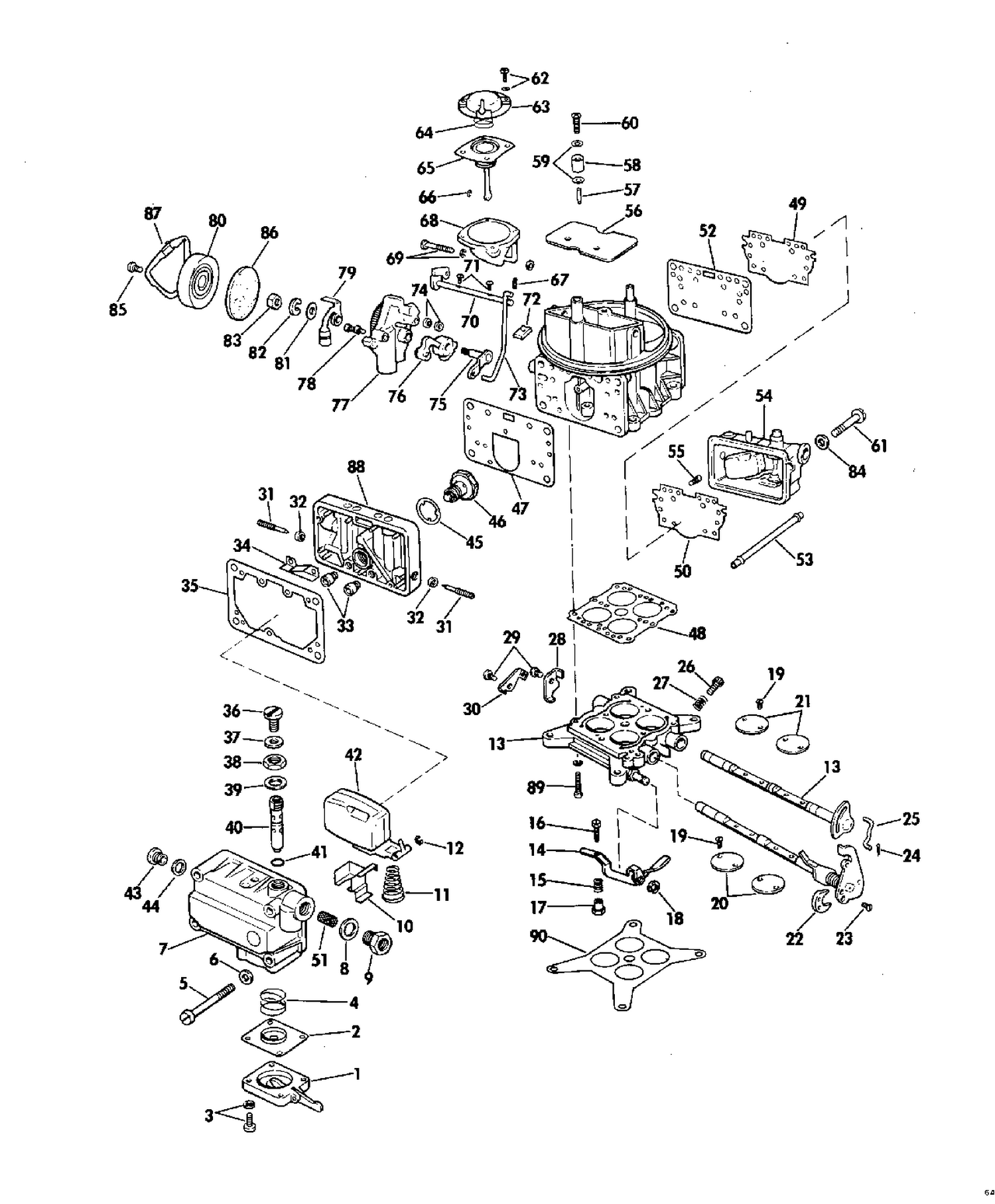

CARBURETOR ASSY |
