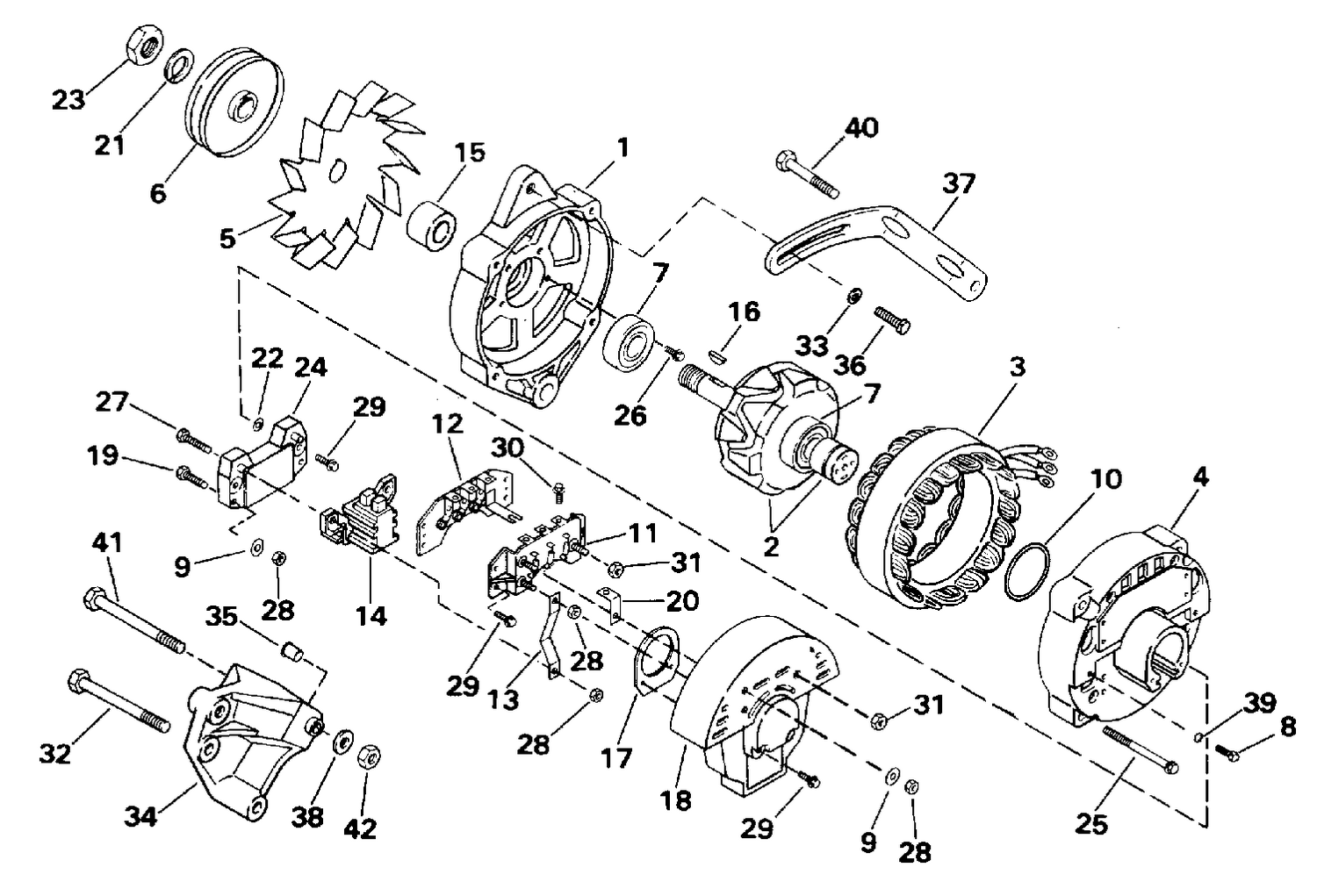

| Ref | Part Number | Description |
|---|
| 1 |
3852647 |
HOUSING, Front This part replaces 0912919. |
| 2 |
3854226 |
ROTOR ASSY. This part replaces 0988036. |
| 3 |
3854225 |
STATOR ASSY. This part replaces 0988035. |
| 4 |
3852646 |
HOUSING, Rear This part replaces 0912918. |
| 5 |
3853756 |
FAN This part replaces 0916329. |
| 6 |
3853755 |
PULLEY This part replaces 0916328. |
| 7 |
3852643 |
BEARING, Front & rear This part replaces 0912915. |
| 8 |
3852736 |
SCREW, Alternator ground This part replaces 0913580. |
| 9 |
3852626 |
WASHER This part replaces 0912895. |
| 10 |
3852642 |
RETAINER, Rear bearing This part replaces 0912914. |
| 11 |
3852641 |
DIODE FIELD This part replaces 0912913. |
| 12 |
3853836 |
DIODE BRIDGE This part replaces 0985027. |
| 13 |
3852640 |
STRAP, B+ This part replaces 0912912. |
| 14 |
3853835 |
BRUSH ASSEMBLY This part replaces 0985026. |
| 15 |
3852639 |
SPACER, Fan This part replaces 0912911. |
| 16 |
3852638 |
KEY, Woodruff This part replaces 0912910. |
| 17 |
3852637 |
FELT GASKET This part replaces 0912909. |
| 18 |
3853834 |
COVER ASSEMBLY This part replaces 0985025. |
| 19 |
3852737 |
SCREW, Terminal This part replaces 0913581. |
| 20 |
3852635 |
STRAP, AC Tap This part replaces 0912907. |
| 21 |
3852625 |
LOCK WASHER, Pulley This part replaces 0912894. |
| 22 |
3852732 |
WASHER, Insulator This part replaces 0913576. |
| 23 |
3852630 |
NUT, Pulley This part replaces 0912902. |
| 24 |
3853757 |
REGULATOR, Voltage This part replaces 0916330. |
| 25 |
3852634 |
BOLT, Through This part replaces 0912906. |
| 26 |
3852734 |
SCREW, Front housing This part replaces 0913578. |
| 27 |
3852629 |
SCREW, Regulator This part replaces 0912900. |
| 28 |
3852632 |
LOCKNUT This part replaces 0912904. |
| 29 |
3852735 |
SCREW, Diode field This part replaces 0913579. |
| 30 |
3852628 |
SCREW, Diode field This part replaces 0912898. |
| 31 |
3852633 |
NUT This part replaces 0912905. |
| 32 |
3853395 |
SCREW, Bracket This part replaces 0915004. |
| 34 |
0987775 |
BRACKET, Alternator |
| 35 |
3852740 |
BUSHING, Alternator This part replaces 0913589. |
| 36 |
3853399 |
SCREW, Brace to alternator This part replaces 0915008. |
| 37 |
3852703 |
BRACE, Alternator This part replaces 0913455. |
| 40 |
3853557 |
SCREW, Brace to alterntr bracket This part replaces 0915790. |
| 41 |
3853367 |
SCREW Bracket This part replaces 0914901. |
| 0987774 |
3857561 |
Alternator This part replaces 0987774. |
