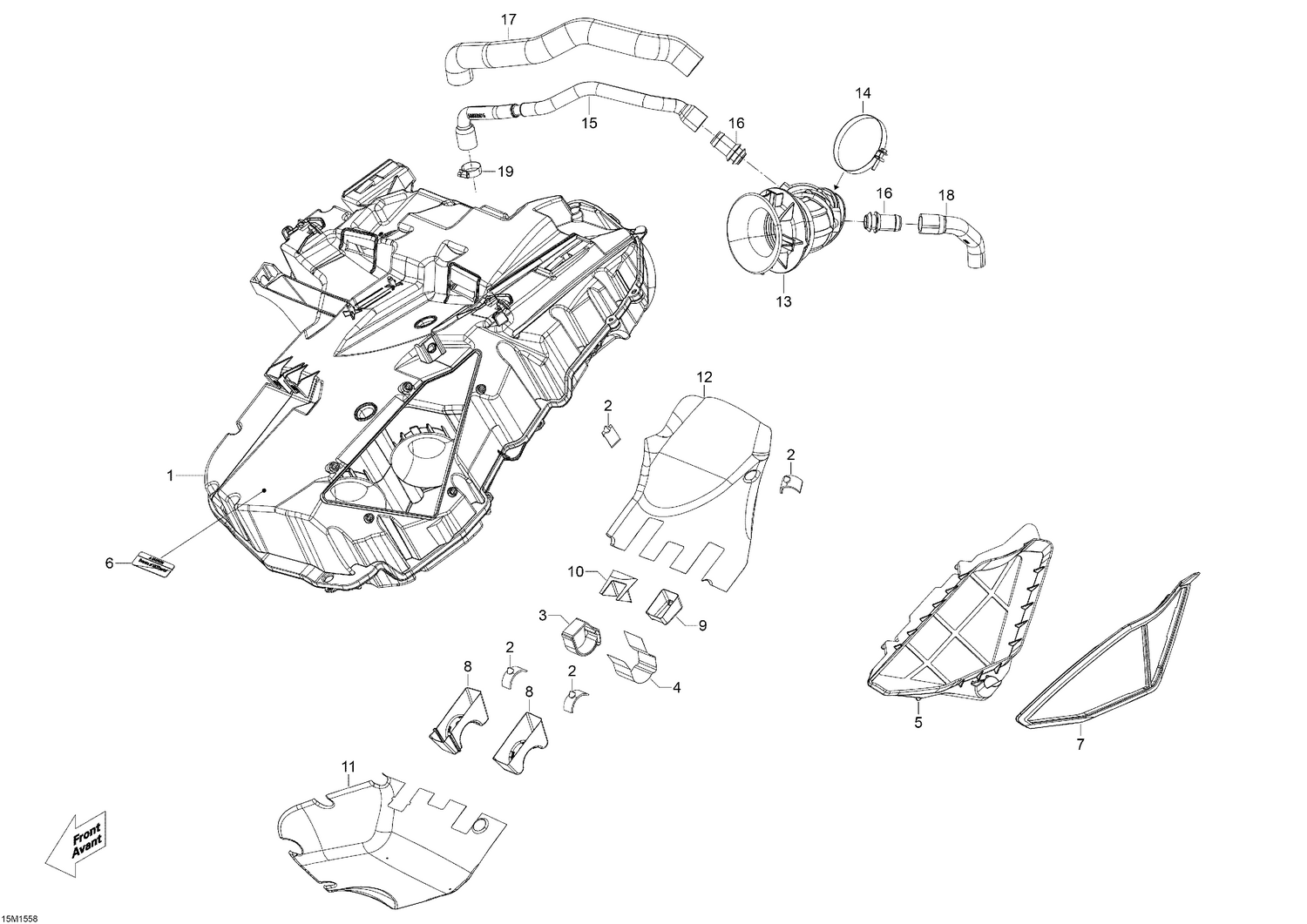

02- Air Intake System _15M1558
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 508000789 | Secondary Chamber Ass'y |
| 2 | 508000537 | Stopper |
| 3 | 508000820 | Velcro Strip This part replaces 508000532. |
| 4 | 44110 | Aluminum foil |
| 5 | 508001020 | Adaptor This part replaces 508000756. |
| 6 | 516004651 | Caution Label, Air Intake |
| 7 | 508000609 | Air Filter |
| 8 | 508000723 | Heat Shield |
| 9 | 508000725 | Heat Shield |
| 10 | 508000636 | HEAT SHIELD - Call your local BRP dealership |
| 11 | 508000726 | Heat Shield |
| 12 | 508000627 | Heat Shield |
| 13 | 508000549 | INTAKE HOSE - Call your local BRP dealership |
| 14 | 508000346 | Gemi Clamp |
| 15 | 508000615 | VENT HOSE - Call your local BRP dealership |
| 16 | 273000234 | Breather Valve |
| 17 | 508000648 | Tube Isolator |
| 18 | 508000616 | FORMED HOSE - Call your local BRP dealership |
