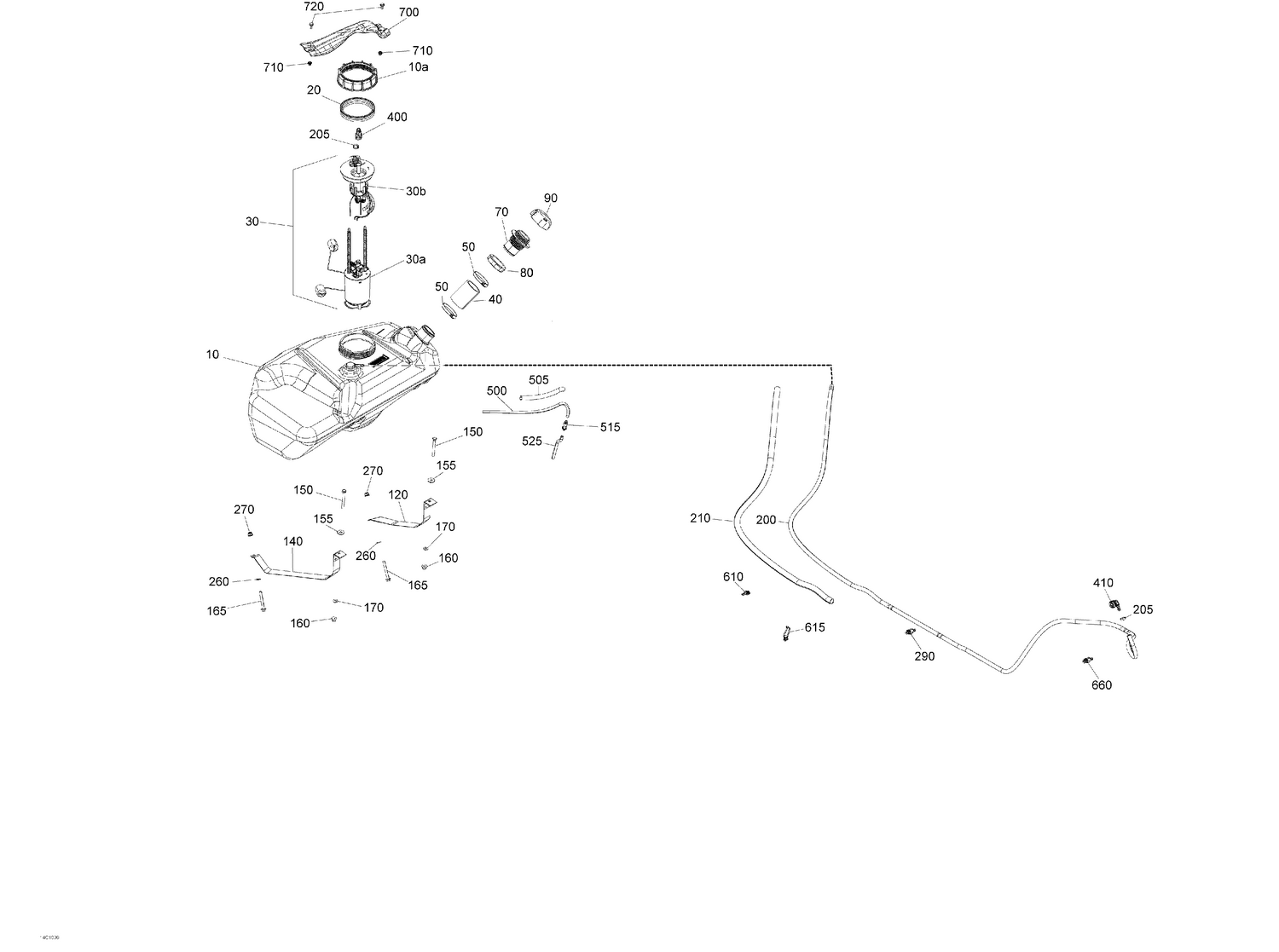

02- Fuel Package XMR
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 250100062 | Special Nut M130 |
| 20 | 293250173 | Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 40 | 709000748 | Filler Neck |
| 50 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 211100012 | Filler Neck Nut, Fuel |
| 90 | 709000868 | Fuel Cap |
| 120 | 709000910 | Fuel Tank Strap |
| 140 | 709000911 | Fuel Tank Strap |
| 150 | 207187544 | Hex. Screw, M8 X 75 |
| 155 | 234082410 | Flat Washer 8 mm |
| 160 | 233281414 | Hex. Flange Elastic Nut M8 |
| 165 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 170 | 234081410 | Flat Washer 8 mm |
| 200 | 219704440 | Was 709000163 Fuel Line |
| 205 | 293650047 | Crimp Clamp, 15.3-706R |
| 210 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 260 | 234081410 | Flat Washer 8 mm |
| 270 | 233281414 | Hex. Flange Elastic Nut M8 |
| 400 | 275500921 | Quick Disconnect |
| 410 | 293710105 | Elbow Fitting 90° |
| 500 | 219704410 | Polyurethane Hose 10000Mm Long |
| 505 | 219704407 | Tubing 10 MM 1000MM Long |
| 515 | 709000330 | Filter |
| 525 | 219704410 | Polyurethane Hose 10000Mm Long |
| 700 | 707900594 | Connector Protector |
| 710 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 720 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 988 | 293750002 | Tie Wrap 142 mm |
| 988 | 414115200 | Tie-Rap 180 mm |
| 988 | 710003168 | Dart Tie Rap 200MM |
