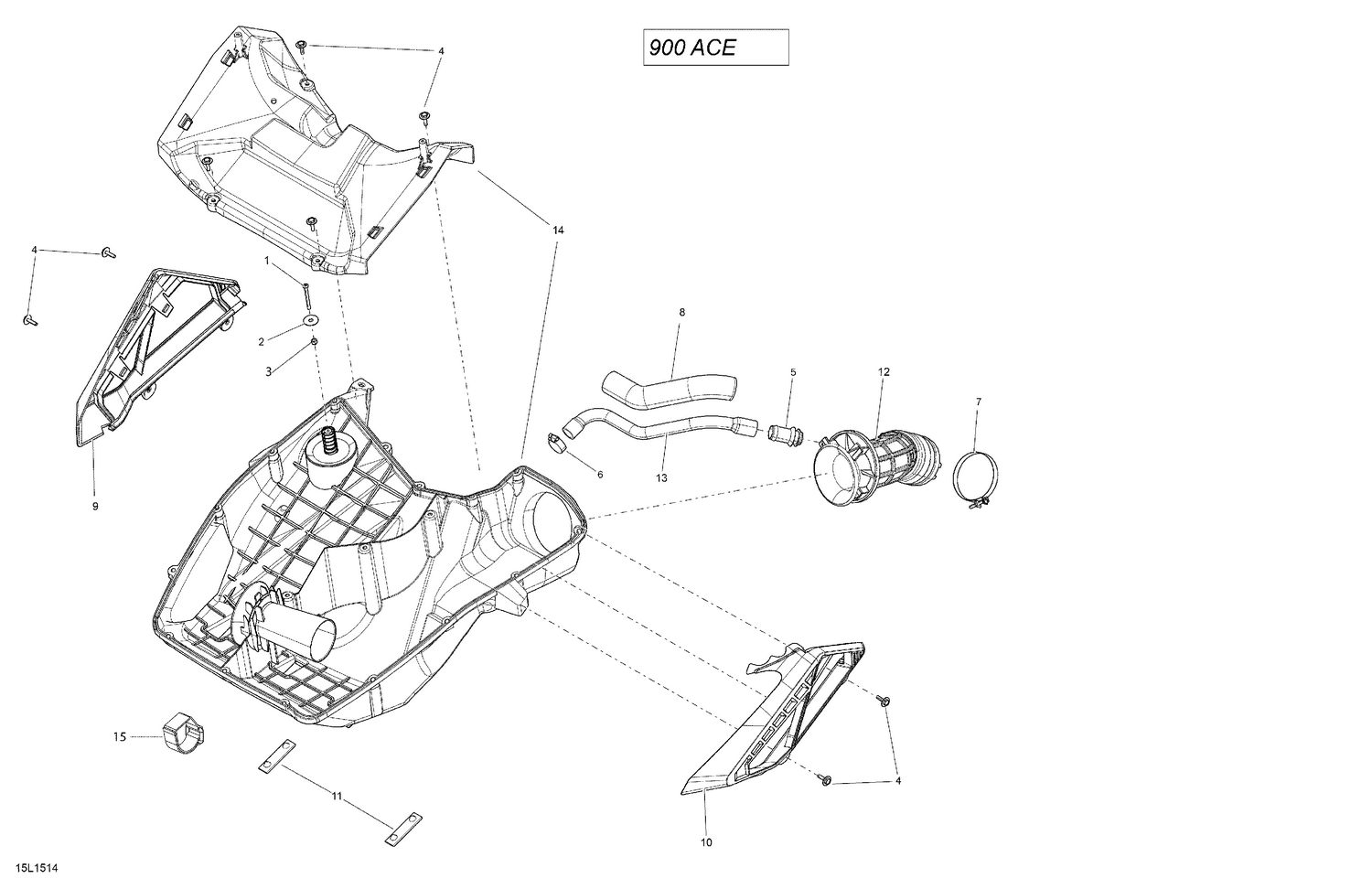

02- Air Intake System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205444086 | Socket Head Screw M4 X 40 |
| 2 | 224060201 | Flat Washer |
| 3 | 232541414 | Elastic Stop Nut M4 |
| 4 | 250000725 | Screw M4 X 16 |
| 5 | 273000234 | Breather |
| 6 | 293650172 | Tridon Gear Clamp |
| 7 | 293650229 | Gemi Clamp |
| 8 | 508000648 | Tube Isolator |
| 9 | 508000730 | RH Air Filter |
| 10 | 508000731 | LH Air Filter |
| 11 | 508000744 | Stopper |
| 12 | 508000827 | Intake Hose This part replaces 508000745. |
| 13 | 508000746 | Hose Vent |
| 14 | 508000761 | Secondary Chamber Ass'y |
