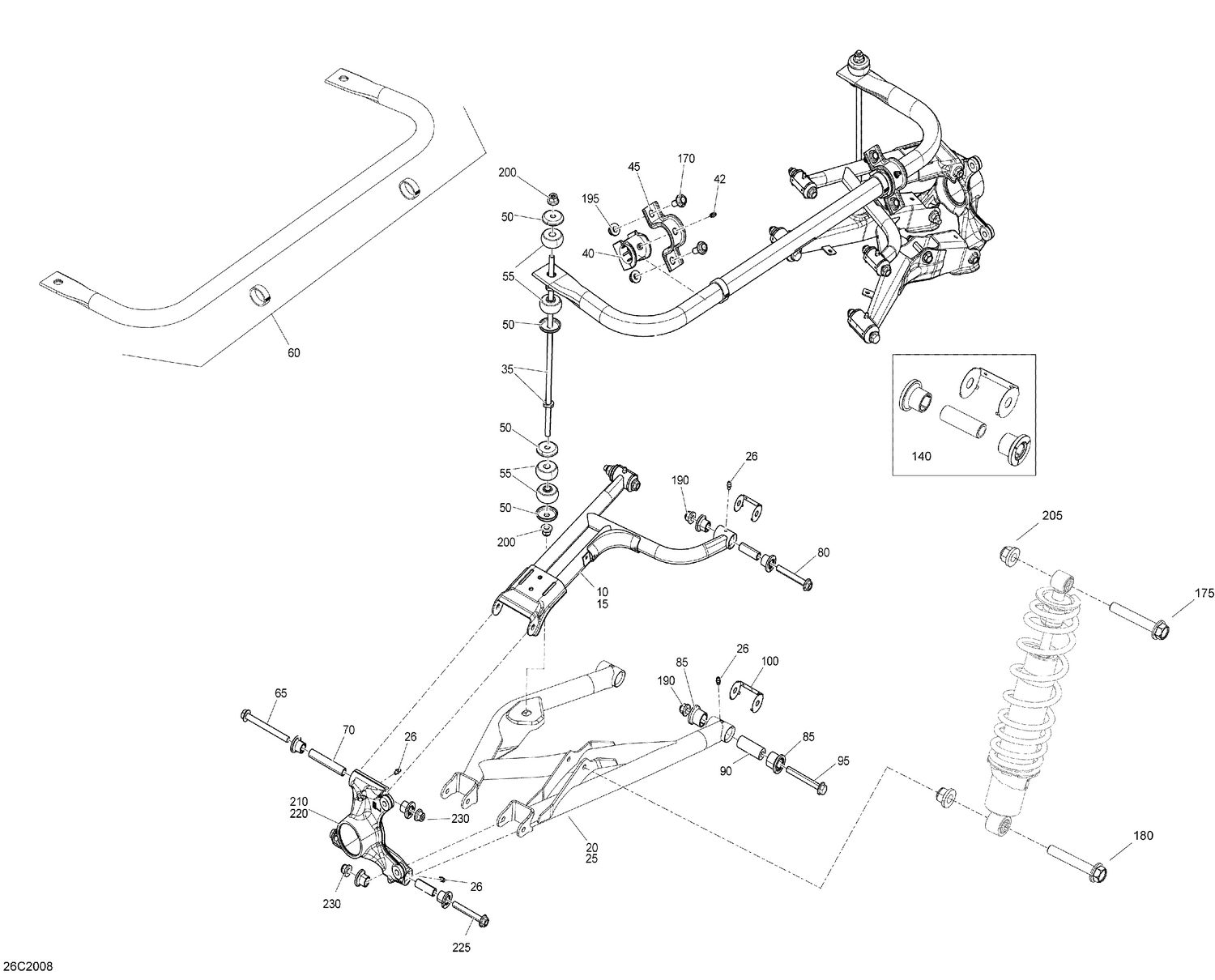

| Ref | Part Number | Description |
|---|
| 10 |
706004312 |
Deep Black, LH Upper Rear Suspension Arm This part replaces 706002773. |
| 15 |
706004313 |
Deep Black, RH Upper Rear Suspension Arm This part replaces 706002774. |
| 20 |
706004577 |
Deep Black, LH Lower Suspension Arm This part replaces 706002775. |
| 25 |
706004578 |
Deep Black, RH Lower Suspension Arm This part replaces 706002776. |
| 26 |
408200700 |
Grease Fitting |
| 35 |
706001898 |
Torsion Bar Link |
| 40 |
706004301 |
Stabilizer Bar Bushing This part replaces 706001896. |
| 42 |
408200700 |
Grease Fitting |
| 45 |
706002592 |
Clamp |
| 50 |
706005431 |
Stamped Washer This part replaces 706002027. |
| 55 |
706002028 |
Linkage Bushing |
| 60 |
706002813 |
Swaybar Ass'y |
| 65 |
230600046 |
Hex Flange Screw DIN.6921 - Call your local BRP dealership |
| 70 |
706202197 |
Upper Bushing |
| 80 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 85 |
706204409 |
Suspension Arm Bushing This part replaces 706201659. |
| 90 |
706201590 |
Sleeve |
| 95 |
207608046 |
Hex Flange Screw M10 X 80 |
| 100 |
706201660 |
Wear Plate |
| 140 |
703500875 |
Suspension Arm Bushing Kit |
| 170 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 175 |
207606046 |
Hex. Flange Screw M10 X 6 |
| 180 |
207606046 |
Hex. Flange Screw M10 X 6 |
| 190 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 195 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 200 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 205 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 210 |
706002809 |
Rear Left Machined Knuckle |
| 220 |
706002811 |
Rear Right Machined Knuckle |
| 225 |
207607046 |
Hex. Flange Screw M10 X 70 |
